System Description 21

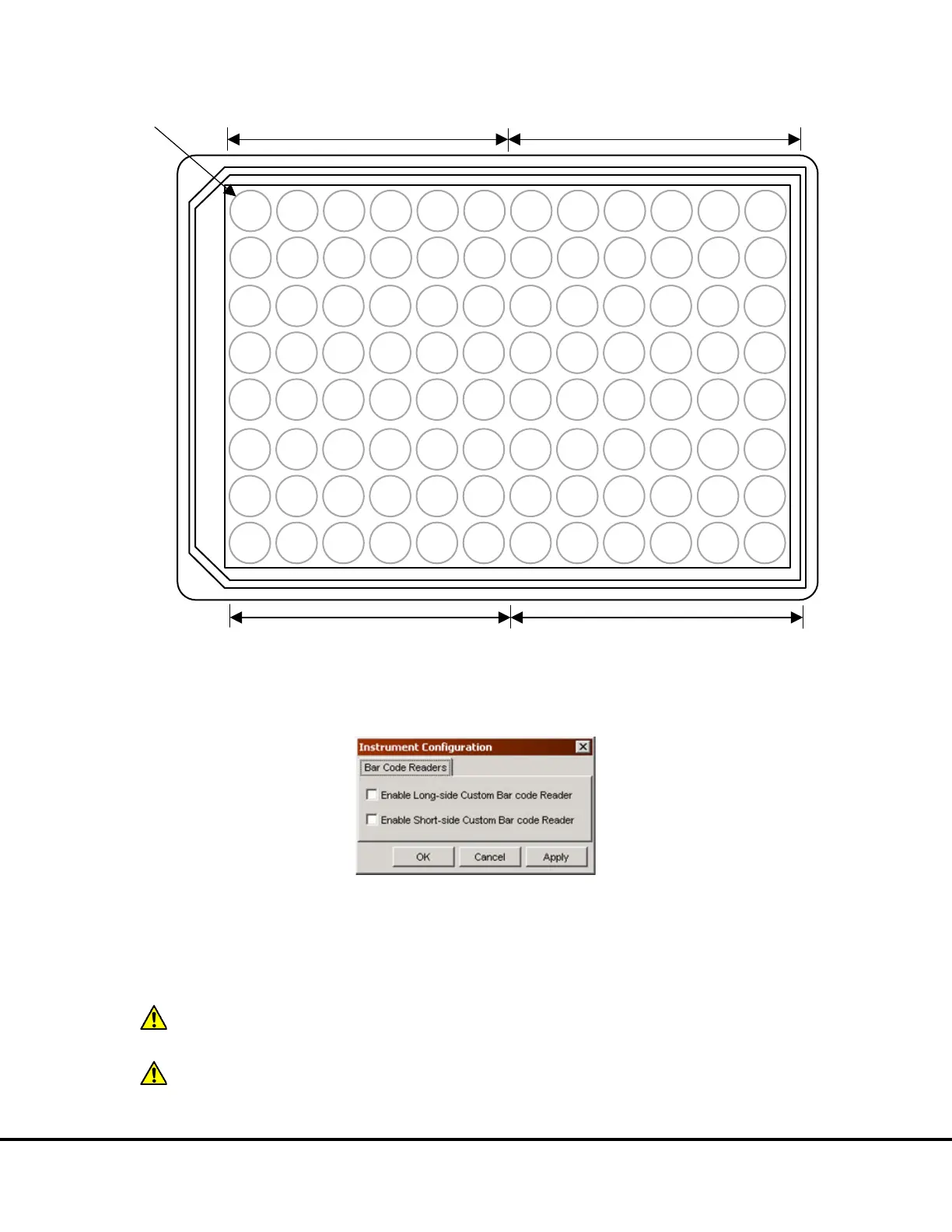

Figure 3:3 MSD and custom barcode label locations
MSD Barcode Custom Barcode
Custom Barcode MSD Barcode
A1
To enable custom barcode reading, open the instrument reader window, navigate to Tools Instrument Configuration, and select Enable
Long-side Custom Bar code Reader.
Figure 3:4 Custom Barcode Reader Selection Dialog
If you have questions concerning the use of custom barcodes on MSD plates, please contact MSD
Scientific Support.
3.5.4 Integrated Assay Plate Stacker
The QuickPlex SQ 120 instrument includes an integrated assay plate stacker for loading and unloading plates. The stacker can process
up to 5 plates at a time.
CAUTION: The maximum capacity of the input and output stacks is 5 plates. Do not load more than 5 plates into the input
stack (right side) at a time and do not allow more than 5 plates to accumulate in the output stack (left side).
WARNING: The stacker contains components that can move at any time. Even though the door automatically retracts if an
obstruction is detected, users should never place their fingers into the input or output stacks for any reason unless the instrument
is completely powered off.
To Next Page
