2-12
MS-6702E ATX Mainboard

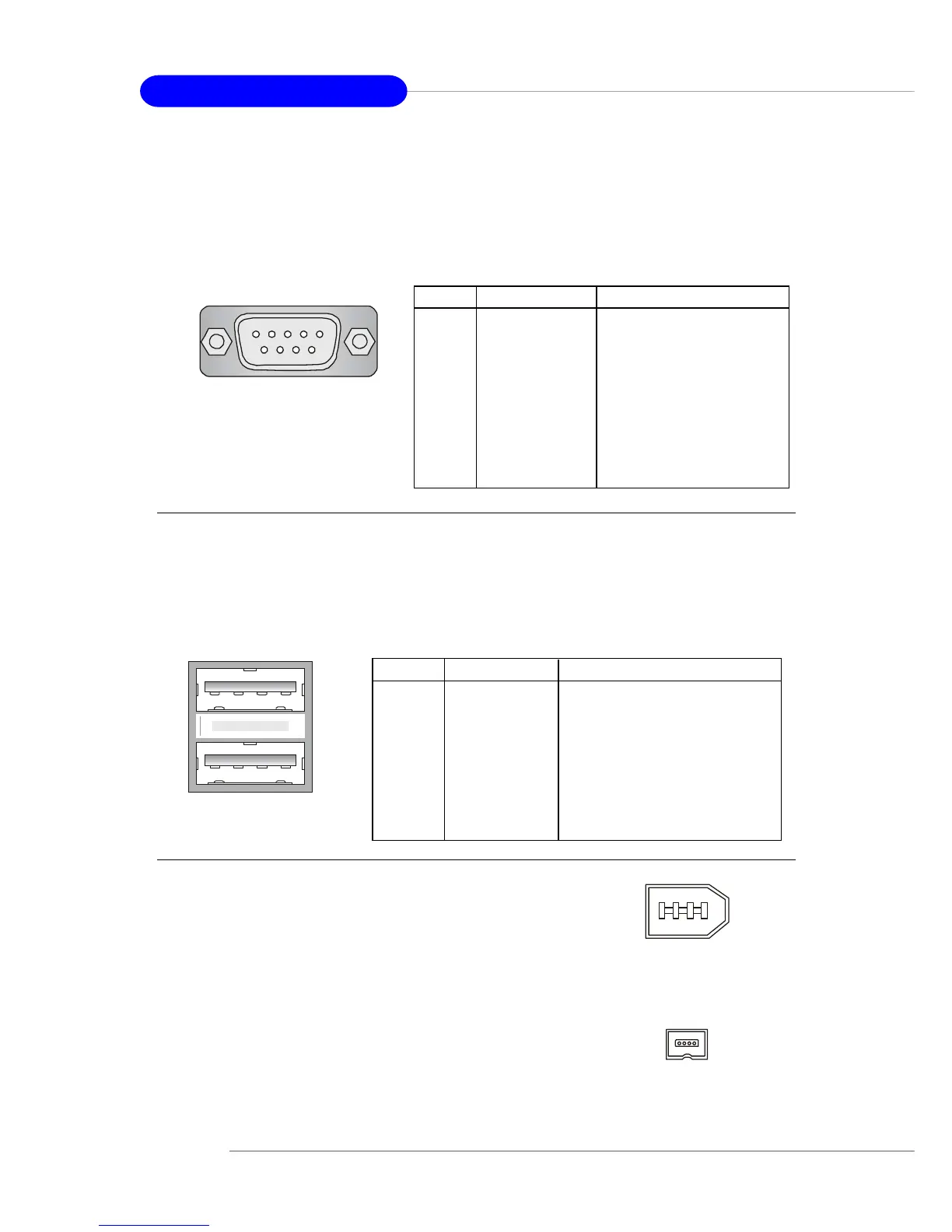

USB Connectors
The mainboard provides two OHCI (Open Host Controller Interface) Universal Serial
Bus roots for attaching USB devices such as keyboard, mouse or other USB-com-
patible devices. You can plug the USB device directly into the connector.
USB Ports
1 2 3 4
5 6 7 8
PIN SIGNAL DESCRIPTION
1 VCC +5V
2 -Data 0 Negative Data Channel 0
3 +Data0 Positive Data Channel 0
4 GND Ground
5 VCC +5V
6 -Data 1 Negative Data Channel 1
7 +Data 1 Positive Data Channel 1
8 GND Ground
USB Port Description
Serial Port Connector
The mainboard offers one 9-pin male DIN connector as the serial port. The port is a
16550A high speed communication port that sends/receives 16 bytes FIFOs. You
can attach a serial mouse or other serial devices directly to the connector.
PIN SIGNAL DESCRIPTION
1 DCD Data Carry Detect
2 SIN Serial In or Receive Data
3 SOUT Serial Out or Transmit Data
4 DTR Data Terminal Ready)
5 GND Ground
6 DSR Data Set Ready
7 RTS Request To Send
8 CTS Clear To Send
9 RI Ring Indicate
Pin Definition
9-Pin Male DIN Connector
1 2 3 4 5
6 7 8 9
IEEE1394 Ports (Optional)
The mainboard provides two IEEE 1394 ports in the
rear I/O. The mini IEEE1394 port is designed for you to
connect the IEEE1394 device with external power. The
standard IEEE1394 port connects to IEEE1394 devices
without external power. The IEEE1394 high-speed
serial bus components provide the enhanced PC con-
nectivity for a wide range of devices, including con-
sumer electronics audio/video (A/V) appliances, stor-
age peripherals, other PCs, and portable devices.
IEEE1394 Port
(Mini)
IEEE1394 Port
(Standard)
To Next Page
