3-6
MS-6702E ATX Mainboard

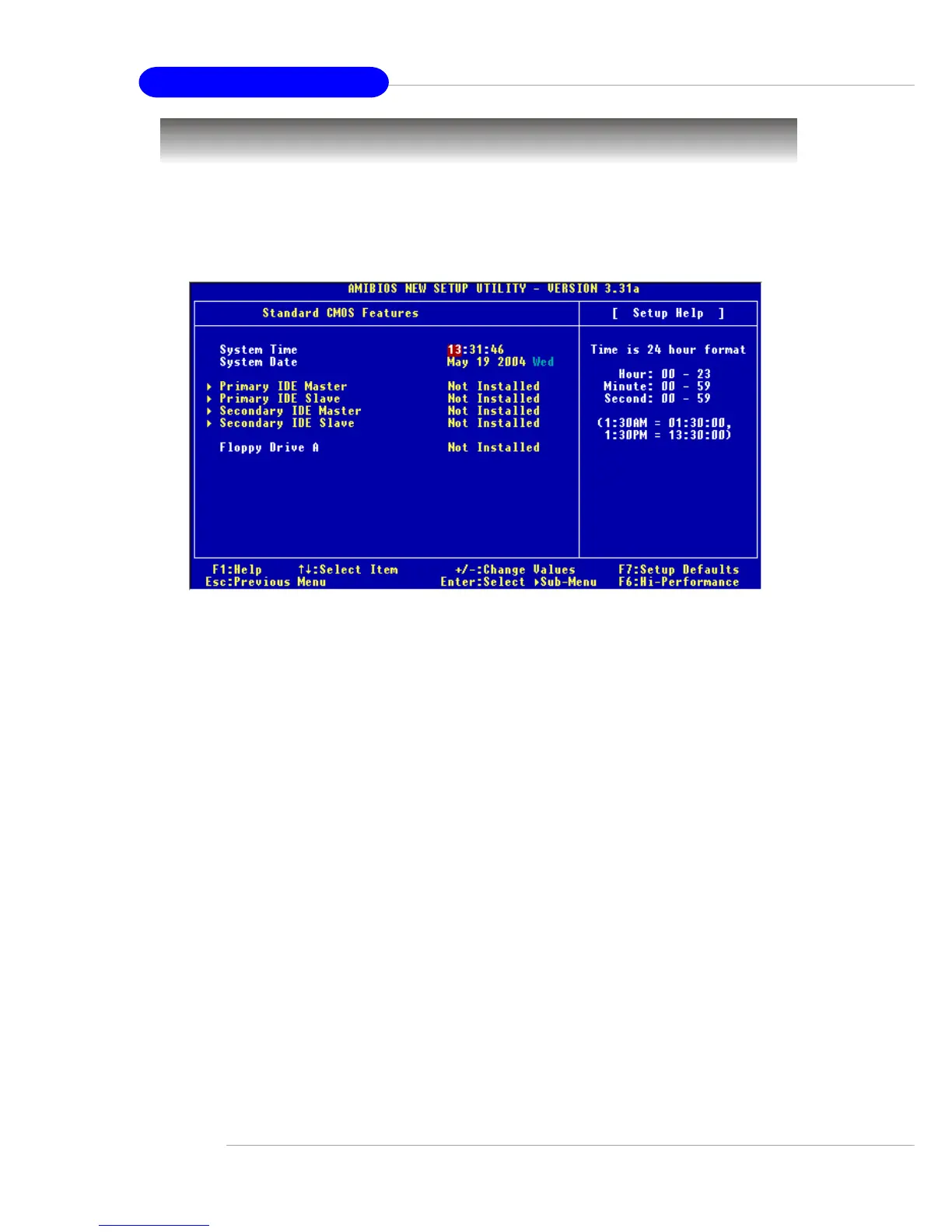

Standard CMOS Features
The items inside Standard CMOS Features menu are divided into 9 categories. Each
category includes none, one or more setup items. Use the arrow keys to highlight the
item you want to modify and use the <PgUp> or <PgDn> keys to switch to the value
you prefer.
System Time
This allows you to set the system time that you want (usually the current time). The
time format is <hour> <minute> <second>.
System Date
This allows you to set the system to the date that you want (usually the current date).
The format is <month> <date> <year><day>.
month The month from Jan. through Dec.
date The date from 1 to 31 can be keyed by numeric
function keys.
year The year can be adjusted by users.
day Day of the week, from Sun to Sat, determined by
BIOS. Read-only.
Primary/Secondary IDE Master/Slave
Press PgUp/<+> or PgDn/<-> to select the hard disk drive type. The specification of
hard disk drive will show up on the right hand according to your selection.
[Type] Select how to define the HDD parameters
[Cylinders] Enter cylinder number
[Heads] Enter head number
[Write Precompensation] Enter write precomp cylinder
[Sectors] Enter sector number
[Maximum Capacity] Read the maximal HDD capacity
