3-18
MS-6702E ATX Mainboard

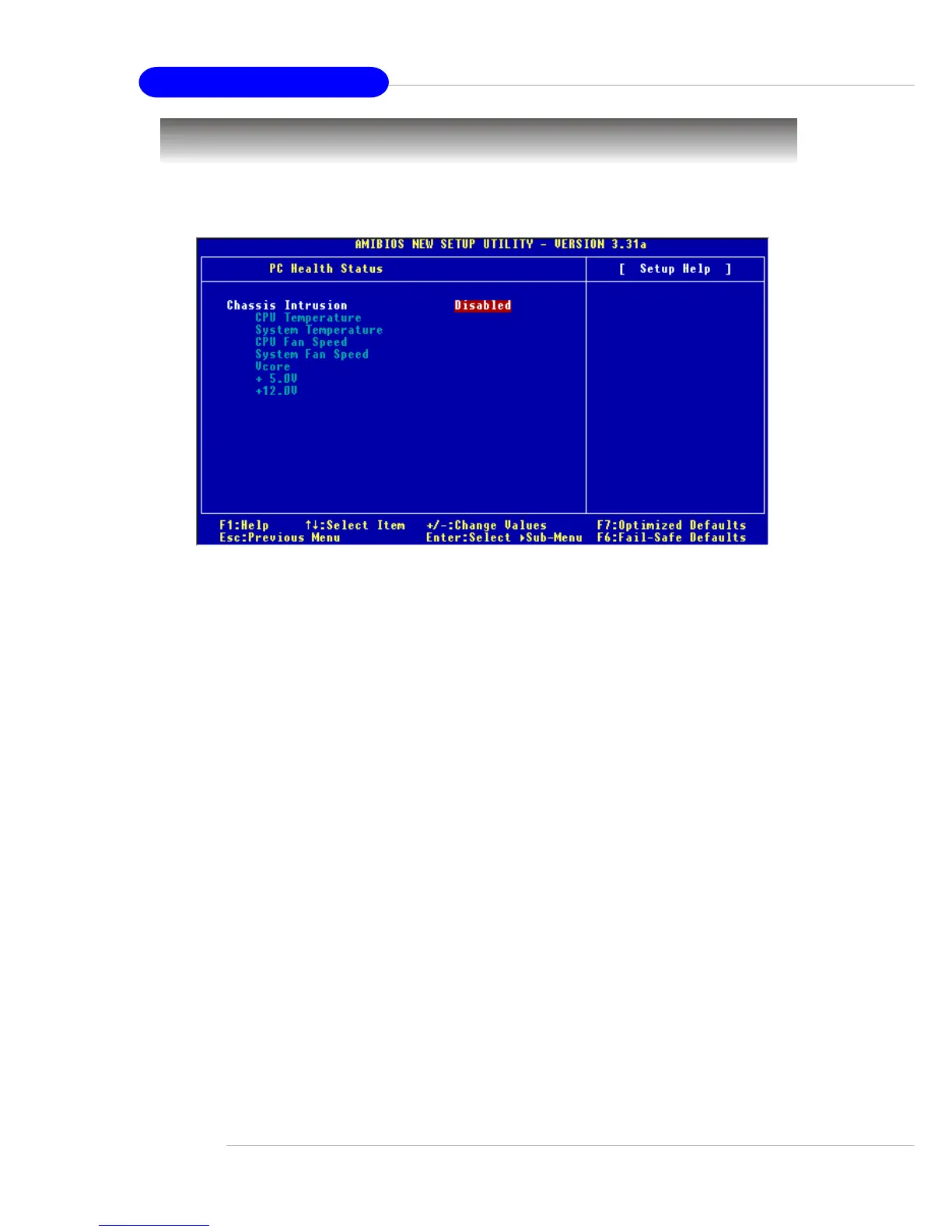

PC Health Status
This section shows the status of your CPU, fan, overall system status, etc. Monitor
function is available only if there is hardware monitoring mechanism onboard.
Chassis Intrusion
The field enables or disables the feature of recording the chassis intrusion status
and issuing a warning message if the chassis is once opened. To clear the warning
message, set the field to [Reset]. The setting of the field will automatically return to
[Enabled] later. Settings: [Enabled], [Reset], [Disabled].
CPU Temperature, System Temperature, CPU Fan Speed, System
Fan Speed, Vcore, +5.0V, +12.0V
These items display the current status of all of the monitored hardware de-
vices/components such as CPU voltages, temperatures and all fans’ speeds.
