VIA VT8237 Serial A
T
A RAID Introduction
5-15
It means that VT8237 SA
T
A RAID only has the feature of monitoring the status of RAID
0 or RAID 1.

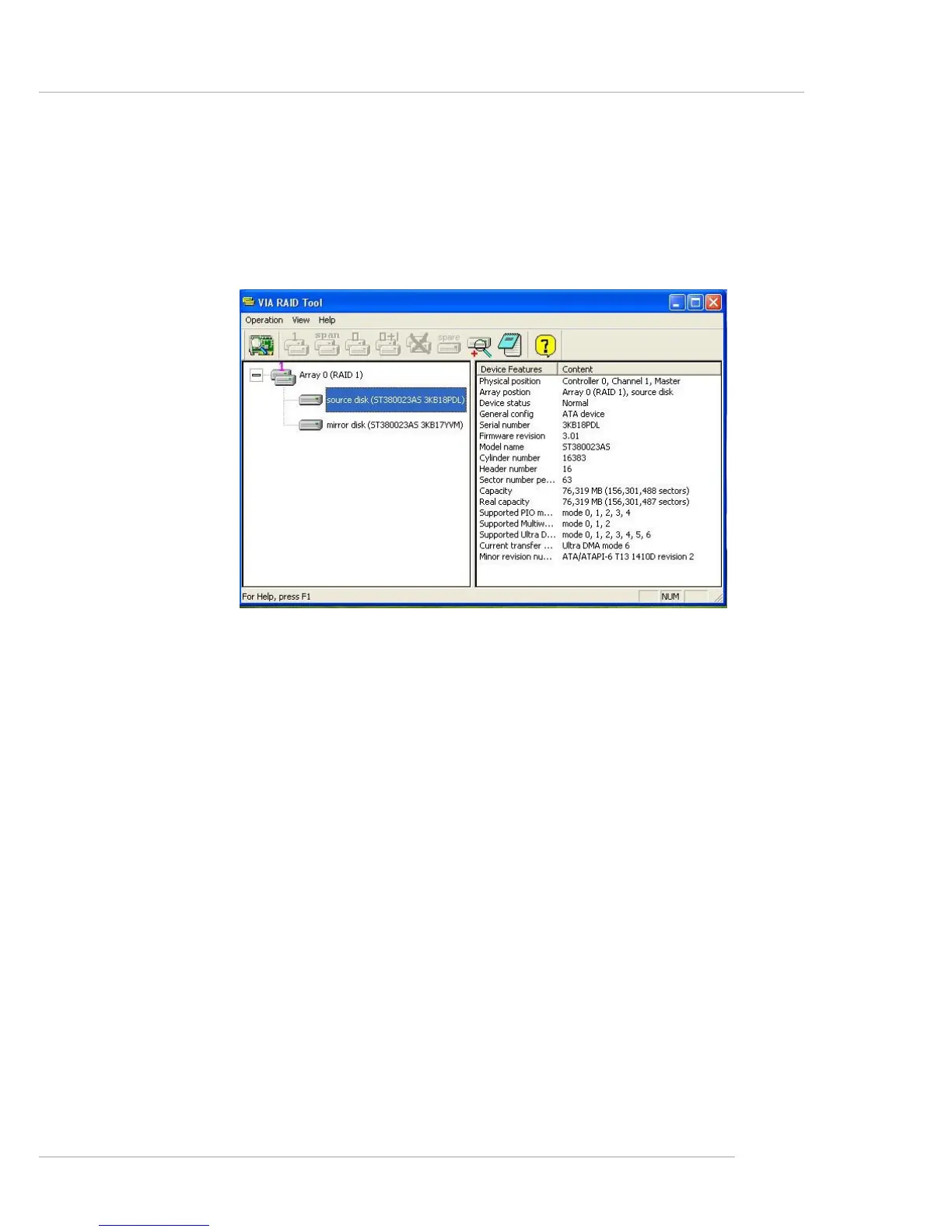

For instance, Click on the plus (+) symbol next to Array 0---RAID 1 to see the details of
each disk.
97
