Hardaware Setup
2-13

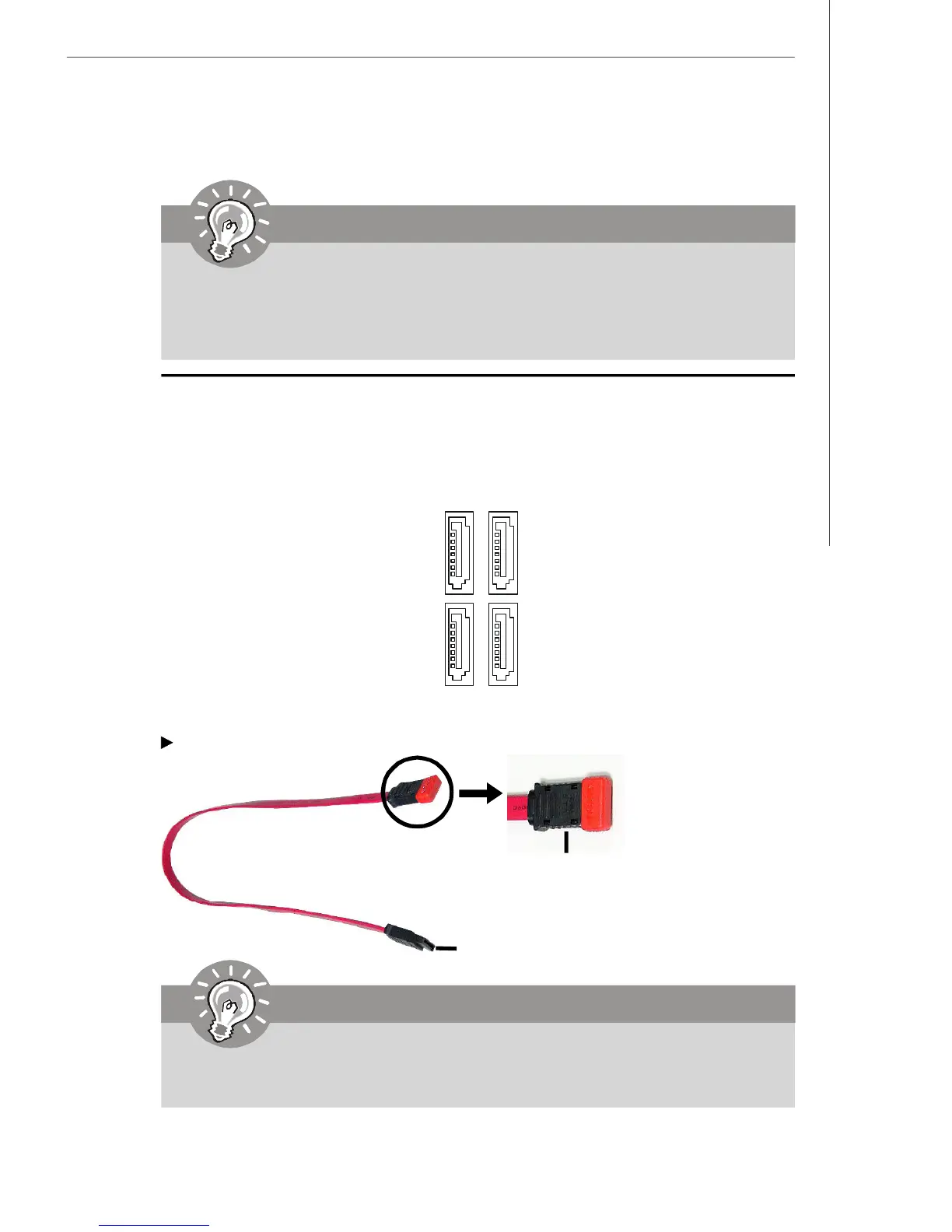

Serial ATA II Connectors: SATA1~SATA4
SATA1~SATA4 are high-speed SATA II interface ports. Each supports data rates of
300 MB/s and is fully compliant with Serial ATA specifications. Each Serial ATA
connector can connect to 1 hard disk device. (For Media Live, 2 SATA II ports can be
used only because of the ME assembly status.)
Serial ATA cable (Blue Colour)
SATA1~SATA4
(SATA2/4 are optional)
If you install two hard disks on cable, you must configure the second
drive to Slave mode by setting its jumper. Refer to the hard disk
documentation supplied by hard disk vendors for jumper setting
instructions.
Important
Connect to SATA1~SATA4
Please do not fold the Serial ATA cable into 90-degree angle. Otherwise,
data loss may occur during transmission.
Important
Take off the Dust Cover and
connect to the Hard Disk
Devices
