4-14
MS-6421 Media Center
Azalia Audio
Azalia is the codename of “High Definition Audio.” This setting allows users to dis-
able/enable the High Definition Audio interface integrated in southbridge.

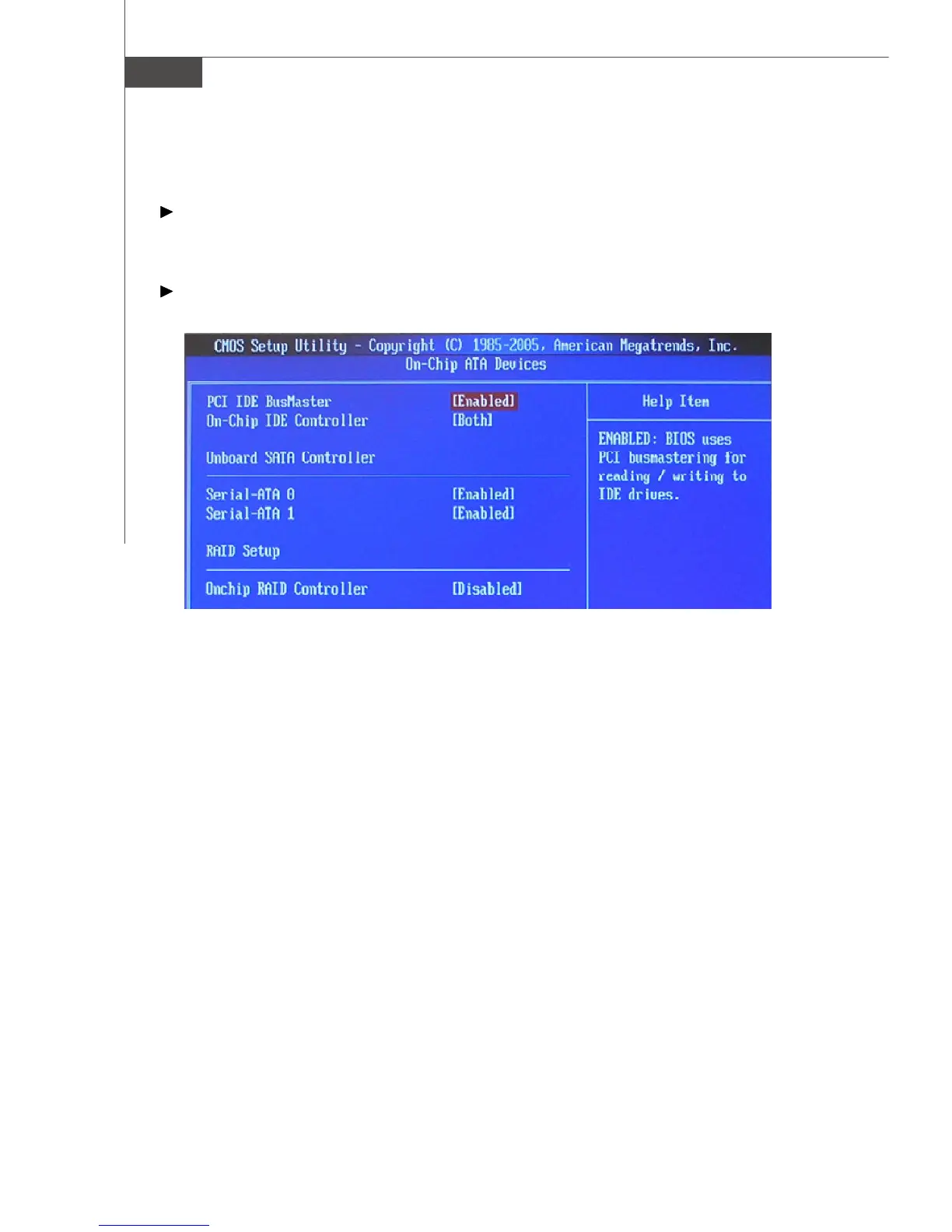

On-Chip ATA Devices
Press <Enter> to enter the sub-menu:
PCI IDE BusMaster
Set this option to [Enabled] to specify that the IDE controller on the PCI local bus
has bus mastering capability.
On-Chip IDE Controller
The integrated peripheral controller contains a IDE interface with support for
two IDE channels. Available setting options are:
[Disabled] Disables the integrated IDE Controller.
[Primary] Enables only the Primary IDE Controller.
[Secondary] Enables only the Secondary IDE Controller.
[Both] Enables both IDE Controllers.
Serial-ATA 0/1
This allows you to enable or disable onchip Serial-ATA controller.
Onchip RAID Controller
This allows you to enable or disable onchip IDE RAID controller. The field is
optional. It appears only when your mainboard supports IDE RAID function.
To Next Page
