Transmission Removal
21

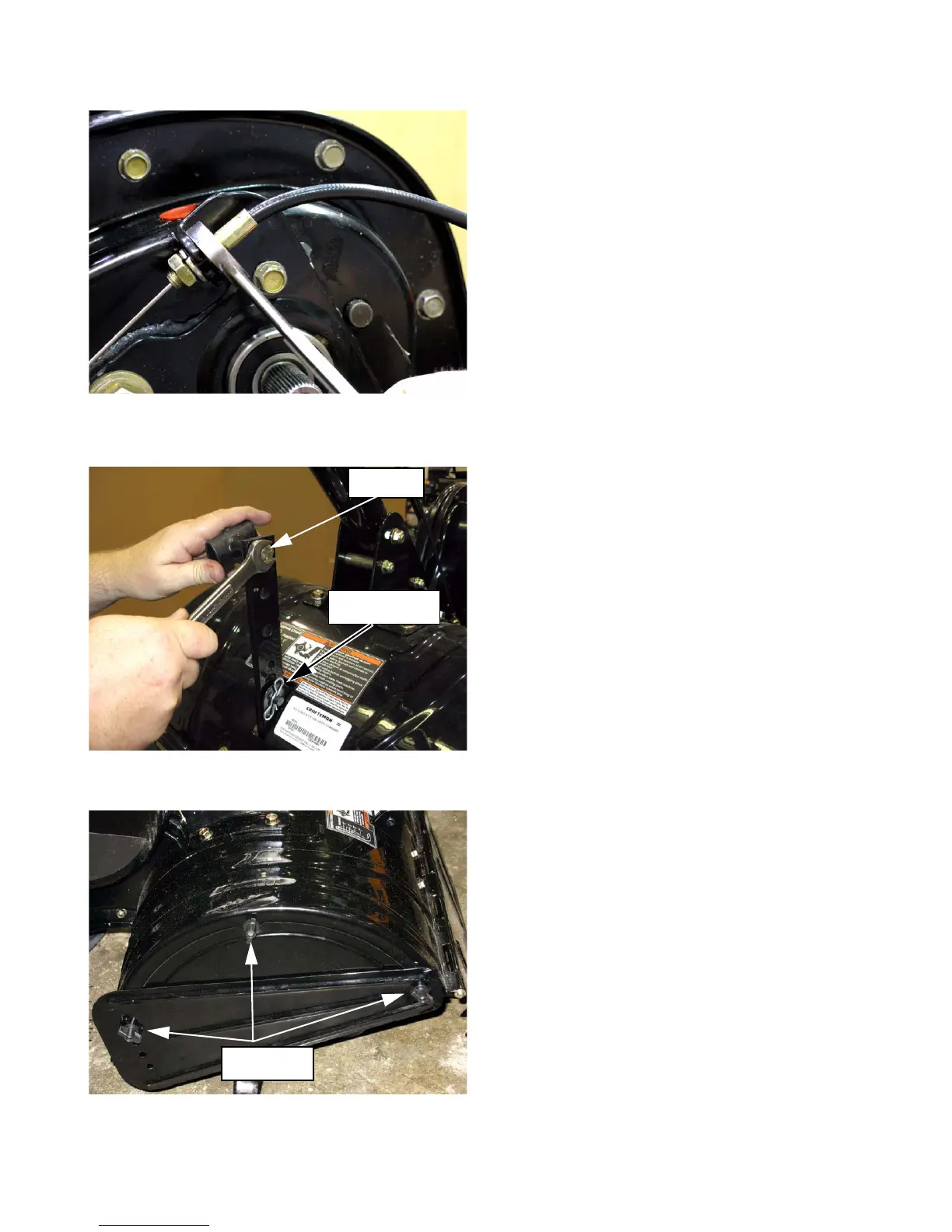

11. Remove the clutch control cable from the eyebolt by
loosening the top nut to release the tension on lower
nut using a 1/2” wrench. See Figure 4.6.
NOTE: The lower jam nut needs to be completely
threaded off in order to slip the cable off of the
bracket.
12. Remove the T-knob, flat washer, and hex screw from
the depth stake. See Figure 4.7.
13. Remove the bow tie clip and clevis pin securing the
depth stake to the tine shield bracket.
14. Remove the depth stake.
15. Remove the plastic wing nuts securing the side tine
shield covers and adjustable tine shields.
16. Remove the side tine shield covers and adjustable
tine shields.
Figure 4.6
Figure 4.7
Clevis Pin and
Bow-tie Clip
T-Knob
Figure 4.8
Wing Nuts
