Starter and Charging System
67
22. Set the starter motor onto the end cap while keeping
the brushes compressed into the brush holder.
See Figure 6.33.
23. Carefully slide the brush holding tool out of the
starter.
24. Rotate the end cap to line up the alignment marks
with the stator housing.
NOTE: Keep the starter motor compressed together.
25. Install the two screws that secure the end cap to the
starter motor.
26. Bench test the starter before installing it on the
engine.

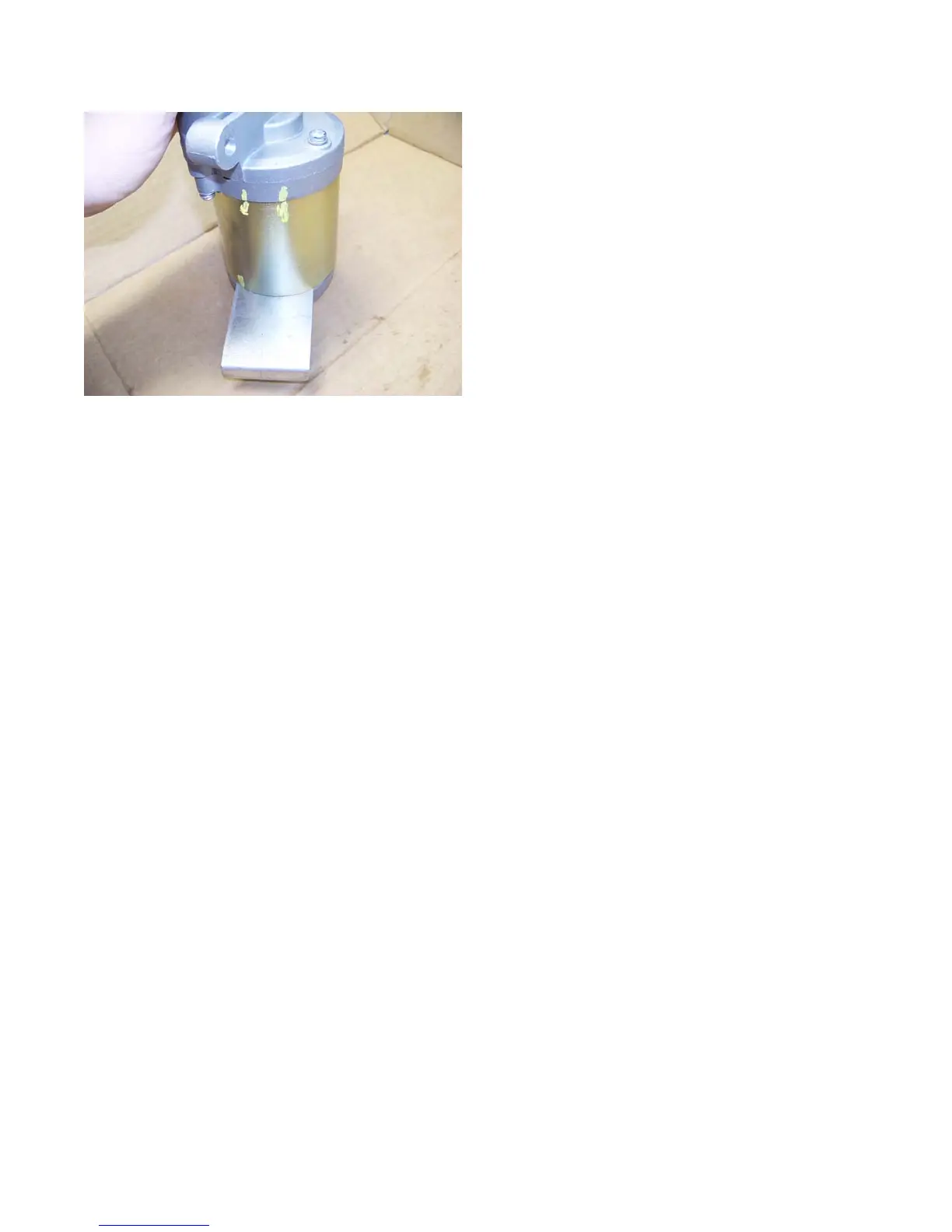

Figure 6.33
