P90 Series Vertical Shaft Engines
66

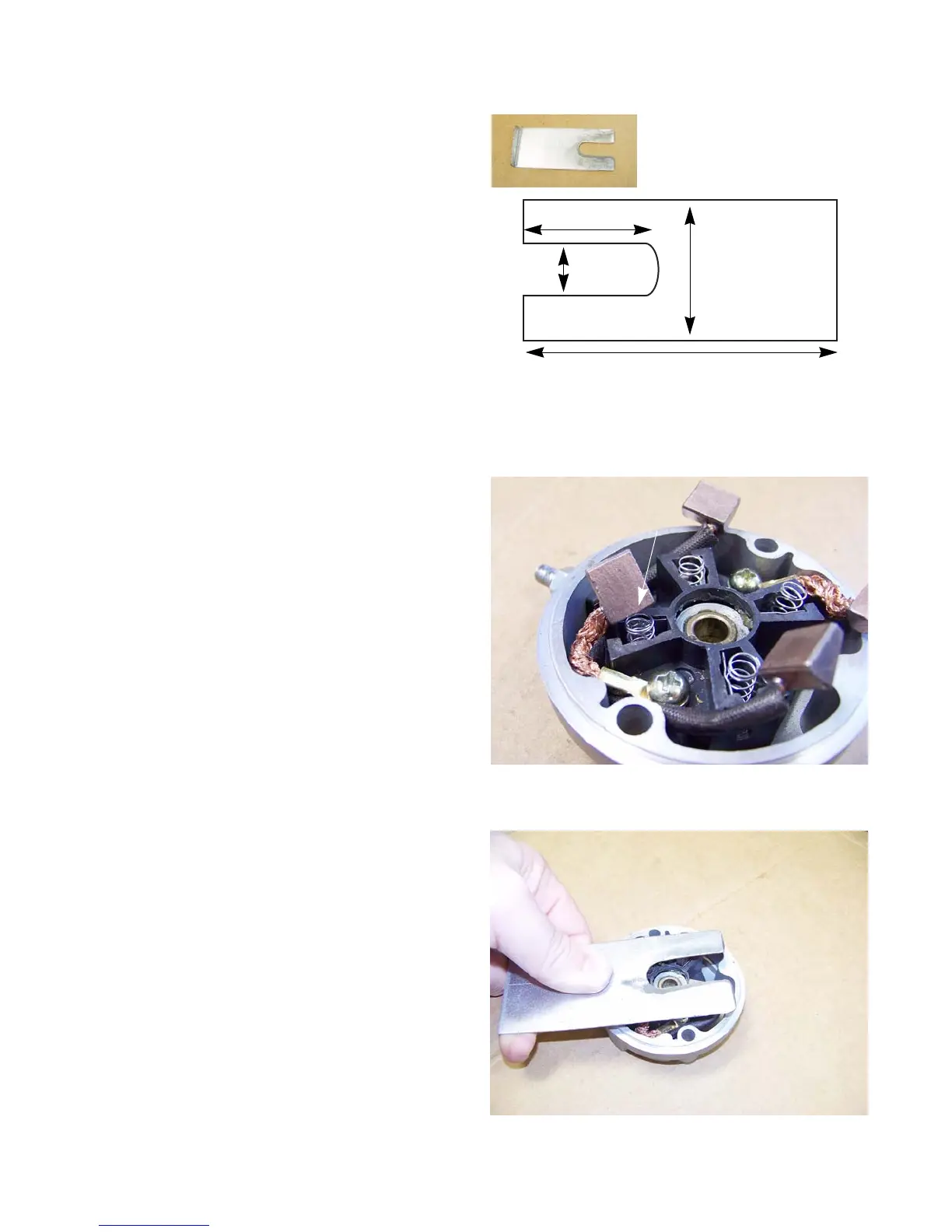

NOTE: A special tool will be needed to compress
the b ru sh es fo r a ssembl y o f t he mo to r.
See Figure 6.30.
To make the tool:
A. Cut a piece of sheet metal approximately
0.040” thick (19 or 20 gauge).
B. Cut a slot in the metal, 5/8” wide x 1 5/8” long.
C. Buff and debur all edges of the tool.
21. Insert the brushes into the brush holder.
NOTE: The side of the brush with the copper wire
faces down in the brush holder.
NOTE: Insert the brushes one at a time. Sliding the
tool made earlier over them to press and
hold them in place.
NOTE: It will take some force to compress all four
springs at once.
Figure 6.30
5/8”
2”
4.5”
1 5/8”
Figure 6.31
This side faces down
Figure 6.32
