MTS Systems MK292 - 8 Optional Analog Output for the Mk292; Operation Mode 1 (Normal)

8. Optional Analog Output for the MK292 (for Recording Purposes Only)
The analog output option functions in two operational modes:
1. Normal (NORM)
2. Programmable Adjustment (PROG)

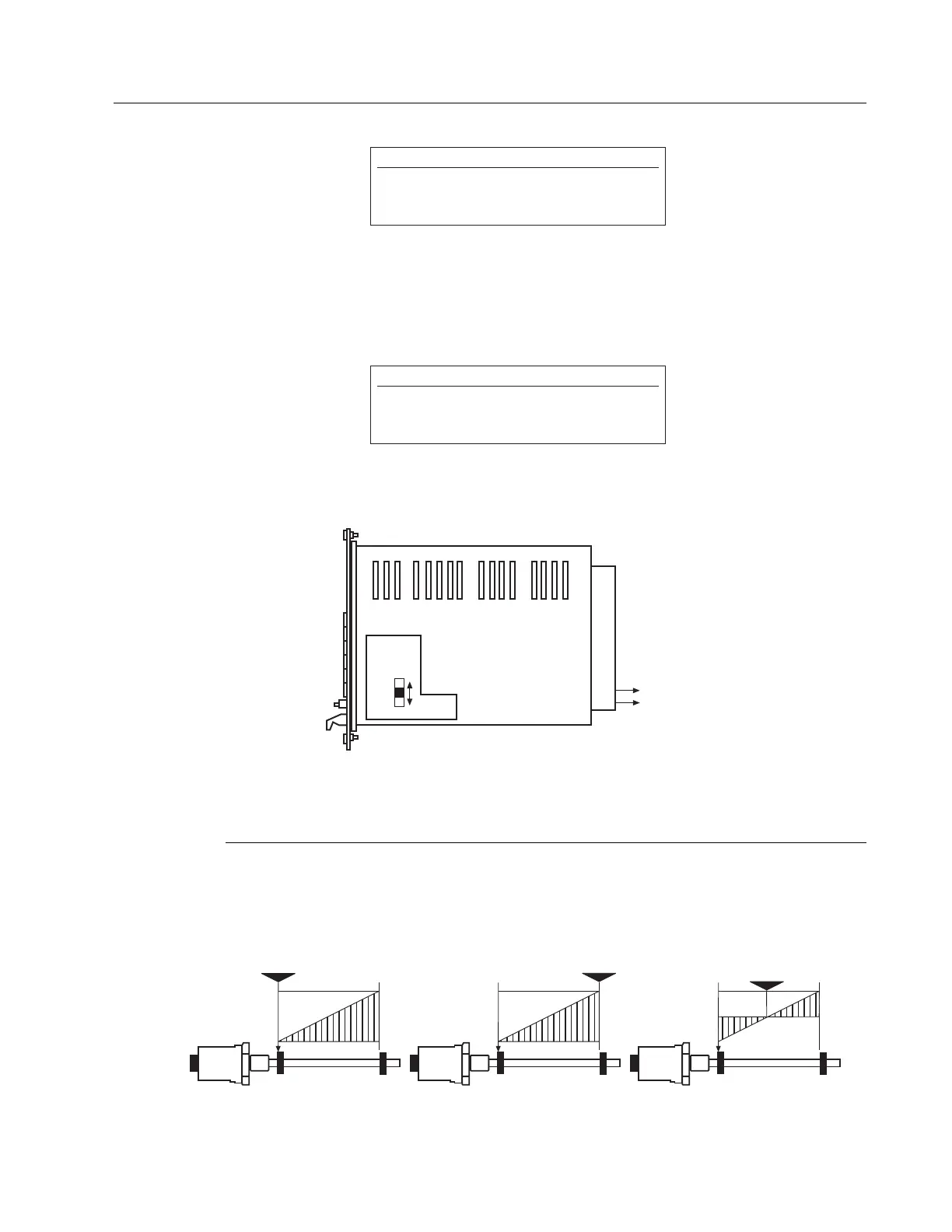

Operation mode is selected with the switch on the analog sub-print board (see Fig. 8.1).
Figure 8-1
8.1 Operation Mode 1 (Normal)
Analog Sub-print Switch (S1) = NORM
The analog output configuration is defined by the zero position and measuring range
of the sensor. The three possible configurations are illustrated in Fig. 8.2.
Figure 8-2
Null Set-Up
+10 V
0 V
No. 1
Null Set-Up
0 V
-10 V
No. 2
Null Set-Up
+5 V
0 V
-5 V
No. 3
MK 292
Module
c19
c20
- 10 to + 10 Vdc
0 Vdc
NORM
PROG
Analog
Subprint
WARNING!
When powering down during analog operation, switch
must remain in programming mode or all parameters
will be lost.
NOTE:
The analog output is available as an option and must
be specified at the time of order. An additional analog
sub-print is required.
23
