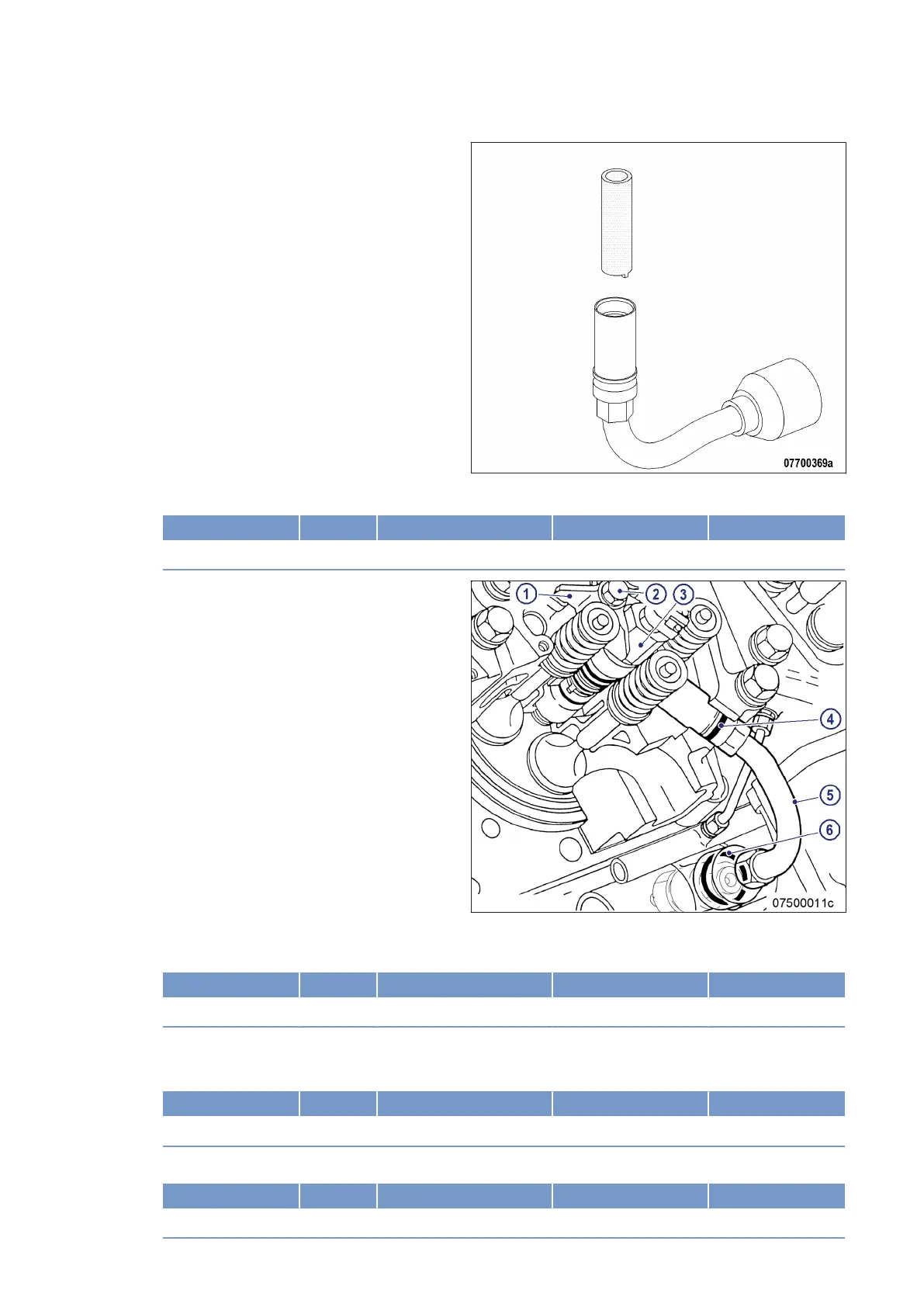

9. Use slotted screwdriver to check thrust ring
at both line ends for secure seating.
10. Tighten loose thrust ring to specified tightening torque.
Name Size Type Lubricant Value/Standard
Thrust ring Tightening torque 5 Nm to 10 Nm
11. Coat screw head mating face (2) and thread
with engine oil.
12. Fit hold-down clamp (1) in correct position by hand. Tighten screw (2) to specified initial tightening torque
using a torque wrench.
Name Size Type Lubricant Value/Standard
Screw M12 Preload torque (Engine oil) 5 Nm to 10 Nm
13. Fit O-rings (4) and (6) on HP fuel line (5) and coat with assembly compound.
14. Tighten HP fuel line (5) to specified initial tightening torque.
Name Size Type Lubricant Value/Standard
HP line Preload torque (Engine oil) 5 Nm to 10 Nm
15. Tighten screw (2) to specified torque using a torque wrench.
Name Size Type Lubricant Value/Standard
Screw M12 Tightening torque 100 Nm + 10 Nm
100 | Injector | MS150049/04E 2017-04
TIM-ID: 0000000952 - 013
