MTU 16V4000C21 - Cylinder Head Cover - Removal and Installation

8.5.4 Cylinder head cover – Removal and installation
Preconditions
☑ Engine is stopped and starting disabled.
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Gasket
(→ Spare Parts Catalog)
Removing cylinder head cover
1. Clean very dirty cylinder head covers (3) prior
to removal.

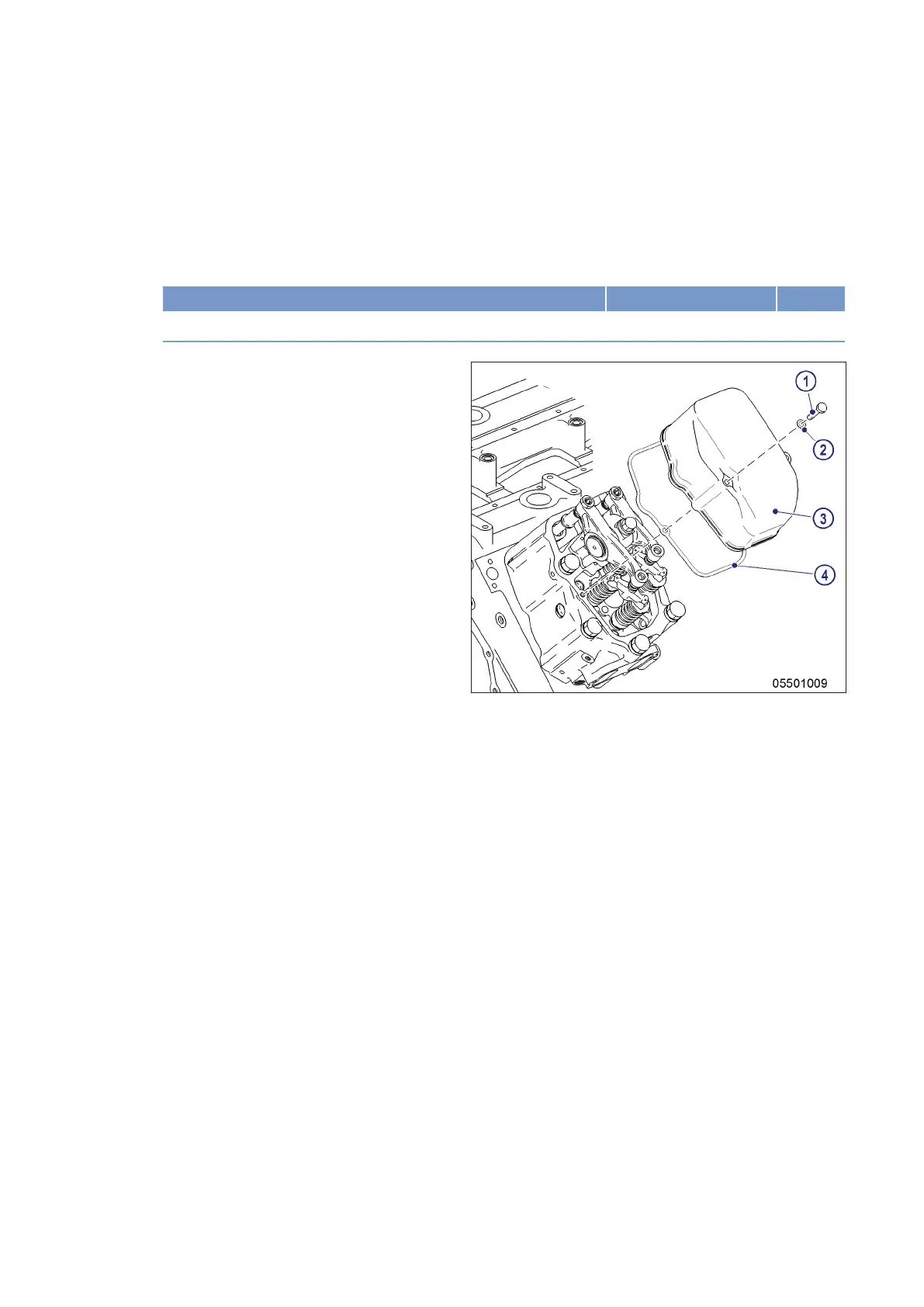

2. Undo screws (1) and remove with wash-
ers (2).
3. Remove cylinder head cover (3) with gas-
ket (4) from cylinder head.
4. Remove other cylinder head covers in the
same way.
Installing cylinder head cover
1. Clean mating faces.
2. Check gasket (4) for damage, replace if necessary.
3. Place gasket (4) and cylinder head cover (3) onto cylinder head.
4. Install cylinder head cover (3) with screws (1) and washers (2).
5. Install other cylinder head covers in the same way.
