8 Task Description
8.1 Engine
8.1.1 Engine – Barring manually
Preconditions
☑ Engine is stopped and starting disabled.
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Barring tool
F6555766 1
Adapter
F6558528 1
Ratchet with extension
F30006212 1
DANGER
Rotating/moving engine parts.
Risk of crushing, danger of body parts being caught up or drawn in!
• Ensure that all personnel is clear of the danger zone before cranking the engine on the starter.

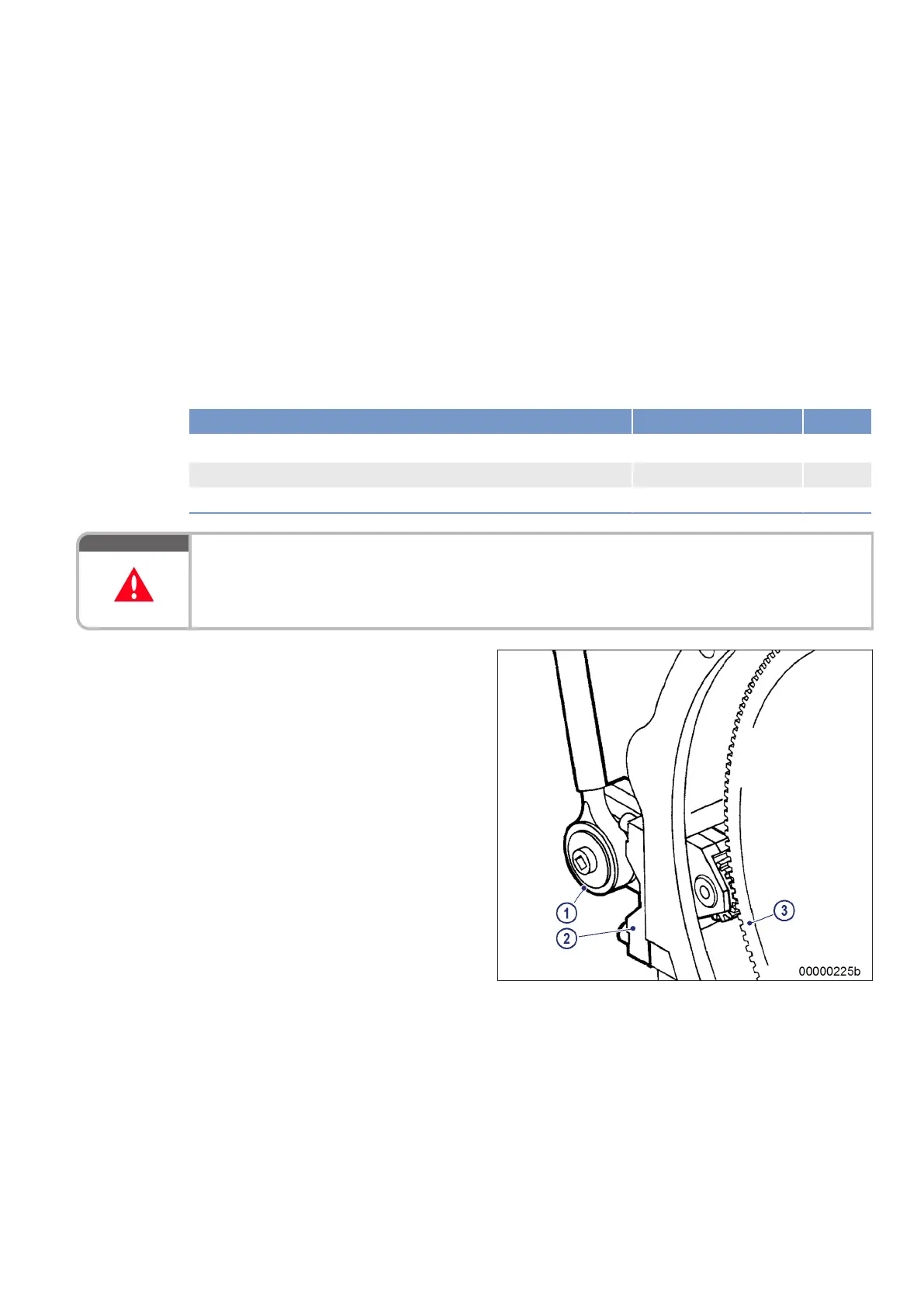

Barring engine manually (lateral
installation)
1. Remove guard plate.
2. Engage barring tool (2) in ring gear (3) and in-
stall on flywheel housing.
3. Set ratchet (1) onto barring tool (2).
4. Rotate crankshaft in engine direction of rota-
tion. Apart from the normal compression re-
sistance, there should be no resistance.
5. Remove barring tool in reverse order.
MS150049/04E 2017-04 | Task Description | 75
TIM-ID: 0000002522 - 003
