8.18 Belt Drive
8.18.1 Drive belt – Condition check
Preconditions
☑ Engine is stopped and starting disabled.
☑ Protective cover is removed.
Drive belt – Condition check

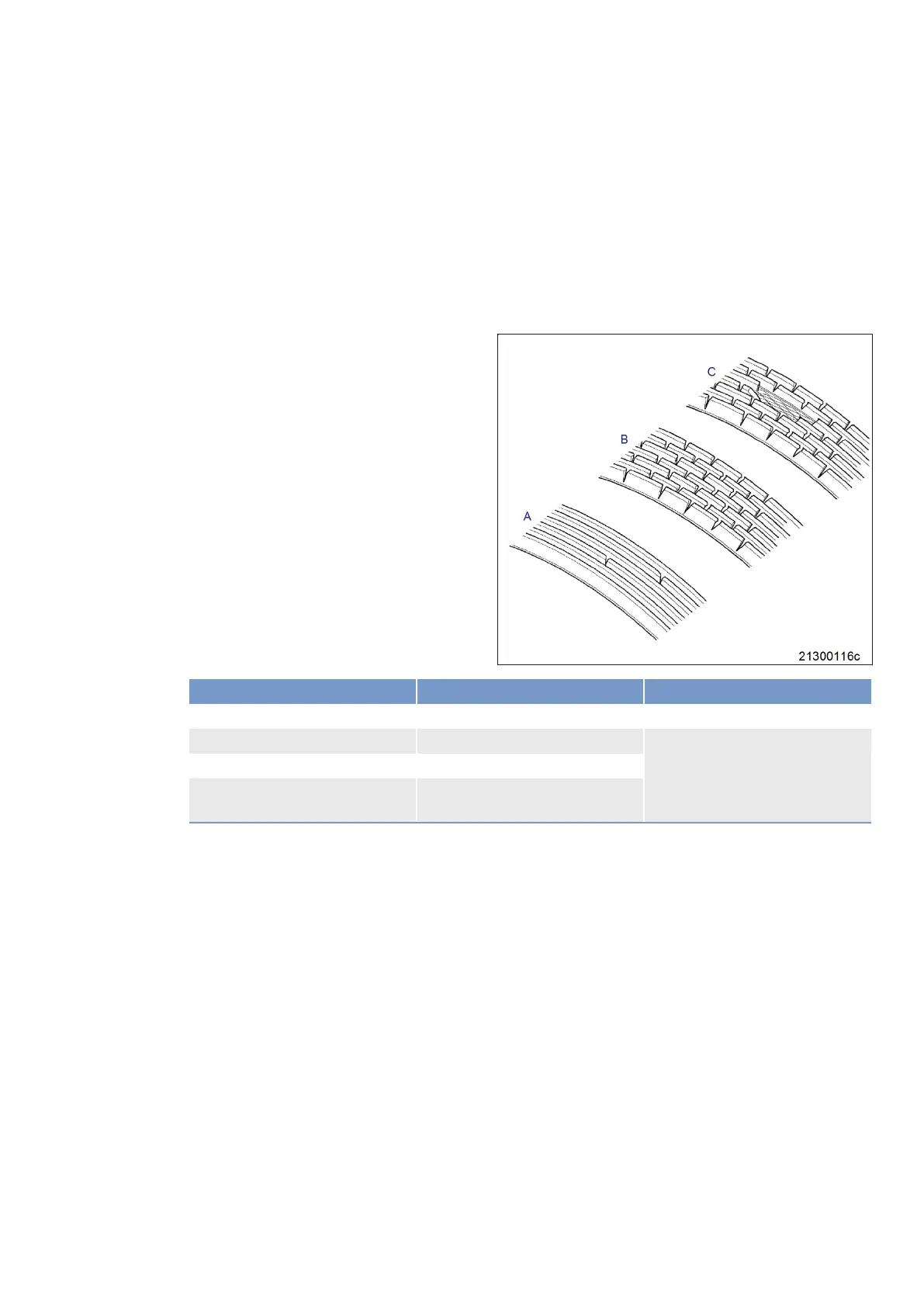

Item Findings Measure
Drive belt A Singular cracks None
Drive belt B Cracks on entire circumference Replace (→ Page 139)
Drive belt C Chunking
Drive belt Belt is oily, shows signs of over-
heating
MS150049/04E 2017-04 | Belt Drive | 135
TIM-ID: 0000000920 - 012
