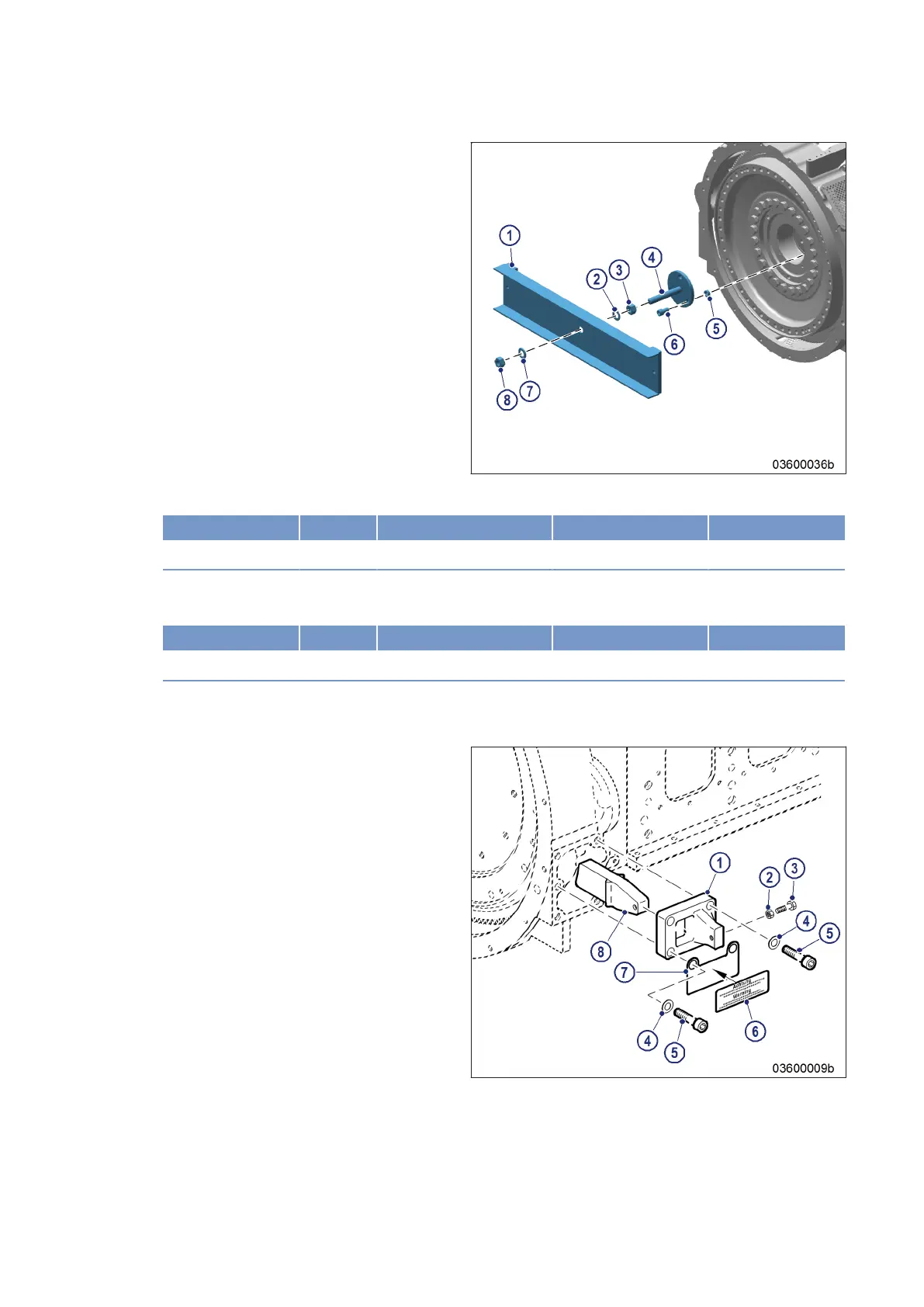

Installing the transport locking
device on driving end (KS), ver-
sion A
1. Screw holder (4) with spacer sleeves (5) and
screws (6) onto crankshaft. Spacer
sleeves (5), optional.
2. Tighten screws (6) to specified torque using a torque wrench.
Name Size Type Lubricant Value/Standard
Screw M16 Tightening torque (Engine oil) 160 Nm +16 Nm
3. Screw nut (3) with washer (2) onto holder (4). Screw on carrier (1) with washer (7) and nut (8) and tighten
nut (8) to specified torque using a torque wrench.
Name Size Type Lubricant Value/Standard
Nut M24 Tightening torque (Engine oil) 100 Nm +10 Nm
4. Secure with nut (3).
5. Mark the engine as “Fitted with transport locking device”.
Removing the transport locking
device from driving end (KS),
version B
1. Release the locknuts (2) on both sides of the
flywheel housing, remove screw (3) and take
off holder (8).
2. Unscrew screws (5) and remove with wash-
ers (4), cover plate (7) sign (6) and plates (1).
3. Store the removed parts of the transport
locking device carefully for possible reuse to-
gether with this documentation.
20 | Transport | MS150049/04E 2017-04
TIM-ID: 0000040575 - 002
