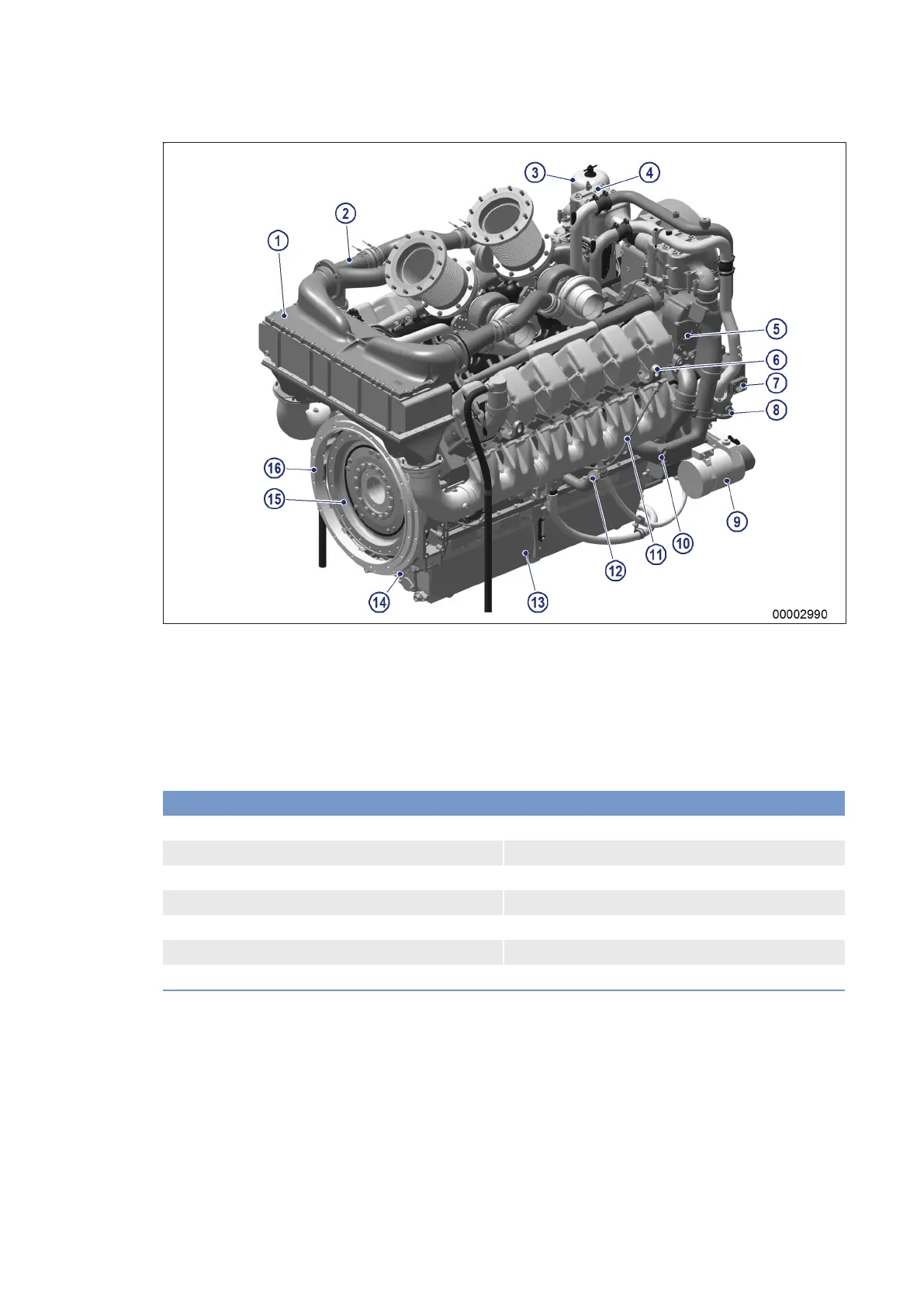

1 Intercooler
2 Charge-air line
3 Centrifugal oil filter
4 Oil cooler
5 Engine coolant inlet
6 Lifting eyes
7 Charge-air coolant outlet
8 Charge-air coolant inlet
9 Battery-charging generator
10 Engine coolant pump
11 Oil dipstick
12 Oil filler neck
13 Oil pan
14 Carbon brushes
15 Flywheel
16 Flywheel housing
Engine model designation
Explanation of engine model designation 12/16V4000Cxyz
12/16 Number of cylinders
V Cylinder arrangement (Vee engine)
4000 Series
C Application (Construction and Industrial, mobile)
x Application segment (1, 2, ...)
y Design status (0, 1, 2,...)
z Additional features
26 | General Information | MS150049/04E 2017-04
TIM-ID: 0000002071 - 004
