Crankcase breather (open-cir-
cuit crankcase ventilation) – Fil-
ter element cleaning or replace-
ment

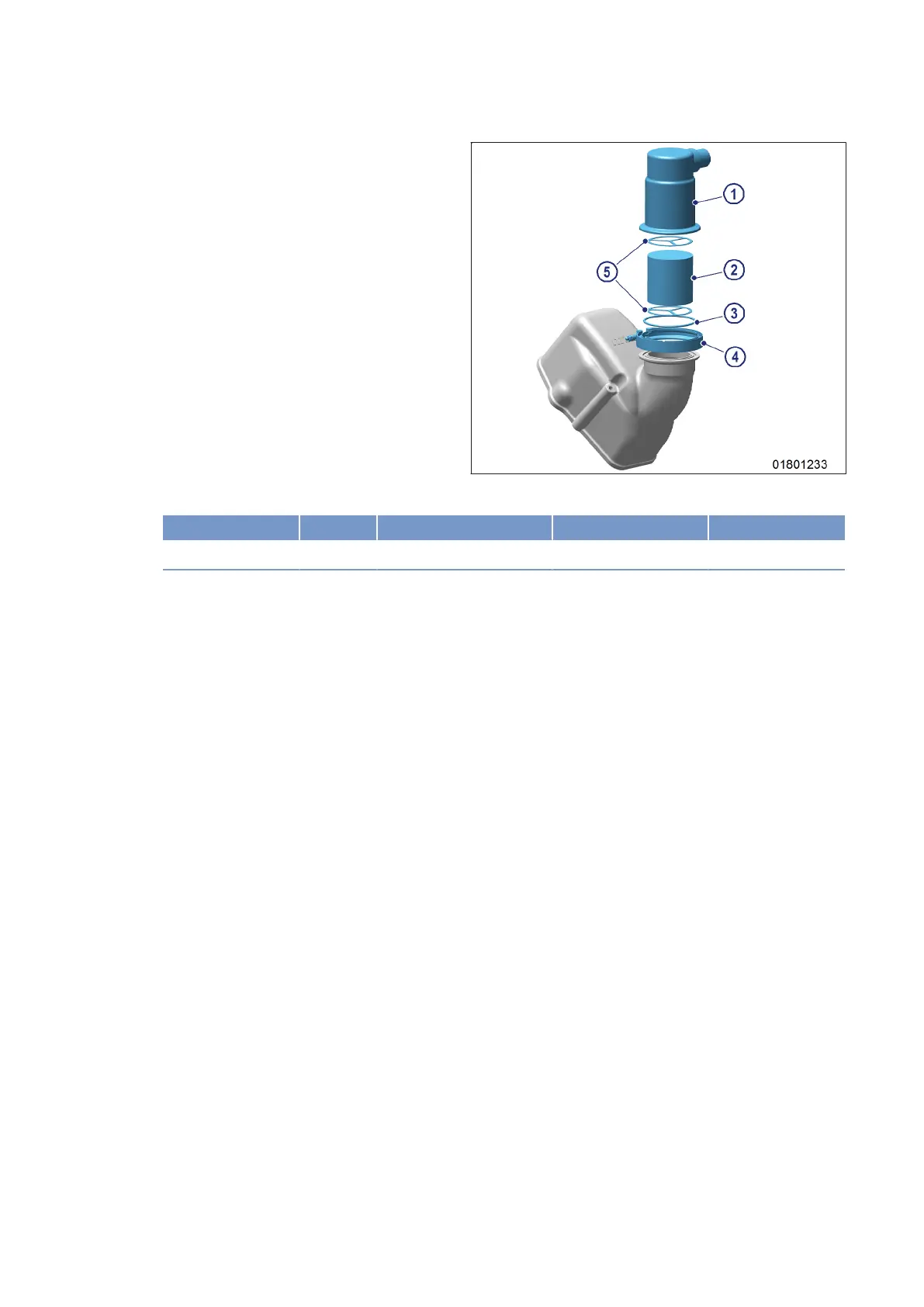

1. Clean filter externally.
2. Release vent hose on oil separator cover (1)
and remove.
3. Remove oil separator cover (1).
4. Loosen clamp (5).
5. Clean or replace filter element (2)
(→ Page 83).
6. Insert new sealing ring (3).
7. Install cleaned or new filter element (2) with
filter holder (5).
8. Mount oil separator cover (1).
9. Use torque wrench to tighten nut of clamp (4) to specified tightening torque.
Name Size Type Lubricant Value/Standard
Nut Tightening torque (Engine oil) 9 Nm +1 Nm
10. Push vent hose onto oil separator cover (3) and bolt on.
11. Replace further filter elements (2) in the same way.
82 | Crankcase Breather | MS150049/04E 2017-04
