Removing injector
Note: Always replace the first and last injectors of
one engine side first. Replace the inner injec-
tors only after the installation of the outer in-
jectors on this engine side is completed.

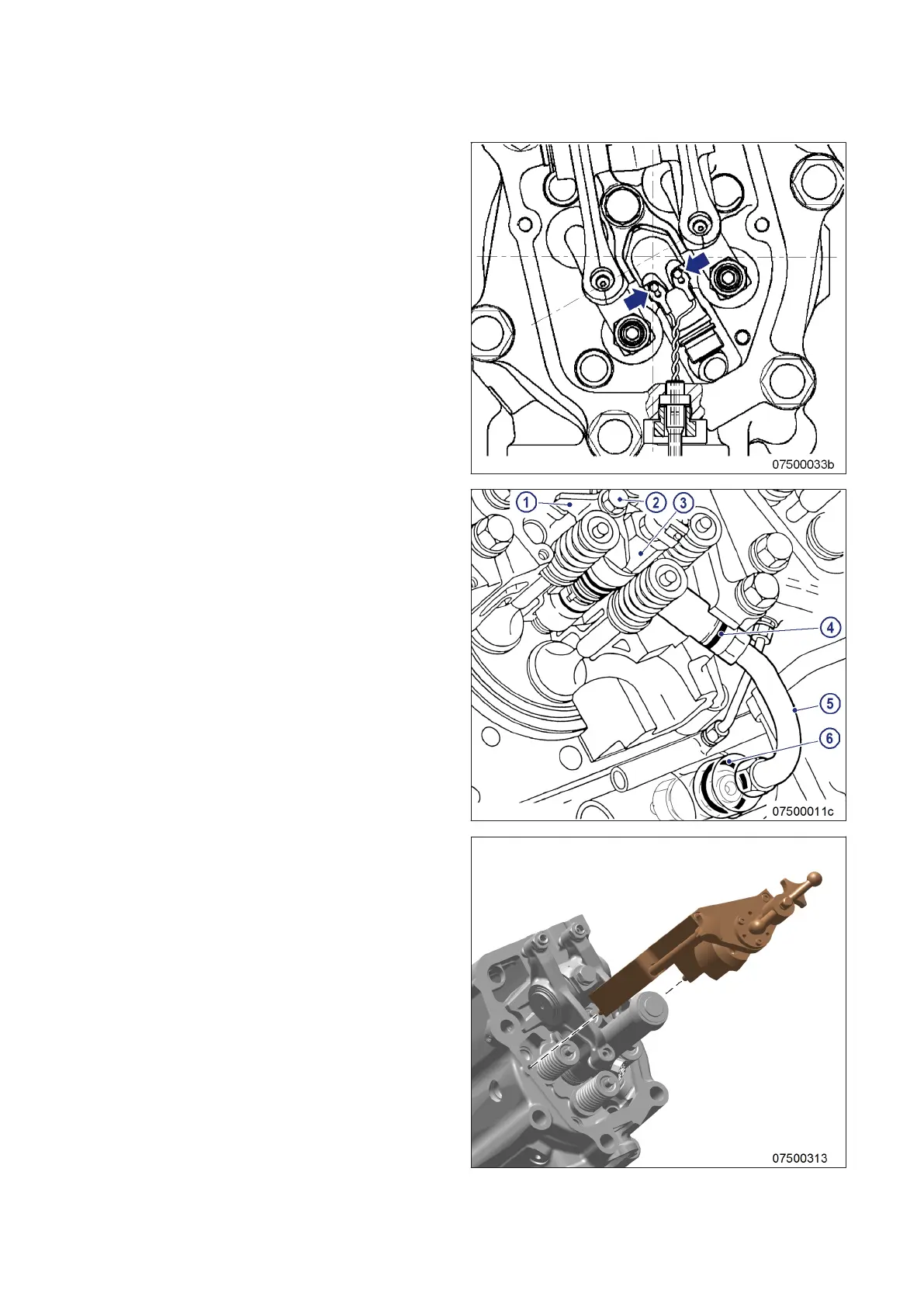

1. Release the cable terminal threaded connec-
tion (arrowed) on the injector and remove ca-
ble terminals.
2. Remove screw (2) and take off hold-down
clamp (1).
3. Remove HP fuel line (5).
4. Install installation/removal jig on the cylinder
head.
5. Remove injector with installation/removal jig.
6. Remove the installation/removal jig.
98 | Injector | MS150049/04E 2017-04
