7.2.2 Engine cranking on starter
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Connector pliers
0135315483 1
DANGER
Unguarded rotating and moving engine components.
Risk of serious injury – danger to life!
• before barring or starting the engine, ensure that nobody is in the danger zone.
• After working on the engine, check that all protective devices have been reinstalled and all tools
removed from the engine.
Engine cranking on starter

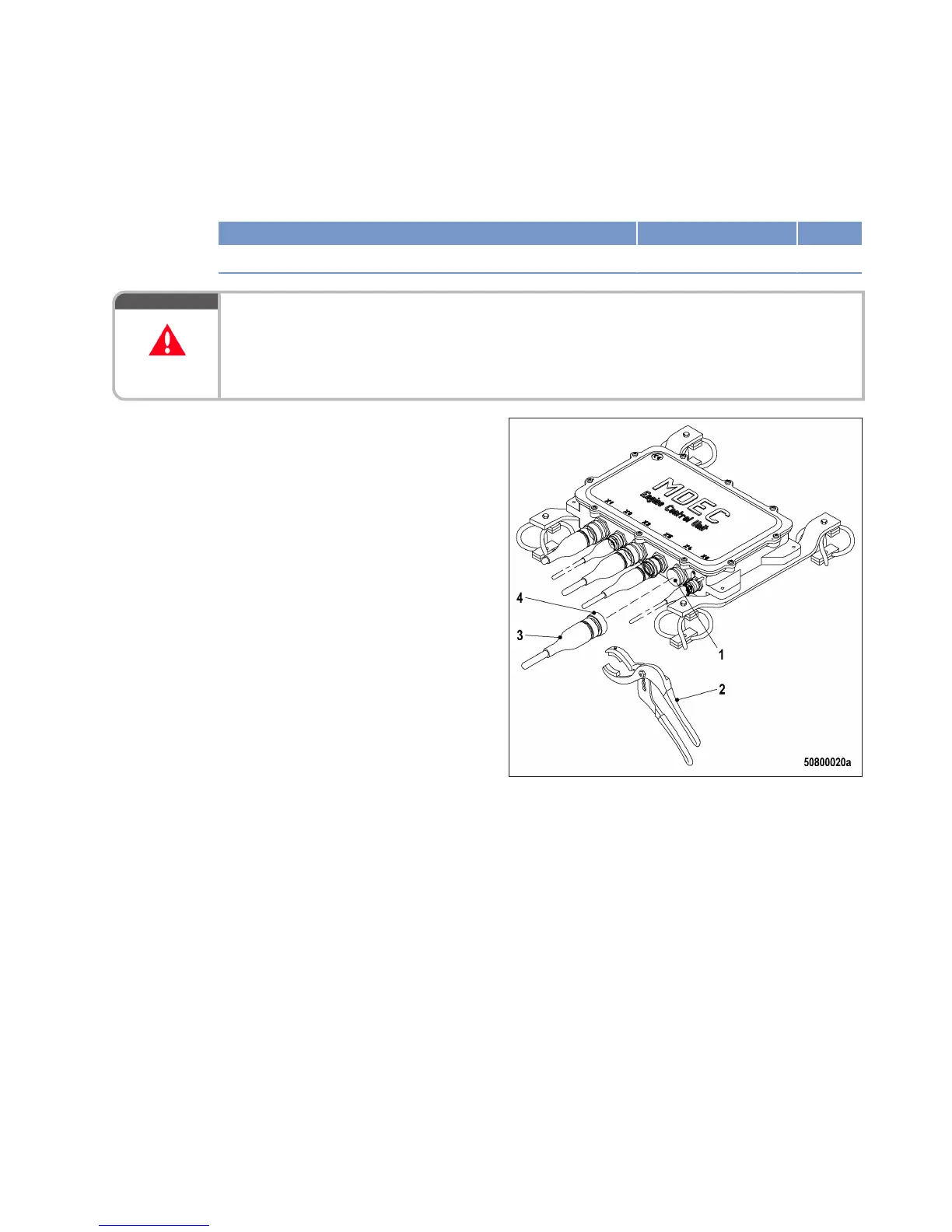

1. Disengage the bayonet union nut (4) of
connector X4 with connector pliers (2) and
withdraw connector (3) from Engine Control
Unit.
2. Bar engine in unloaded condition: Press
START button.
3. Let the crankshaft rotate until oil pressure is
indicated.
4. Engine start is automatically interrupted
when max. admissible starting period has
expired. Re-start engine after approx. 20
seconds if necessary.
5. Plug connector X4 (3) and use connector
pliers (2) to secure the bayonet union
nut (4) by turning it clockwise until it latches
into place.
MW15550/06E 2012-02 | Task Description | 167
