Sentry II with Water Works Box Operating Instructions Effective April 1, 2000
Part No. 8823728 Revised November 10, 2003
2.9 Bulk Head Installations
If the milk cooler is bulkheaded through a wall, the wall must be free-standing and not load bearing
against the milk cooler. Mueller offers an optional steel-formed structural support channel that may be
installed in masonry walls to prevent the wall from bearing load on the milk cooler. Contact Mueller’s
Sales Department for availability and pricing.
A weather shield kit, Part No. 93750, is required for agitator(s) that are located exterior of the milk
house wall. See Figures 5 and 8, and Section 2.11 for additional installation instructions.

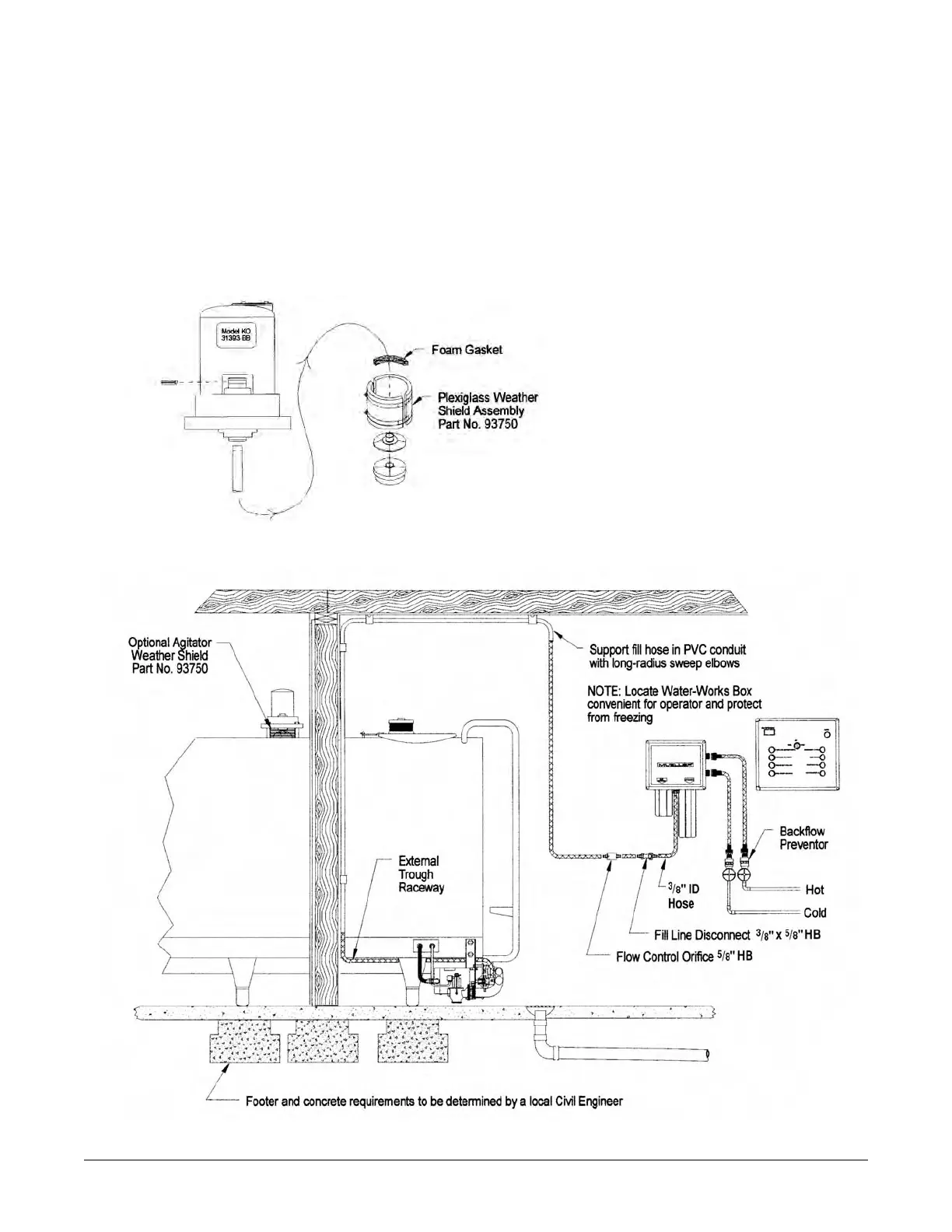

Figure 5 - Agitator Weather Shield
Figure 6 - Basic Bulk Head Installation
7
