Sentry II with Water Works Box Operating Instructions Effective April 1, 2000
Part No. 8823728 Revised November 10, 2003
2.13 Instructions for Mounting the Sentry II Control Box Enclosures
1. Install the Sentry II control box in a location where it is easily accessible for the operator and
protected from excessive wash down.
2. Install the water works box in an area protected from freezing and within easy access to the
chemical storage drums.
2.14 Water Line Connections
1. Connect the backflow preventors and hot and cold water fill hoses between the water supply
valves and water solenoid valves located in the right side of the water works box. See Figure 10.
2. Route the fill line hose between the water works box and fill nipple located on the wash pump
assembly. See Figures 6 and 7.
3. Insert the flow control orifice and fill line disconnect in the fill line hose at a location easily
accessible for the operator. See Figures 6, 7, and 10.
NOTE: The fill line disconnect should be separated when cooling or storing milk.

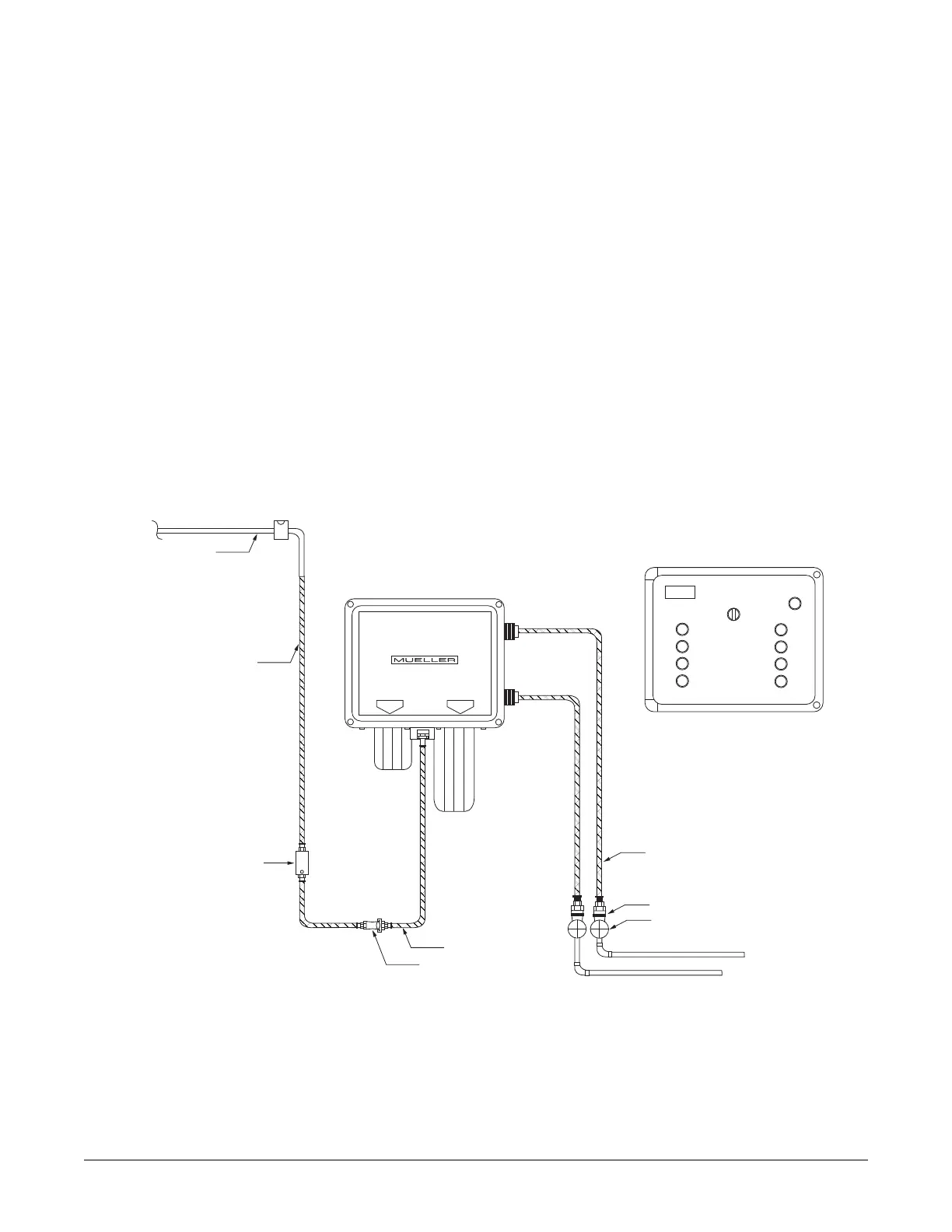

Figure 10 - Sentry II Control Box Installation and Water Connections
11
protect from freezing.
