Sentry II with Water Works Box Operating Instructions Effective April 1, 2000
Part No. 8823728 Revised November 10, 2003
2.17 Spray Dish Installation
The spray dishes connect to the internal or external CIP wash line with a stainless steel keeper pin.
Check for proper spray dish installation and orientation during the installation and start-up inspection.
The rectangular notch cut across the bottom of the spray dish tube must face the front and rear heads
of the milk cooler and the slot cut in the bottom of the dish must point towards the center of the
agitator shaft. See Figure 12.

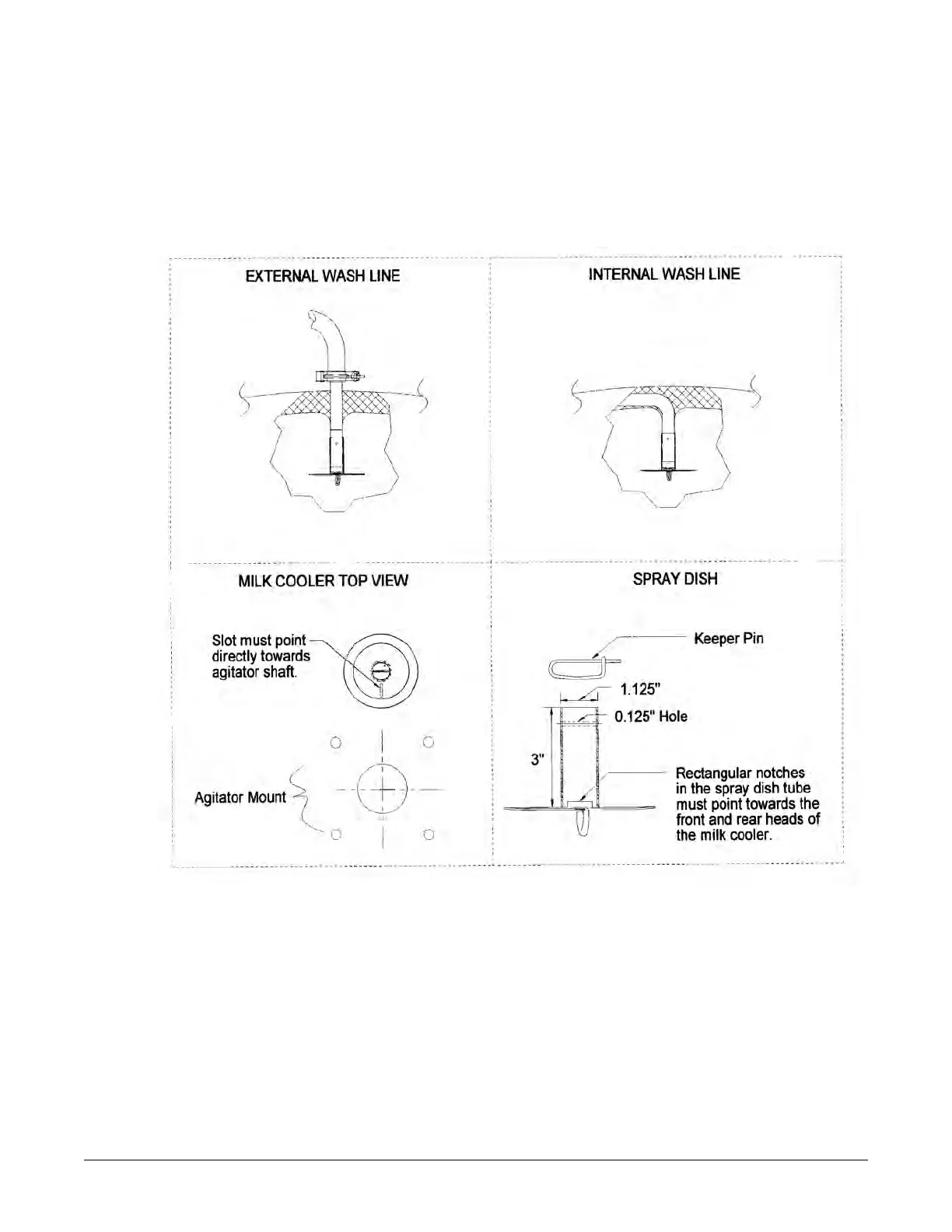

Figure 12 - Spray Dish Orientation
