MULTILIFT Ultima S Flex - Page 165

165
Ultima S / SL Flex & Pro
3/2019
114060421
Hooklift Multilift Ultima S / SL Flex & Pro
Service Manual

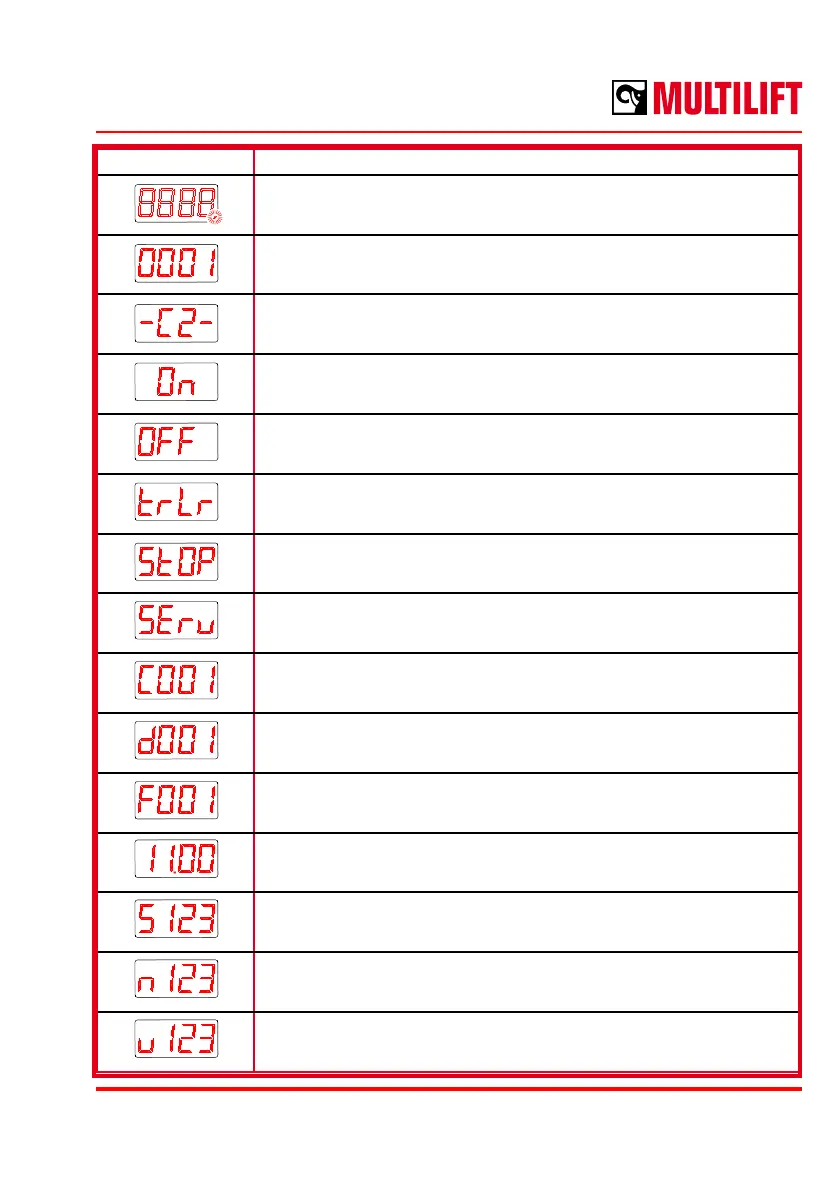

DISPLAY MESSAGE CAUSE
DOT IS ON - CONTROL SYSTEM IS OK.
THE DOT IS BLINKING DURING HOOKLIFT MOVEMENTS.
HOUR COUNTER, 0001 OR HIGHER NUMBER APPEARING ABOUT 5 SEC
DURING START UP.
EXTERNAL CONTROLLER, 2GRC, 2GMR,
TOP SEAT OR CRANE CONTROLLER IS ACTIVE.
A STAY-ON HYDRAULICS IS ON.
EMERGENCY OPERATION HYDRAULICS ON.
A STAY-ON HYDRAULICS IS OFF.
THE FUNCTION OF TRAILER TIPPING HYDRAULICS IS OFF.
EMERGENCY OPERATION HYDRAULICS OFF.
TRAILER TIPPING IS ON.
EMERGENCY STOP IS ON.
SERVICE TOOL ACTIONS ONGOING
(SOFTWARE LOADING / DOWNLOADING, ETC.)
CONFLICT CODE C001 - C020.
SEE CODES ON FOLLOWING PAGES, IN THE CHAPTER ”ERROR CODES,
CONFLICTS”.
DIAGNOSTIC CODE D001 - D028.
SEE CODES ON FOLLOWING PAGES, IN THE CHAPTER ”ERROR CODES,
DIAGNOSES”.
FAILURE CODE F001 - F081.
SEE CODES ON FOLLOWING PAGES, IN THE CHAPTER ”ERROR CODES,
FAULTS”.
CONTROL UNIT ERROR CODE 01.01 - 99.00.
SEE CODES ON FOLLOWING PAGES, IN THE CHAPTER ”ERROR CODES,
CONTROL UNIT”.
S = SHORT CIRCUIT, FOLLOWING WITH I/O MODULE PIN NUMBER,
E.G. 123 = CONNECTOR XM1 PIN 23.
N = NO VOLTAGE, FOLLOWING WITH I/O MODULE PIN NUMBER,
E.G. 123 = CONNECTOR XM1 PIN 23.
V = WRONG VOLTAGE, FOLLOWING WITH I/O MODULE PIN NUMBER,
E.G. 123 = CONNECTOR XM1 PIN 23.
