Hooklift Multilift Ultima S / SL Flex & Pro
User Manual
Automatic Sequence Control
The automatic sequence control controls the movements of the equipment, ensuring an
easy and safe operation of the container. The automatic sequence control is easily engaged
by moving the joystick to the right-hand-side position (2GCC) or by pressing the switch
shown on the picture (2GRC and 2GRM).
Moving the joystick backward will activate the unloading movement, which is automatically
followed by the following operations:
• the hydraulic body locks are opened
• the hook arm moves backwards
• the main cylinders push back the hook arm and middle frame
Remember to stop the movement when the container reaches the ground.
Moving the joystick forward will activate the loading movement, which is automatically
followed by the following operations:
• the main cylinders pull the hook arm and middle frame on top of the equipment
• the hook arm moves forward
• the hydraulic body locks are closed when the joystick is released
The switch between automatic and normal control is made by moving the joystick to the
central position, where it controls the main cylinders, or to the left where it controls the
hook arm by normal steering. The hook arm must be static before the joystick is switched
from one position to another.

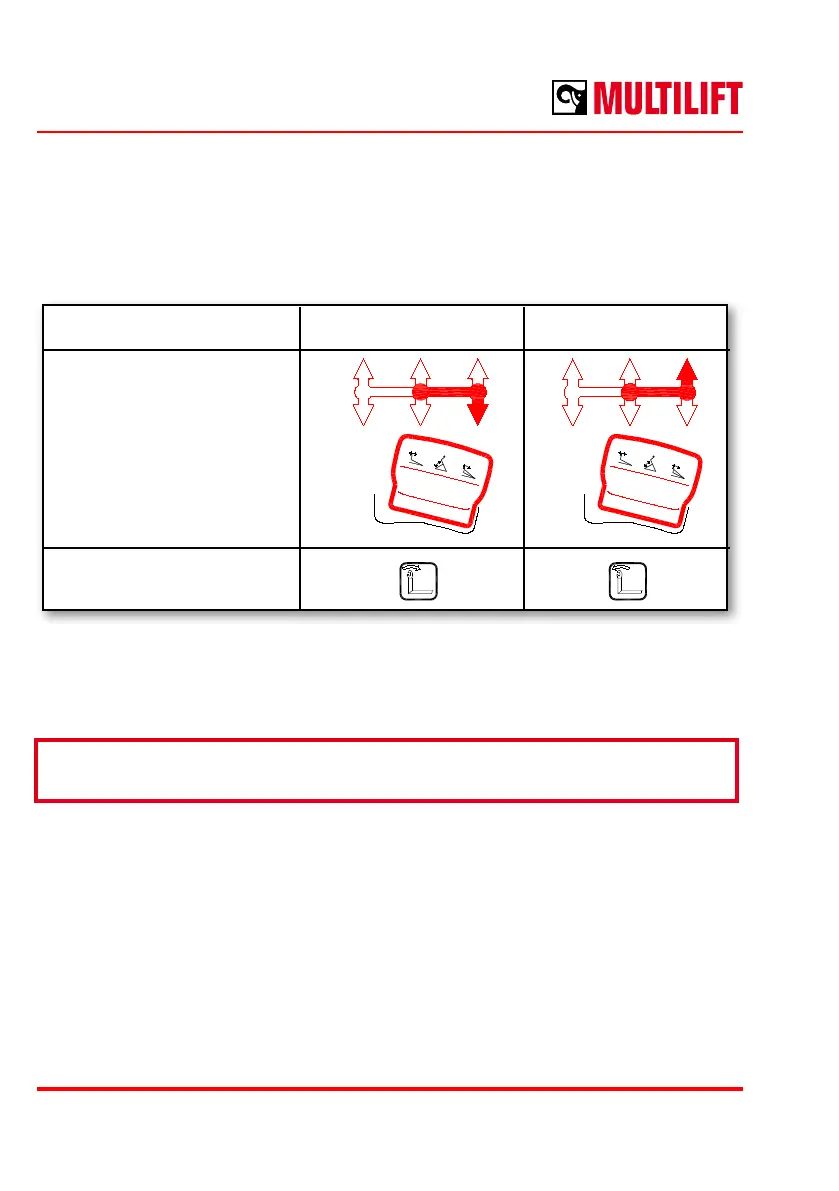

Function Unloading Loading
Joystick 2GCC Joystick Joystick
backward forward
Button 2GRC and 2GMR
