MULTILIFT Ultima SL Flex - Mini-Radio (2 GMR)

117
Ultima S / SL Flex & Pro
3/2019
114060421
Hooklift Multilift Ultima S / SL Flex & Pro
Service Manual
1 2 3
4 5 6
ON OFF
8
7
9
13
10
12
11
MULTILIFT
TARRAPAINATUKSET
punainen cmyk 0 100 100 0
musta cmyk 0 0 0 100
vaalea harmaa cmyk 1 0 0 7
tumma harmaa cmyk 5 0 0 25
PTO
on off

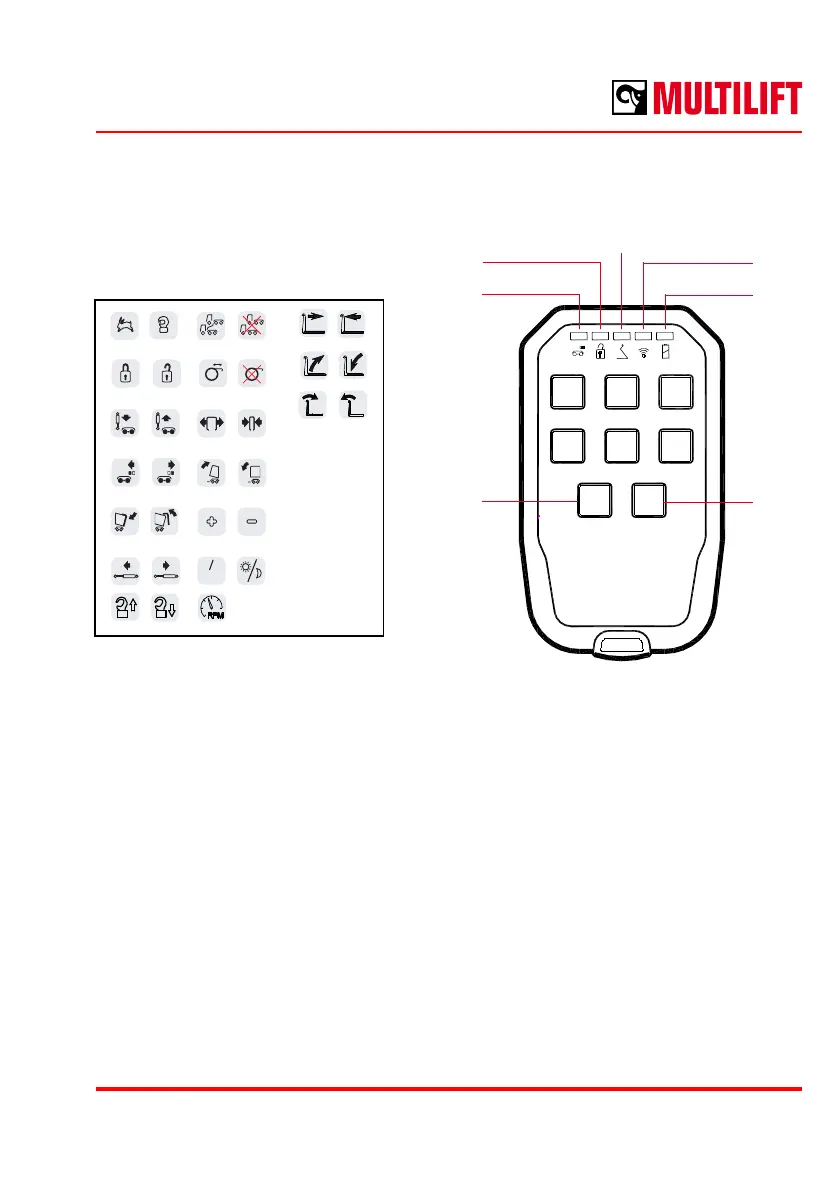

Mini-Radio (2GMR)
1 - 6 Function buttons
7 ON switch / Dead man´s switch
8 OFF switch
9 LED: BATTERY CHARGE STATUS
10 LED: CONNECTION
11 LED: FRAME NOT LOWERED
12 LED: HYDRAULIC CONTAINER
LOCKS NOT LOCKED
13 LED: UNDER-RUN BAR
RETRACTED
The Mini-Radio uses 3 AAA batteries as a power source.
Mini-Radio may have same functions as the regular control unit of Ultima-device, but other
functions are also possible.
After programming, the symbols of corresponding functions from the sticker sheet are
attached below the Mini-Radio buttons.
Symbol Sticker Sheet
Note!
One sticker sheet is spare for future
changes.
