MULTILIFT Ultima SL Flex - Hydraulically Adjustable Hook Height

115
Ultima S / SL Flex & Pro
3/2019
114060421
Hooklift Multilift Ultima S / SL Flex & Pro
Service Manual
1570 - 1720
1400 - 1450
1400 - 1570 Ultima 21S - Ultima 26S
1450 - 1570 Ultima 21S - Ultima 26S
1450 - 1720 Ultima 21S

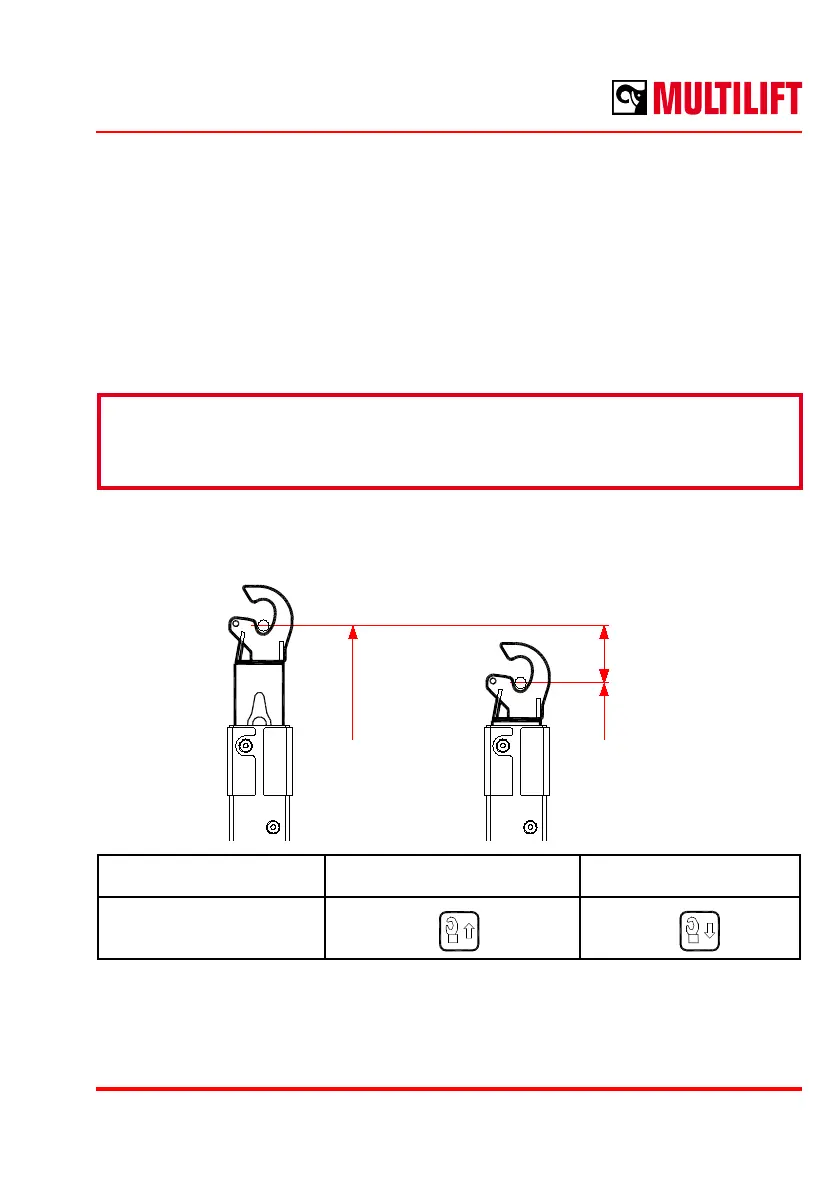

Hydraulically adjustable hook height
With the hydraulically adjustable grabbing hook, the grabbing height can be adjusted
between 57.1 in (1450 mm) and 61.8 in (1570 mm) according to the container used.
Before grabbing the container, measure the correct height and drive the grabbing hook to
the corresponding height.
The height of the hook should not be altered when loading or lowering
the container in order to avoid damage to the container or the Ultima hooklift
device.
Adjustment area
Function Hook up Hook down
Button
61.8 in
(1570 mm)
- 55.1 in
67.7 in (1400 mm)
(1720 mm) -
57.1 in
(1450 mm)
55.1 in (1400 mm) - 61.8 in (1570 mm) Ultima 21S - Ultima 26S
57.1 in (1450 mm) - 61.8 in (1570 mm) Ultima 21S - Ultima 26S
57.1 in (1450 mm) - 67.7 in (1720 mm) Ultima 21S
