MULTILIFT Ultima SL Flex - Hydraulics

78
Ultima S / SL Flex & Pro
3/2019
114060421
Hooklift Multilift Ultima S / SL Flex & Pro
User Manual
4
2
3
6
5
1
8
7

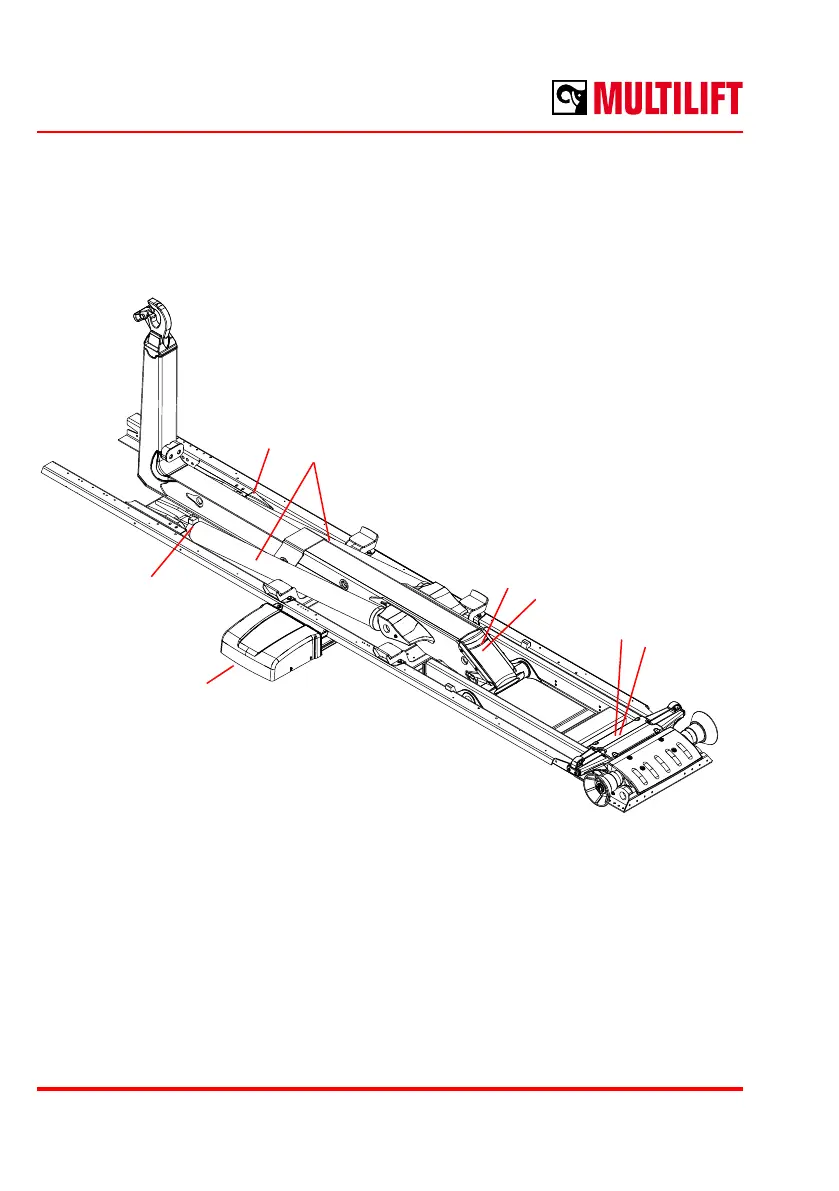

Hydraulics
1. Main cylinders
2. Sliding cylinder
3. Body locking cylinder
4. Control valve
5. Load holding valve of the main cylinder
6. Fast speed valve
7. Double check valve of the sliding cylinder
8. Locking cylinder check valve
