MULTILIFT Ultima SL Flex - Hydraulic Front Locks (Ultima S)

104
Ultima S / SL Flex & Pro
3/2019
114060421
Hooklift Multilift Ultima S / SL Flex & Pro
User Manual
� � A� B� Hook stamp
Standard� 14� 39� none
Low� � 10� 39� 10
High� � 20� 45� 20
A
B
Body level
Hook stamp
B A
>>>

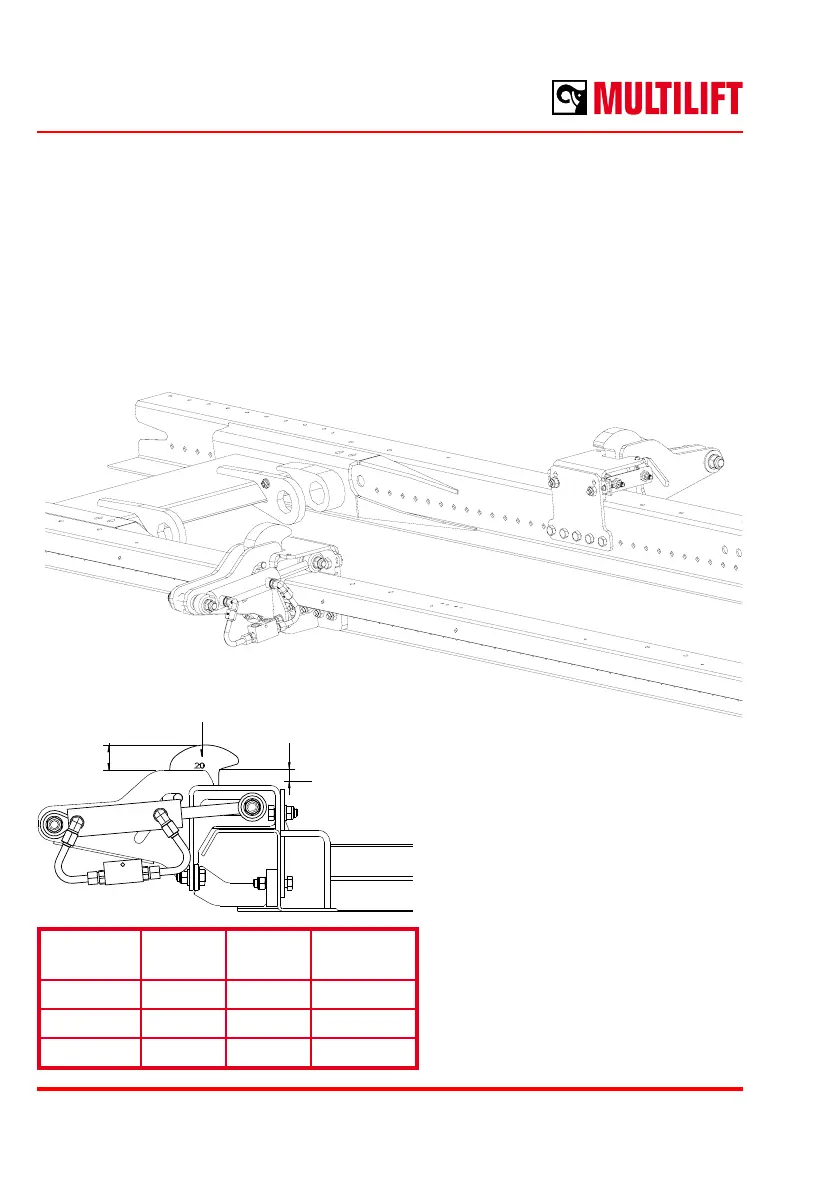

Hydraulic front locks (Ultima S)
The hydraulic front locks are located on the subframe in the front part of the device. They
lock the container through the subframe to the chassis of the vehicle.
When the front locks are closed, movements of the main cylinders and the hooking frame
are inhibited.
Hydraulic front locks
Hook stamp
Body
level
The inner height of the front lock hook
has been determined when ordering
the machinery.
Standard height A = 0.55 in (14 mm),
low A = 0.39 in (10 mm) and high A =
0.79 in (20 mm).
In the 0.39 in (10 mm) and 0.79 in
(20 mm) hooks, the hook’s height has
been stamped on the inner surface.
A
in (mm)
B
in (mm)
Hook
stamp
Standard 0.55 (14) 1.54 (39) none
Low 0.39 (10) 1.54 (39) 10
High 0.79 (20) 1.77 (45) 20
