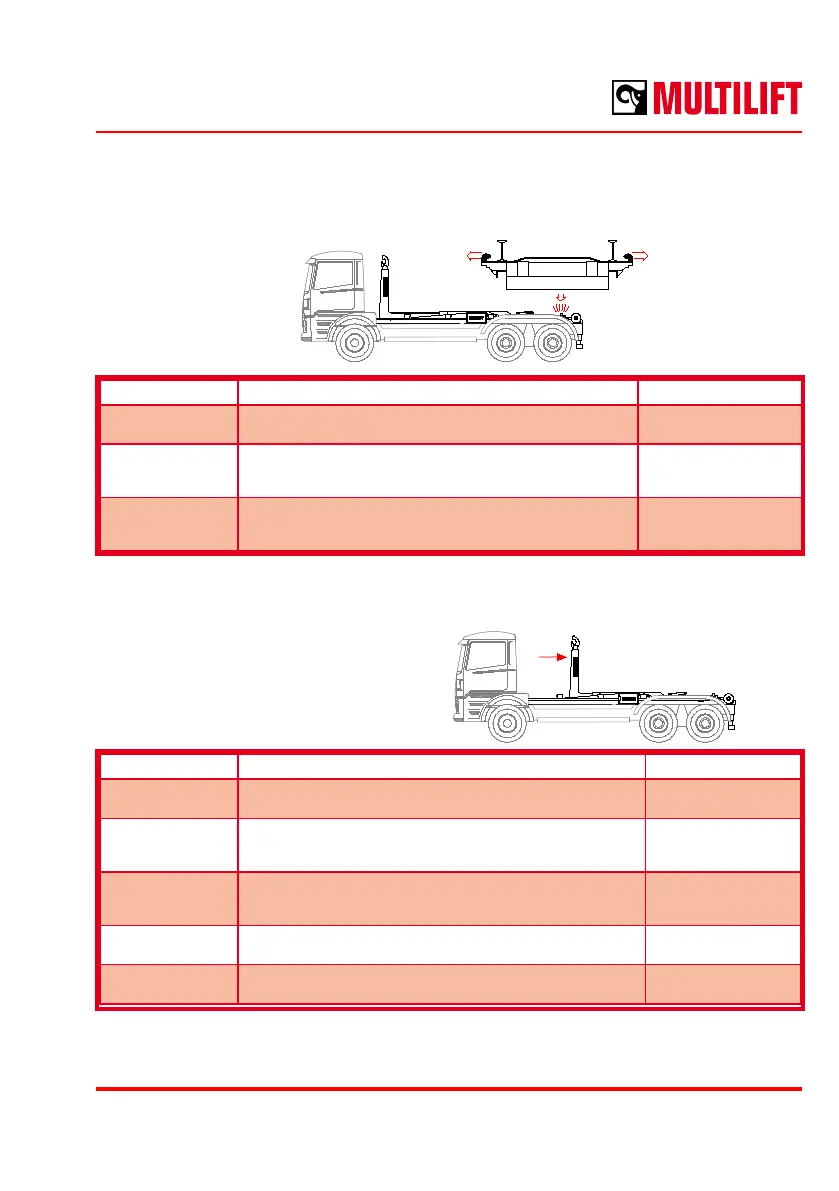

Possible safety codes in the
display when moving the hook
arm backwards
SAFETY CODE DESCRIPTION NOTE
C007, d012
REAR FRAME DOWN SENSOR (318) IS NOT ACTIVE.
CHECK THE SENSOR AND CABLE.
LOCKS CAN BE OPENED.
C008
MIDDLE FRAME NEARLY DOWN SENSOR (120) IS NOT ACTIVE
AND MIDDLE FRAME DOWN SENSOR (119) IS ACTIVE.
CHECK THE SENSOR 120 AND THE CABLE.
LOCKS CAN BE OPENED.
C009
BODY LOCKS OPEN SENSOR (316) AND BODY LOCKS CLOSED
SENSOR (317) ARE BOTH ACTIVE.
CHECK WHY SENSOR 317 IS ACTIVE.
LOCKS CAN BE OPENED.
SAFETY CODE DESCRIPTION NOTE
C007, d012
REAR FRAME DOWN SENSOR (318) IS NOT ACTIVE.
CHECK THE SENSOR AND CABLE.
HOOK ARM IS NOT
MOVING.
C009, d001
BODY LOCKS OPEN SENSOR (316) AND BODY LOCKS CLOSED
SENSOR (317) ARE BOTH ACTIVE.
CHECK WHY SENSOR 317 IS ACTIVE.
HOOK ARM IS MOVING.
d015
TIPPING LOCK CLOSED SENSOR (319) AND HOOK ARM BACK
SENSOR (320) ARE BOTH ACTIVE.
CHECK SENSOR 319 AND CABLE.
HOOK ARM IS NOT
MOVING.
d021
URB OUT SENSOR (323) IS ACTIVE.
CHECK THE SENSOR AND CABLE.
HOOK ARM IS NOT
MOVING.
d022
URB IN SENSOR (322) AND URB OUT SENSOR (323) ARE NOT
ACTIVE. CHECK SENSOR 322 AND CABLE.
HOOK ARM IS NOT
MOVING.
OPEN
SAFETY CODES BY LOADING THE CONTAINER
Possible safety codes in the display when starting the
loading function
Sensor location,
see ”Ultima S / SL
SENSORS”
in the service chapter
