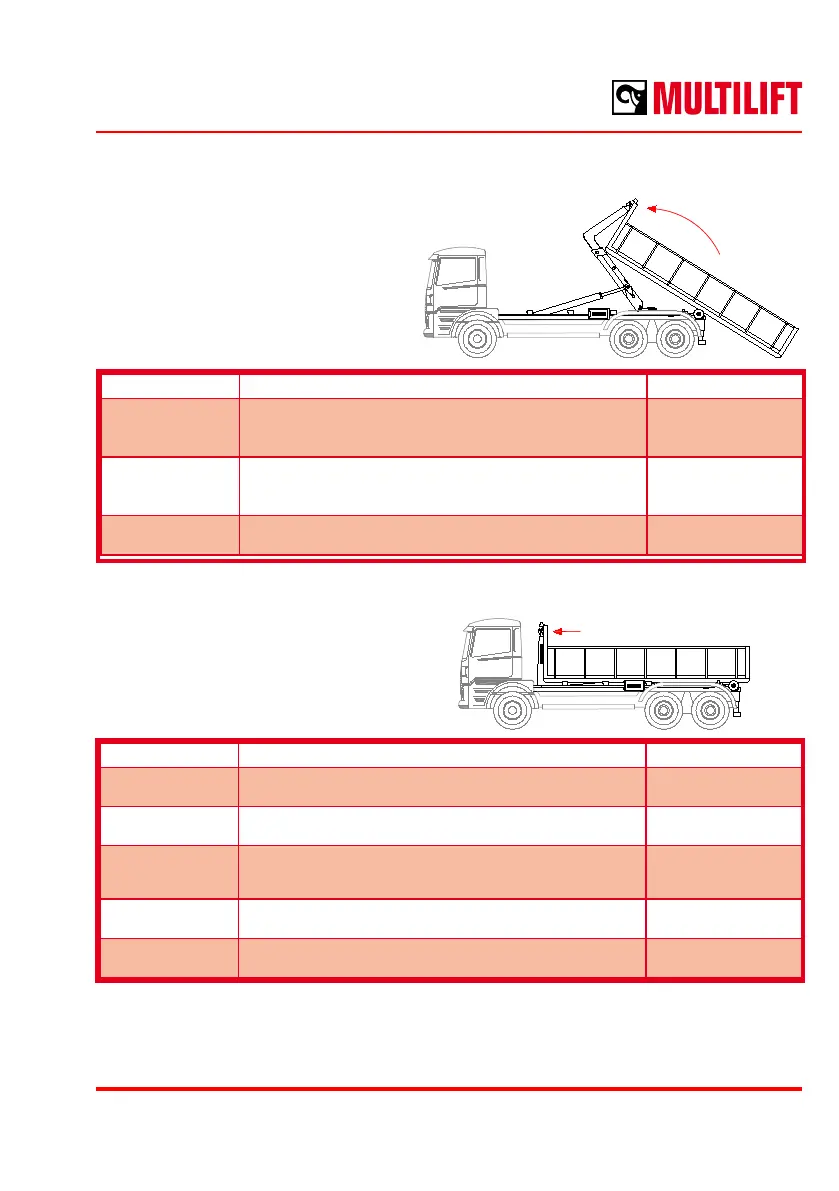

Possible safety codes in the
display when moving main
cylinders in
Possible safety codes in the
display when moving hook
arm front
SAFETY CODE DESCRIPTION NOTE
d002, d003,
d015
BODY LOCKS OPEN SENSOR (316) IS NOT ACTIVE.
CHECK THE SENSOR AND CABLE.
MAIN CYLINDERS ARE
MOVING IN.
C009, d003,
d015
BODY LOCKS CLOSED SENSOR (317) IS ACTIVE.
CHECK THE SENSOR AND CABLE.
MAIN CYLINDERS ARE
MOVING IN.
d012
REAR FRAME DOWN SENSOR (318) IS NOT ACTIVE.
CHECK THE SENSOR AND CABLE.
MAIN CYLINDERS ARE
MOVING IN.
SAFETY CODE DESCRIPTION NOTE
C007, d012
REAR FRAME DOWN SENSOR (318) IS NOT ACTIVE.
CHECK THE SENSOR AND CABLE.
HOOK ARM IS NOT
MOVING FRONT.
C008
MIDDLE FRAME NEARLY DOWN SENSOR (120) IS NOT ACTIVE.
CHECK THE SENSOR AND CABLE.
HOOK ARM IS MOVING
FRONT.
C009, d001
BODY LOCKS OPEN SENSOR (316) AND BODY LOCKS CLOSED
SENSOR (317) ARE BOTH ACTIVE.
CHECK WHY SENSOR 317 IS ACTIVE.
HOOK ARM IS MOVING
FRONT.
d001
BODY LOCKS OPEN SENSOR (316) IS NOT ACTIVE.
CHECK THE SENSOR AND CABLE.
HOOK ARM IS NOT
MOVING FRONT.
d016
PULL LIMITER SENSOR (321) IS ACTIVE.
THE CONTAINER IS IN MECHANICAL LOCKS.
HOOK ARM IS NOT
MOVING FRONT.
