MULTILIFT Ultima SL Flex - Page 70

70
Ultima S / SL Flex & Pro
3/2019
114060421
Hooklift Multilift Ultima S / SL Flex & Pro
User Manual

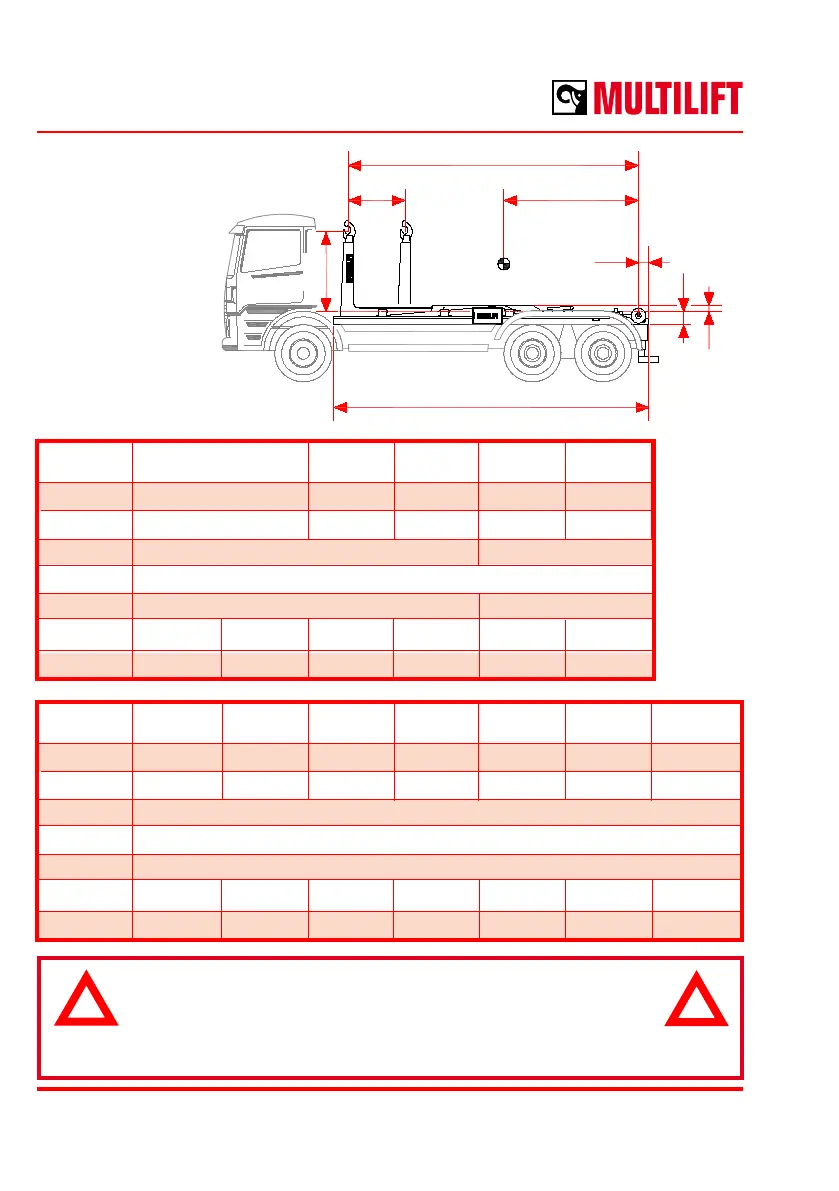

Ult. 18S 46 51 53 56 59 61
G in (mm) 180.3 (4580) 200 (5080) 211 (5360) 218.9 (5560) 230.7 (5860) 239.4 (6080)
HM in (mm) 35.4 (900) 43.3 (1100) 43.3 (1100) 51.2 (1300) 57.1 (1450) 57.1 (1450)
h in (mm) 9.06 (230) [special 9.84 (250)] 9.84 (250)
H in (mm) See table “Container country specic standard dimensions”
t in (mm) 4.92 (125) [special 4.13 (105)] 4.13 (105)
B in (mm) 96.5 (2450) 106.3 (2700) 112.2 (2850) 116.1 (2950) 118.1 (3000) 124 (3150)
SL in (mm) 209 (5308) 226.7 (5758) 256.2 (6508) 256.2 (6508) 256.2 (6508) 268 (6808)
Ult. 21S 46 51 53 56 59 61 63
G in (mm) 180.3 (4580) 200 (5080) 211 (5360) 218.9 (5560) 230.7 (5860) 239.4 (6080) 249.2 (6330)
HM in (mm) 35.4 (900) 43.3 (1100) 43.3 (1100) 51.2 (1300) 57.1 (1450) 57.1 (1450) 57.1 (1450)
h in (mm) 9.84 (250) [special 10.63 (270)]
H in (mm) See table “Container country specic standard dimensions”
t in (mm) 4.92 (125) [special 4.13 (105)]
B in (mm) 96.5 (2450) 106.3 (2700) 112.2 (2850) 116.1 (2950) 118.1 (3000) 124 (3150) 129.9 (3300)
SL in (mm) 210 (5333) 233.6 (5933) 258.4 (6563) 258.4 (6563) 258.4 (6563) 265.1 (6733) 267.1 (6783)
SL
G
B
HM
h
t
H
!
!
Ultima 18S
Ultima 21S
dimensions
WARNING!
When transporting the container in position HM,
the hooklift equipment must have hydraulic body locks.
7.9
(200)
