MULTILIFT Ultima SL Flex - Page 75

75
Ultima S / SL Flex & Pro
3/2019
Hooklift Multilift Ultima S / SL Flex & Pro
User Manual
114060421
!
!
WARNING!
When transporting the container in position HM,
the hooklift equipment must have hydraulic body locks.

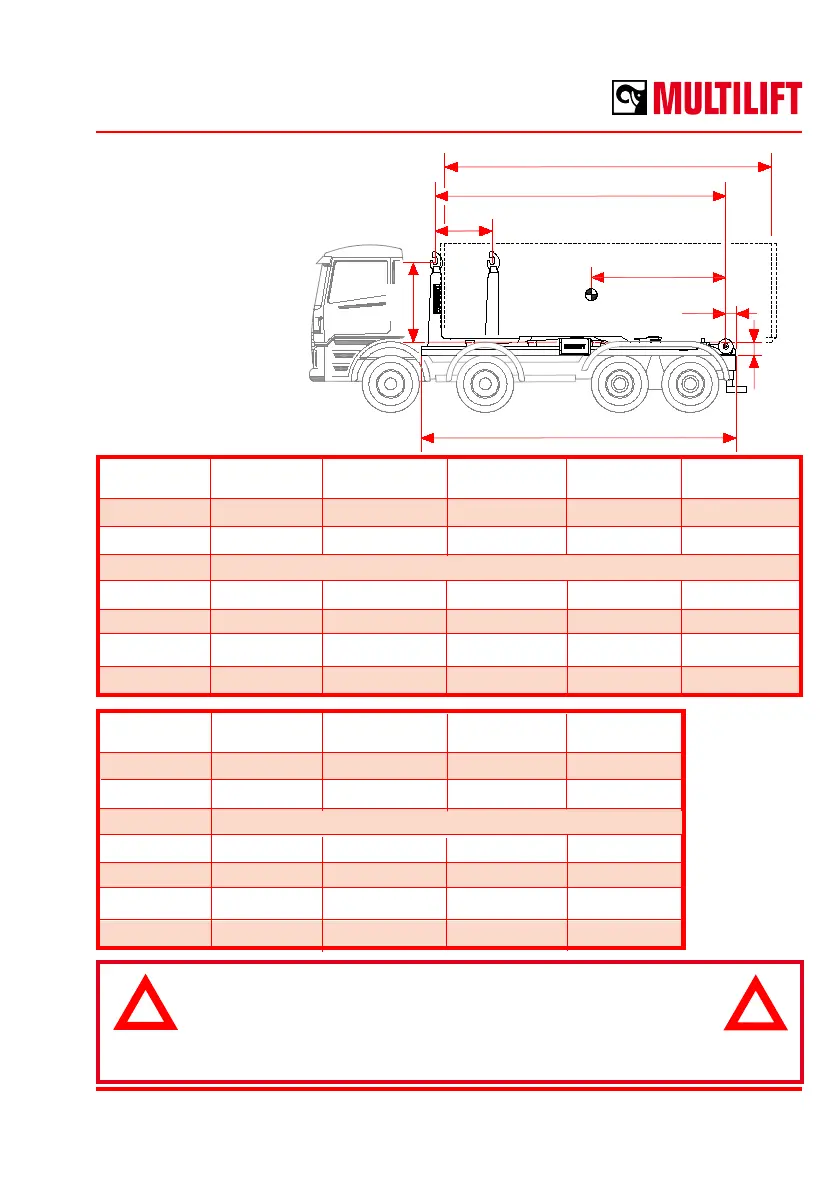

Ultima 22SL
Ultima 24SL
dimensions
4.3
(110)
7.7
(195)
SL
G
B
HM
H
LR
Ult. 22SL 53 56 58 59 61
G in (mm) 211.8 (5380) 220.5 (5600) 228.4 (5800) 232.3 (5900) 240.2 (6100)
HM in (mm) 43.3 (1100) 43.3 (1100) 45.3 (1150) 49.2 (1250) 57.1 (1450)
H in (mm) See table “Container country specic standard dimensions”
B in (mm) 124 (3150) 129.9 (3300) 133.9 (3400) 133.9 (3400) 137.8 (3500)
SL in (mm) 241.9 (6143) 253.7 (6443) 253.7 (6443) 253.7 (6443) 259.6 (6593)
LR (ft) 14.6 - 21.0 15.7 - 21.6 16.1 - 22.3 16.1 - 22.6 15.7 - 23.3
LR (m) 4.5 - 6.4 4.8 - 6.6 4.9 - 6.8 4.9 - 6.9 4.8 - 7.1
Ult. 24SL 56 58 59 61
G in (mm) 220.5 (5600) 228.4 (5800) 232.3 (5900) 240.2 (6100)
HM in (mm) 43.3 (1100) 45.3 (1150) 49.2 (1250) 57.1 (1450)
H in (mm) See table “Container country specic standard dimensions”
B in (mm) 129.9 (3300) 133.9 (3400) 133.9 (3400) 137.8 (3500)
SL in (mm) 253.7 (6443) 253.7 (6443) 253.7 (6443) 259.6 (6593)
LR (ft) 15.7 - 21.6 16.1 - 22.3 16.1 - 22.6 15.7 - 23.3
LR (m) 4.8 - 6.6 4.9 - 6.8 4.9 - 6.9 4.8 - 7.1
