MULTILIFT Ultima SL Flex - Page 90

90
Ultima S / SL Flex & Pro
3/2019
114060421
Hooklift Multilift Ultima S / SL Flex & Pro
User Manual
Ultima S
Ultima SL

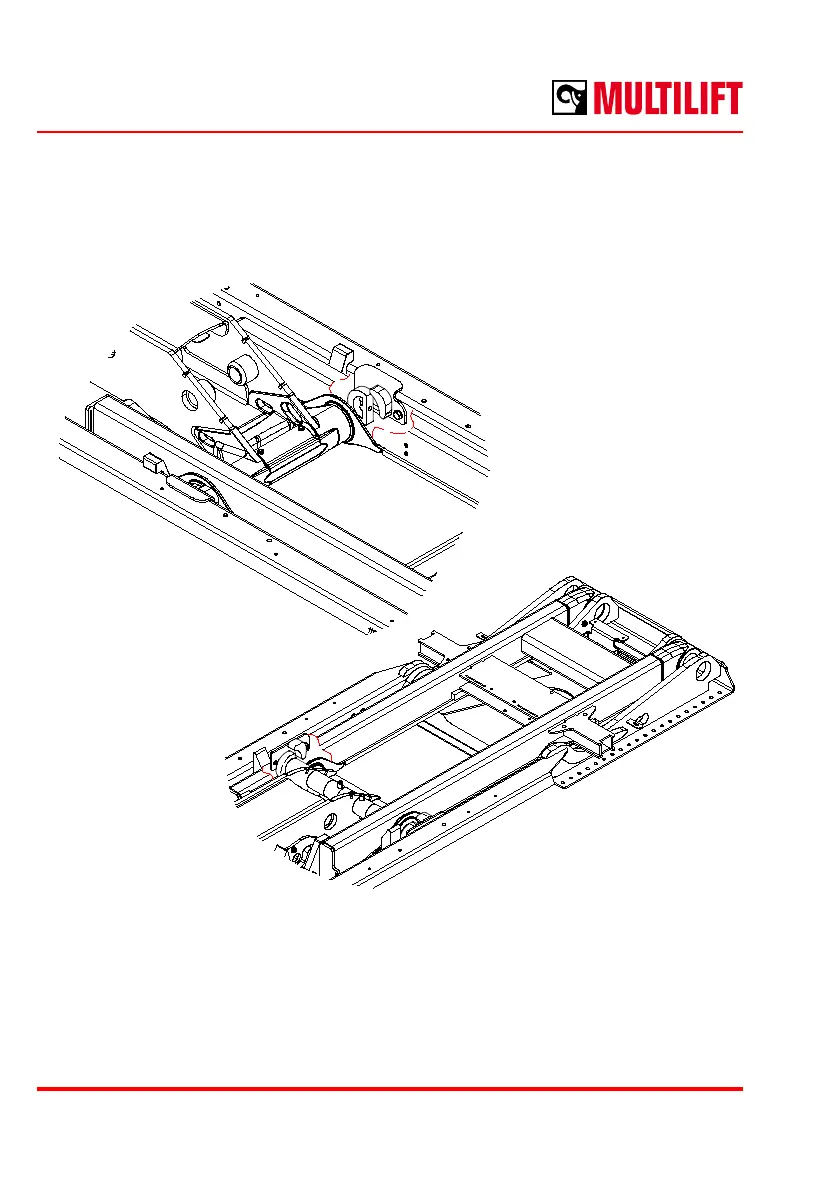

Rear frame lock (locking rear frame to auxiliary frame)
During the lowering of a container, the rear frame is mechanically locked to the auxiliary
frame when the middle frame starts to rise. The lock is achieved by the axle tip on the
middle frame, which slides under the locking stops in the auxiliary frame.
