Self-moving multipurpose loader MULTIONE
1 Series
Instruction manual (Traslation of original instructions)
CM170001EN - 01.03.17 - 03 (11.07.18)
15/49
MultiOne SRL
DESCRIPTION OF THE MACHINE -4
Ref. Name Function
8
Proportional forward and
reverse pedal
Operated with the right foot:
• Pressed “forward” (Right foot): it allows the forward movement of the machine and increases the
speed in proportion to the applied pressure produced on the same.
• Pressed “backward” (Right foot): It allows the backward movement of the machine and increases
the speed in proportion to the applied pressure produced on the same.
TAB. 4
4.4 Safety and protection devices
The safety systems adopted on the machine are the following:

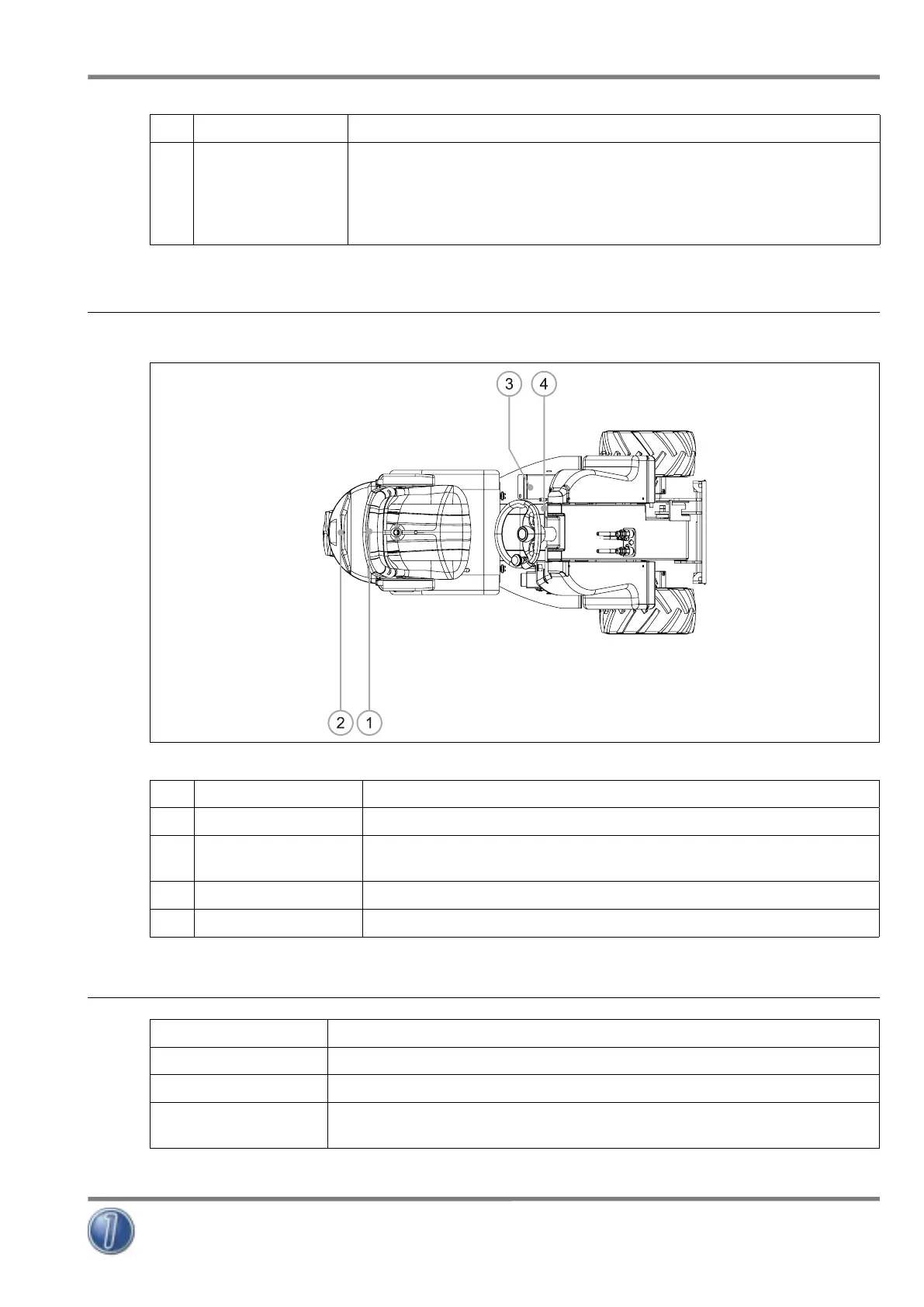

FIG. 4
TOP VIEW
Ref. Device Function
1 Lifting boom block bracket It allows to block the lifting boom in the raised position to operate maintenance (see par. 9.3).
2 Pressure relief valves
They are hydraulic valves installed in the hydraulic circuit of the machine and serve to endure that
the operating pressures never exceed the expected values (see par. 8.4).
3 Non-slip strip Placed on footrests avoid slipping of the feet.
4 Parking brake It locks the machine during the break and parking of this.
TAB. 5
4.5 Intended use
Range of applications Agriculture, gardening nurseries and gardening.
Location of use Outside the buildings, in a sufficiently lit place suitable to the laws in the country of use in safety.
Intended use The intended use is determined by the type of assembled attachment.
Operators in charge of use
Only one authorised operator qualified with the described professional technical requirements
(see par. 1.6.1).
TAB. 6
