Self-moving multipurpose loader MULTIONE
1 Series
MultiOne SRL
Instruction manual (Traslation of original instructions)
CM170001EN - 01.03.17 - 03 (11.07.18)
36/49
9- MAINTENANCE
9 MAINTENANCE
9.1 General warnings
See par. 3.4.
9.2 Safety status of the machine
The machine is in safety state when:
1) The machine is stopped not steered on firm and level ground.
2) The lifting boom is lowered and the eventual attachment on the ground.
3) The engine is off (see par. 8.3.7).
4) The controls are in the neutral position.
5) The parking brake is inserted (see par. 8.3.8).
6) The key is removed from the control panel and stored in a safe place.
9.3 Installation safety block of the lifting boom
When performing maintenance on the machine and you need to raise the lifting boom it is necessary to insert the retention bracket.
Proceed as follows:
1) Start on the machine.
2) Raise completely the lifting boom.
3) Turn off the machine (see par. 8.3.7) keeping the lifting boom raised.

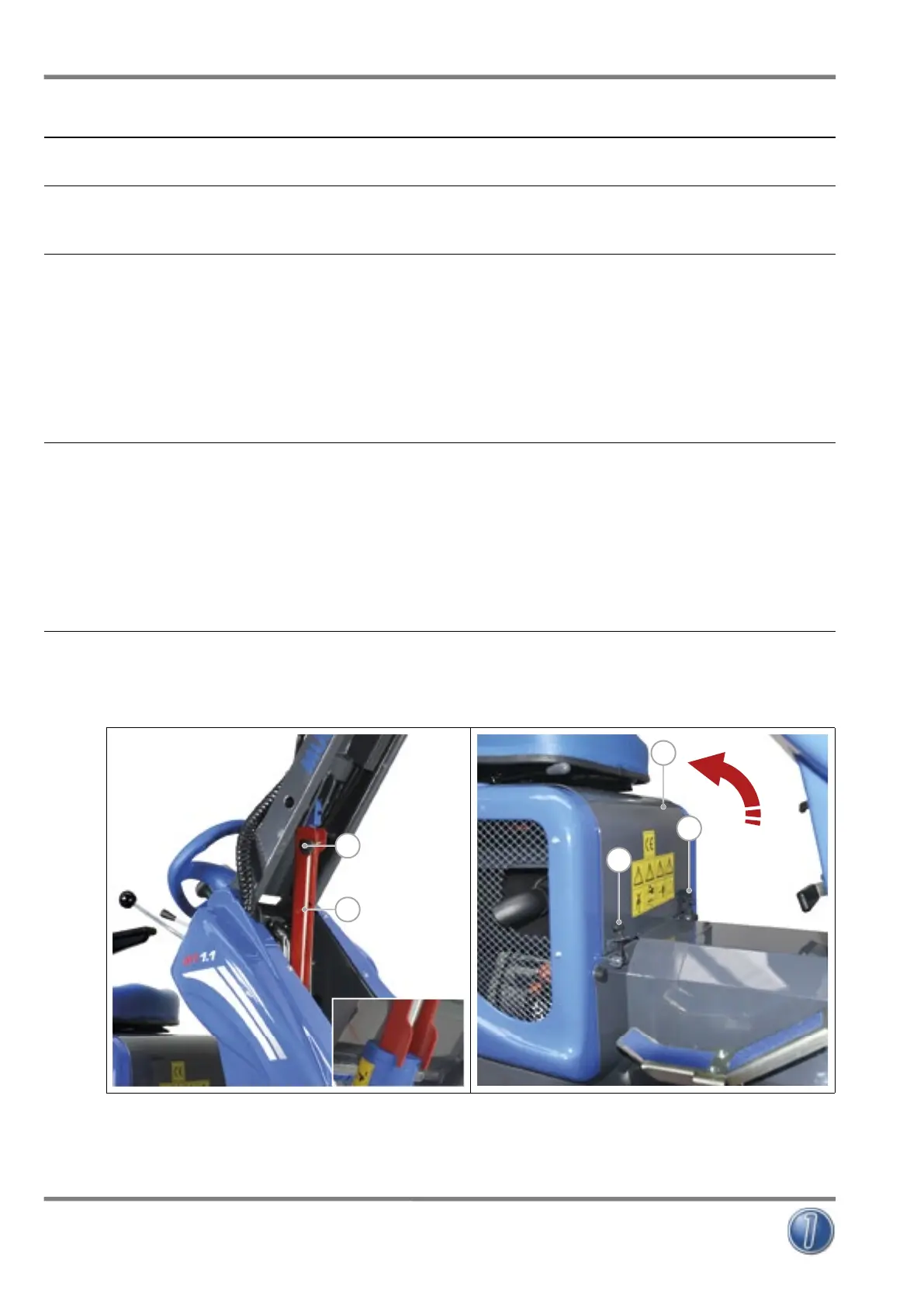

4) Insert the bracket (FIG. 18 -Ref. 1) to block the lifting boom and fix it with the appropriate knob (FIG. 18 -Ref. 2).
5) Slowly lower the lifting boom to bring the elements of the cylinder in support on the bracket.
9.4 Opening engine cover
To open the cover proceed as follows:
1) Move the seat forward.
2) Unhook the two mechanical blocks (FIG. 19 - Ref. 1) that secure the cover.
3) Rotate the cover (FIG. 19 - Ref. 2) backward.
1
2
1
1
2
FIG. 18 FIG. 19
