4 DESCRIPTION OF THE MACHINE
The machine has been planned and carried out to operate according to the type of attachment assembled in agricultural environment,
gardening in the private sector. The machine is provided with a (diesel) engine, that powers a series of hydraulic pumps.
These power an hydraulic circuit at high pressure that enables:
1) The three wheels whose the machine is equipped (each is moved by an hydraulic engine).
2) A lifting boom (in the front part of the machine).
3) The control panel is placed on the driving seat.
The steering wheel acts on the single rear wheel allowing a steering angle equal to zero, this gives the machine extreme
manoeuvrability.
4.1 Main parts and their functions

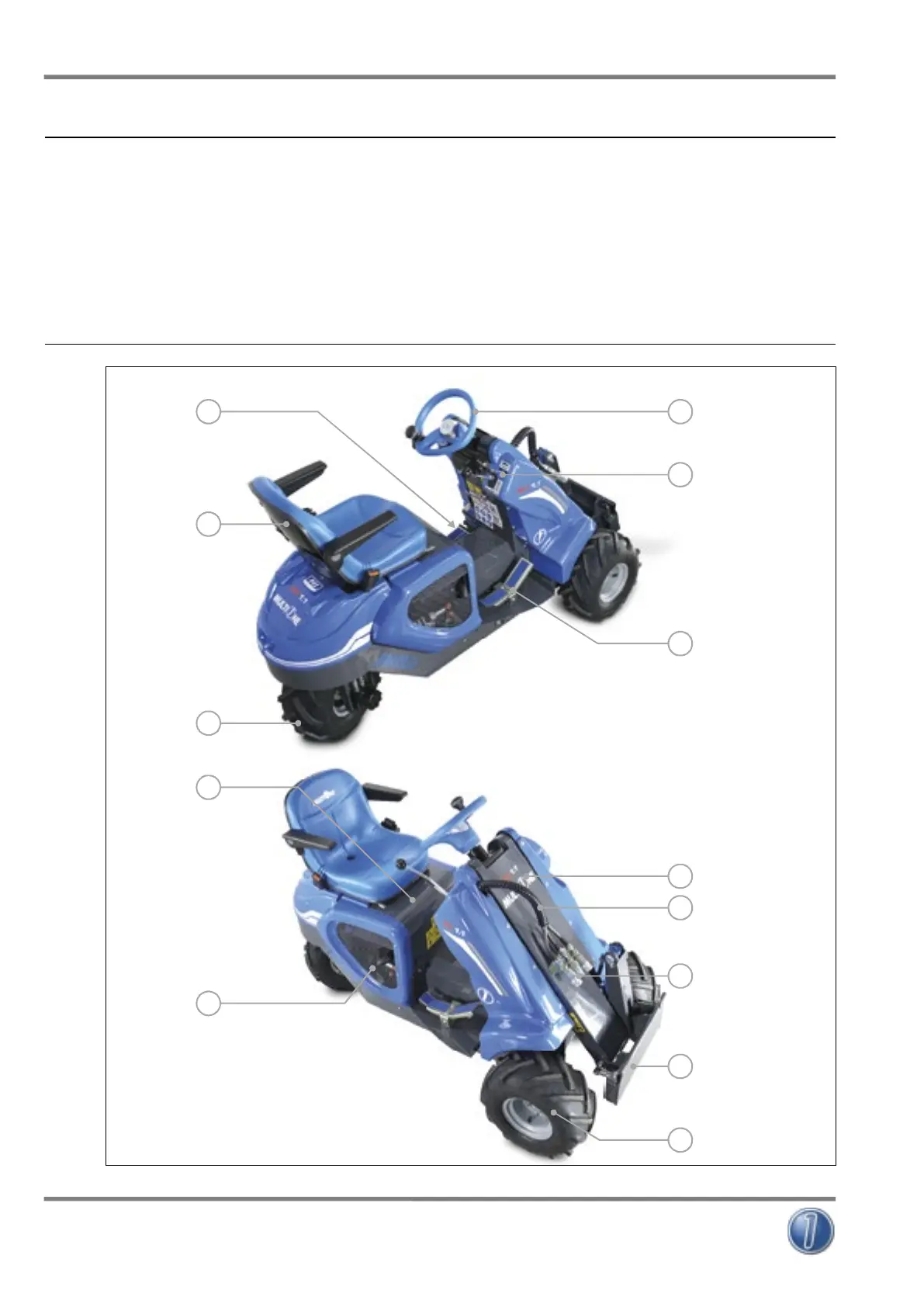

FIG. 1
1
2
3
4
5
6
8
7
9
10
11
12
13
