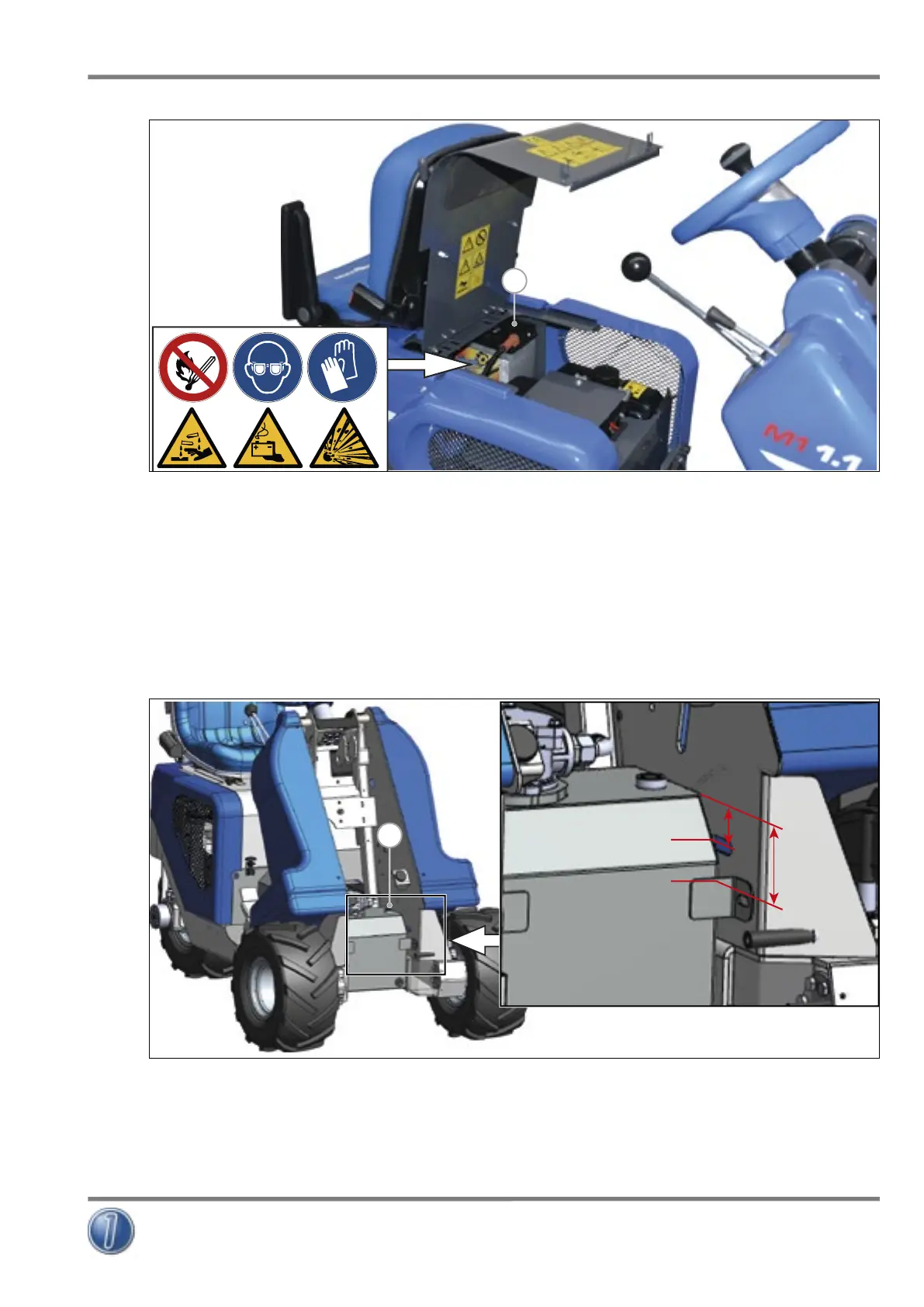

FIG. 20
1
9.7.5 Hydraulic oil level
To check the hydraulic oil level proceed as follows:
1) Raise the lifting boom.
2) Turn off the machine and secure the lifting boom in the upright position with the safety block (see par. 9.3).
3) Remove the cap of the hydraulic oil tank (FIG. 21 - Ref. 1).
4) Using the dip stick, check the hydraulic fluid level in the tank. The level should be in the normal operating range between 5 and
10 cm from the top of the tank (see FIG. 21).
5) If needed, add the appropriate type of hydraulic fluid: 0280 PAKELO HYDRAULIC EP AL ISO 46.
FIG. 21
MAX
1
5 cm
MIN
10 cm
