Self-moving multipurpose loader MULTIONE
1 Series
MultiOne SRL
Instruction manual (Traslation of original instructions)
CM170001EN - 01.03.17 - 03 (11.07.18)
14/49

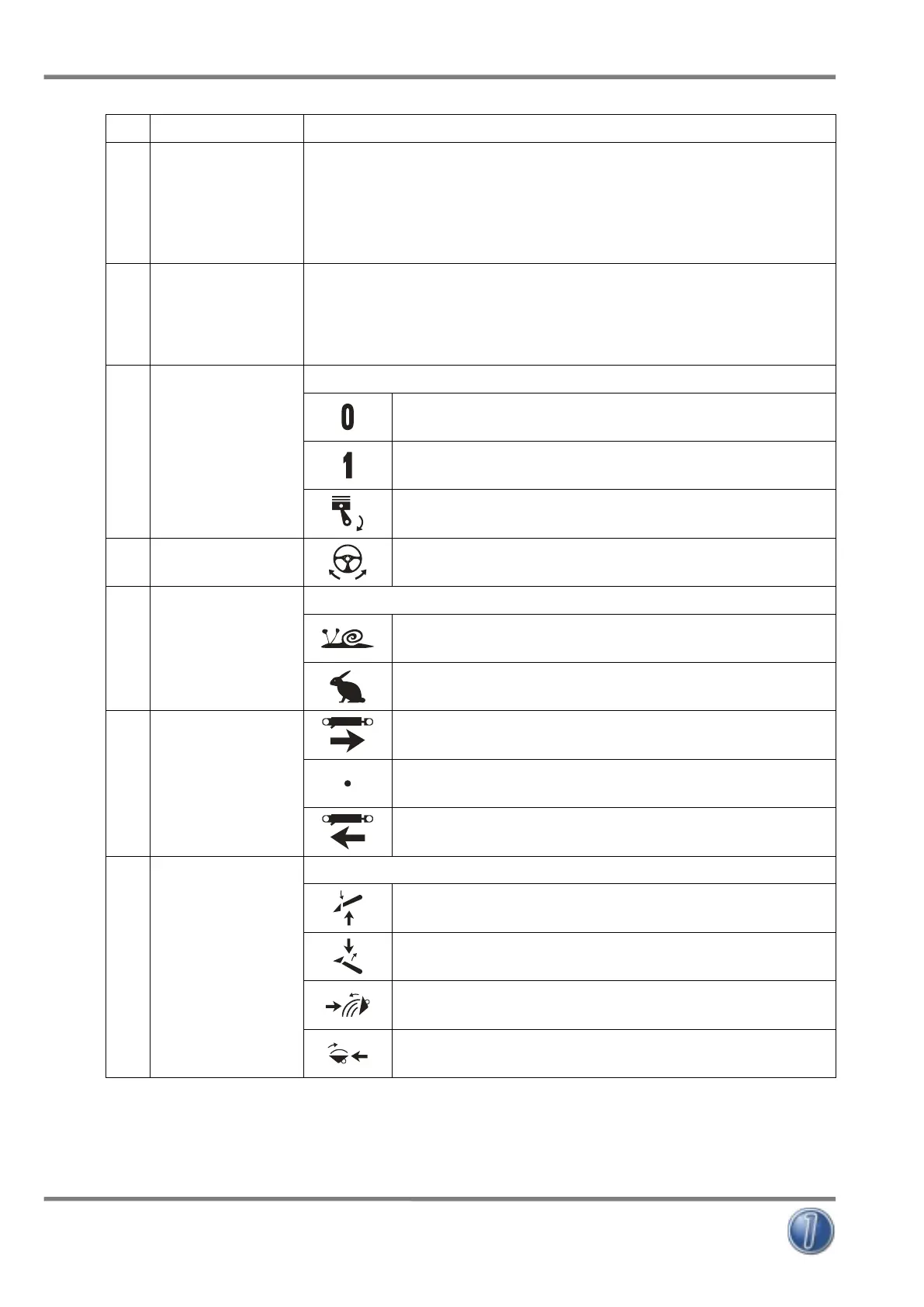

4- DESCRIPTION OF THE MACHINE
Ref. Name Function
1 Parking brake lever
It is used to block the machine during the parking and the waiting. The brake is of a Pin Lock type and
it operates only on the front wheels. It can be inserted only with the machine stopped.
• Pos. “Down”: brake off.
• Pos. “Up to right”: brake engaged and blocked.
N.B.: the brake is correctly inserted when the noise of the insertion click is heard
(see par. 8.3.8).
2
Control lever DBS
(Dinamic Block System)
It allows the wheels to turn all at the same speed or at different speeds. It can be inserted with the
machine in motion or stopped.
• Pos. “Vertical”: all the wheels turn at the same speed and the maximum traction is obtained.
• Pos. “Horizontal”: the wheels are free to turn at different speeds when steering and damaging the
work surface is avoided.
3 Ignition key
By Key on and turned to the right carries out respectively:
• Pos. “0”: machine off.
• Pos. “1”: electric power supply.
• Pos. “2”: starting the machine.
4 Steering wheel
It allows to change direction during the machine operating. It is compulsory to carry
out the steering only when the throttle lever (Ref. 5) is in Pos. “Snail”.
5 Throttle
It regulates the engine revolutions.
• Pos. “Snail” (lever up): it lowers the engine rpm.
• Pos. “Hare” (lever down): it increases the engine rpm.
6
Control lever of hydraulic
flow of quick hydraulic
couplings
• Pos. “right”: it operates and maintains the interchangeable attachment (eg.:
maintaining closing forage forks).
• Pos. “centre”: turn off the attachment.
• Pos. “left” (maintained action): it reverses the operation of the interchangeable
attachment (eg: opening forage forks).
7 Multifunction lever
It controls the movement of the lifting boom and of the quick coupler.
• Pos. “forward” (maintained action): it lowers the lifting boom.
• Pos. “backward” (maintained action): it raises the lifting boom.
• Pos. “right” (maintained action): it inclines the quick coupler forward.
• Pos. “left” (maintained action): it inclines the quick coupler backward.
cont.
