Self-moving multipurpose loader MUL
TIONE
1 Series
Instruction manual (T
raslation of original instructions)
CM170001EN - 01.03.17 - 03 (1
1.07.18)
13
/49
MultiOne SRL

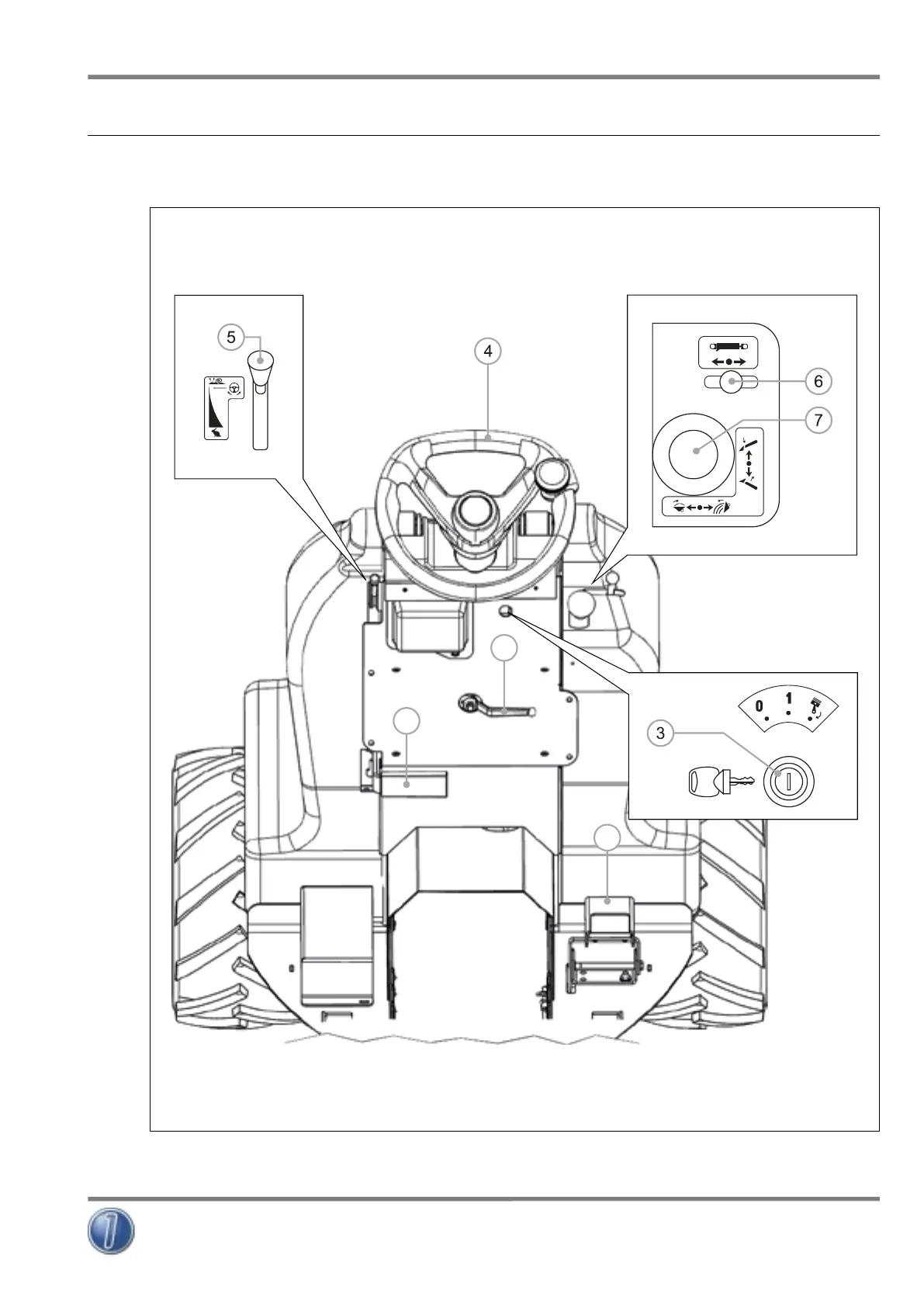

DESCRIPTION OF THE MACHINE -4
4.3
Control devices
4.3.1
Control panel
FIG. 3
1
8
2
14
16
Table of Contents
Default Chapter
3
Table of Contents
3
1 Document Identification
4
Designation
4
Identification
4
Glossary
5
Abbreviations
5
Consultation Notes
6
Receivers of the Document
7
Authorized Operators
7
Warranty
7
2 Machine Identification
8
Copy of CE Accordance Statement
8
Designation
9
3 Important Information about Safety
9
General Instructions
9
Residual Risks
9
Transport and Lifting
10
Manutenzione
11
4 Description of the Machine
12
Main Parts and Their Functions
12
Seats Taken by Authorised Operators
14
Control Devices
15
Control Panel
15
Safety and Protection Devices
17
Intended Use
17
Use Limits and Technical Data
18
Machine
18
Engine
18
Load Diagram
19
Hydraulic Flow/Engine Speed Diagram
20
Reasonable Foreseeable Misuse
20
Safety Signs
21
Emissions
25
Sound Level
25
Vibrations
25
Personal Protective Equipment
25
5 Transport and Handling
26
Transport
26
Lifting
26
Handling
26
Storage
26
6 Assembly and Installation
27
Assembly
27
Options
27
Attachments
27
Available Attachments
27
Assembly of the Attachments
27
7 Pre-Start Inspection
28
8 Operation
28
Adjustments
28
Adjustment of the Driving Seat
28
Checks before Ignition
29
Normal Operations
29
Getting on the Machine
29
Starting up
30
Handling
31
Assembly of the Attachment
31
Disassembly of the Attachment
33
Use of the Attachment
33
Turning off the Machine
34
Parking Brake
34
Refuelling
35
Functions/Exceptional Situations
35
Instability of the Machine
35
Overpressure in the Hydraulic Circuit
35
Loss of Control
36
Block Machine with the Lifting Boom Raised
36
Towing the Machine on
36
Jump Start
37
9 Maintenance
38
General Warnings
38
Safety Status of the Machine
38
Installation Safety Block of the Lifting Boom
38
Opening Engine Cover
38
Ordinary Maintenance
39
Scheduled Maintenance
39
Interventions on the Machine
40
Cleaning of the Machine
40
Check Tyres Pressure
40
Check Structural Integrity and Tightening Bolts
40
Battery Check
40
Hydraulic Oil Level
41
Hydraulic Oil Filter Change
42
Hydraulic Oil Change
43
Greasing Points
44
Engine Maintenance
46
Check Engine Oil Level
46
Air Filter Check
47
Troubleshooting
48
10 Spare Parts
48
Filter Code
48
11 Annex
49
Tyres Pressure
49
Warranty Terms
50
General Rules
50
Scheduled Maintenance
50
Exclusion of Warranty
50
Warranty Expiration
50
Notes
50
4
