Self-moving multipurpose loader MULTIONE
1 Series
Instruction manual (Traslation of original instructions)
CM170001EN - 01.03.17 - 03 (11.07.18)
31/49
MultiOne SRL
WARNING
CHECK THE ATTACHMENT MANUAL RESPECT TO THE HYDRAULIC CONNECTIONS.
CONNECTIONS MUST BE CARRIED OUT AFTER MECHANICALLY ATTACHED ATTACHMENT.
ONCE MADE THE CONNECTIONS YOU MUST CHECK THAT THE MOVING PARTS OF THE ATTACHMENT MOVE IN THE CORRECT
WAY. IF NOT, YOU MUST REVERSE THE CONNECTION OF HYDRAULIC HOSES.

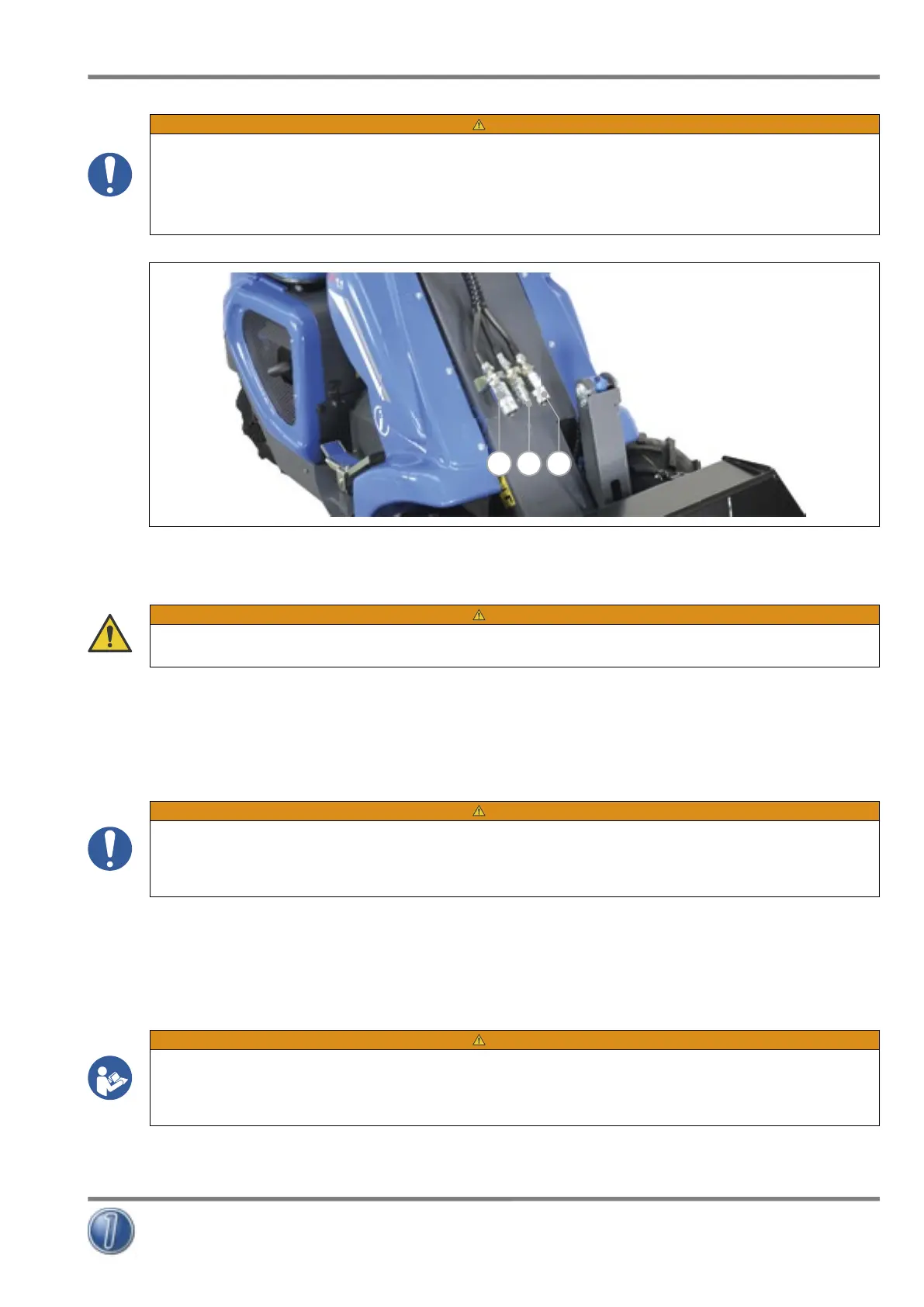

FIG. 13
21 1
8.3.5 Disassembly of the attachment
WARNING
THERE ARE RESIDUAL RISKS N. 1, N. 2 AND N. 3 (SEE PAR. 3.2).
To disassembly the attachment proceed as follows:
1) Place the attachment on firm ground.
2) Turn off the machine (see par. 8.3.7).
3) Operate the lever of the flow of the quick couplings (FIG. 11 - Rif. 1) moving it to the Right and to the Left to release the residual
pressure in the hydraulic circuit.
4) Disconnect the hydraulic hoses, if necessary.
WARNING
CHECK THE ATTACHMENT MANUAL WITH REGARDS TO HYDRAULIC CONNECTIONS.
THE HYDRAULIC HOSES MUST BE DISCONNECTED BEFORE DISASSEMBLYING MECHANICALLY THE ATTACHMENT.
5) Rotate down the two levers (FIG. 12 - Ref. 3) from the quick coupler in order to disengage the two plugs.
6) Turn on the machine (see par. 8.3.2).
7) Move to the right the multifunction lever in order to rotate forward the quick coupler of the machine.
8) Move forward the multifunction lever in order to lower the lifting boom and disassembly the attachment.
8.3.6 Use of the attachment
WARNING
TO USE THE ATTACHMENT PLEASE REFER TO THE INSTRUCTION ATTACHMENT MANUAL.
YOU MUST KEEP THE ATTACHMENT ASSEMBLED TO THE MACHINE MORE CLOSED AS POSSIBLE TO THE GROUND WHEN
MOVING.
OPERATION -8
