9.8.2 Air filter check
To check the air filter, proceed as follows:
1) Put the machine in “safety state” (see par. 9.2).
2) Wait until the engine has cooled down.
3) Open the engine cover (see par. 9.4).
4) Loose the fastener (FIG. 26 - Ref. 1) that secure the air filter cover.
5) Remove the air filter cover (FIG. 26 - Ref. 2).
6) Loose the fastener (FIG. 26 - Ref. 3) that secures the air filter.
7) Remove the air filter (FIG. 26 - Ref. 4) and the pre-filter (FIG. 26 - Ref. 5).
8) Check the air filter and the pre-filter, if cleaning is needed do it with low pressure air jets or replace with new genuine spare parts.
9) Reinstall the air filter (FIG. 26 - Ref. 4) and secure it with the fastener (FIG. 26 - Ref. 3).
10) Insert the pre-filter (FIG. 26 - Ref. 5) on the air filter (FIG. 26 - Ref. 4).
11) Reinstall the air filter cover (FIG. 26 - Ref. 2) and secure it with the fastener (FIG. 26 - Ref. 1).

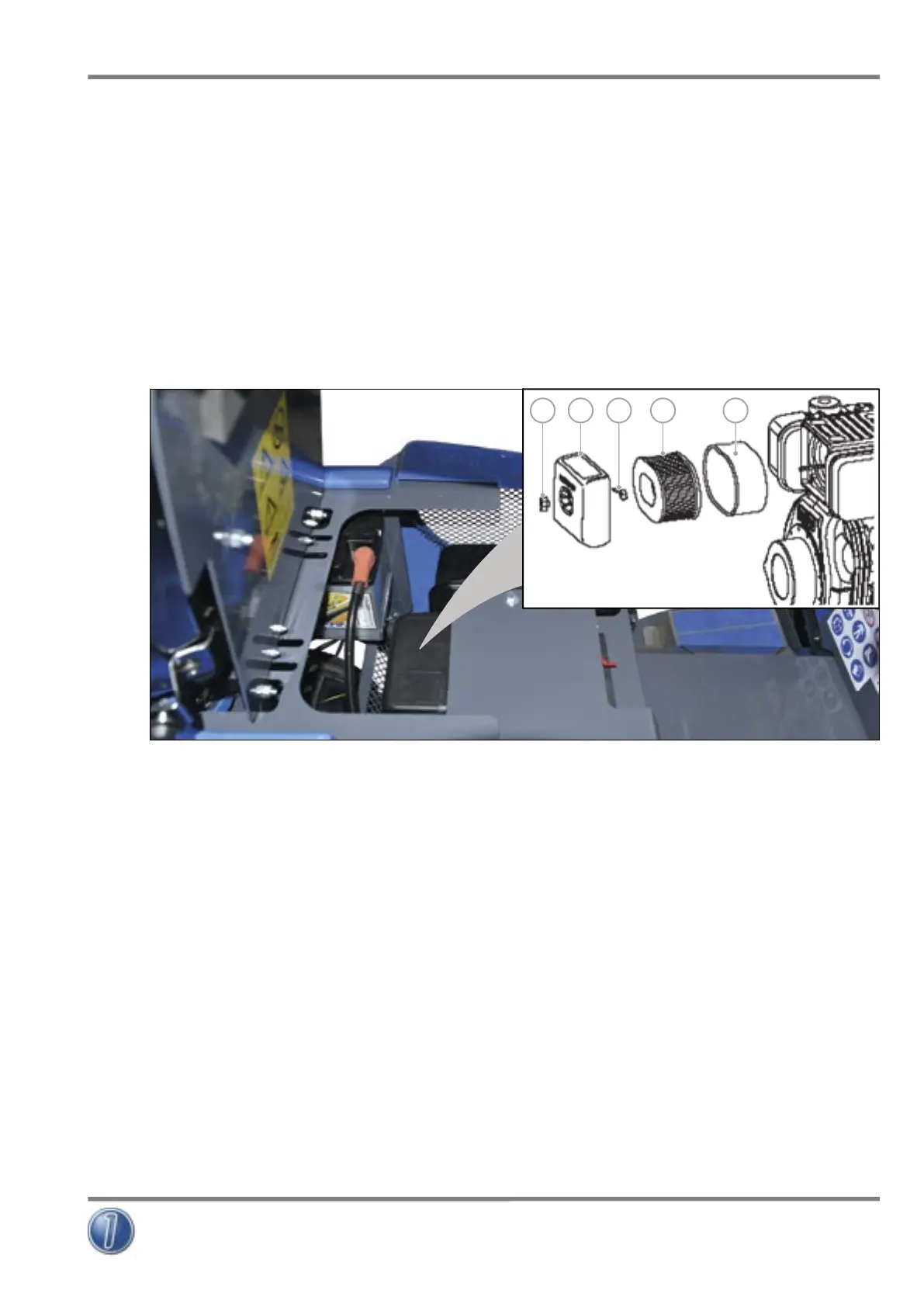

FIG. 26
1 2 3 4 5
MAINTENANCE -9
