8.3.7 Turning off the machine
To turn off the machine proceed as follows:
1) Stop the machine straight and not turning.
2) Lower the lifting boom and/or put the assembled attachment on the ground.
3) Set to the MIN. the throttle lever, Pos. “snail”.
4) Put the key in Pos. “0”.
5) Insert the parking brake (see par. 8.3.8).
6) Release the pressure of the hydraulic system as described at par. 8.3.4.2.
7) Put in Pos. “Centre” the hydraulic flow control lever (FIG. 11 - Rif. 1).
8) Remove the key from the control panel and store it in a safe place.
8.3.8 Parking brake
DANGER
IT IS FORBIDDEN TO INSERT THE PARKING BRAKE WHEN THE MACHINE IS NOT STOPPED.
To insert the parking brake proceed as follows:
1) Pull the parking brake lever (FIG. 14 - Rif. 1) upward and lock it by pushing it to the right.
2) Inserting the brake it is necessary to hear the click insertion.
3) Move slightly the machine back and forth to cause the blocking of the wheels.
To disengage the parking brake proceed as follows:
1) Unlock the parking brake lever (FIG. 14 - Rif. 2) by moving it to the left and down.
2) Move slightly the machine back and forth to cause the unlocking of the wheels.

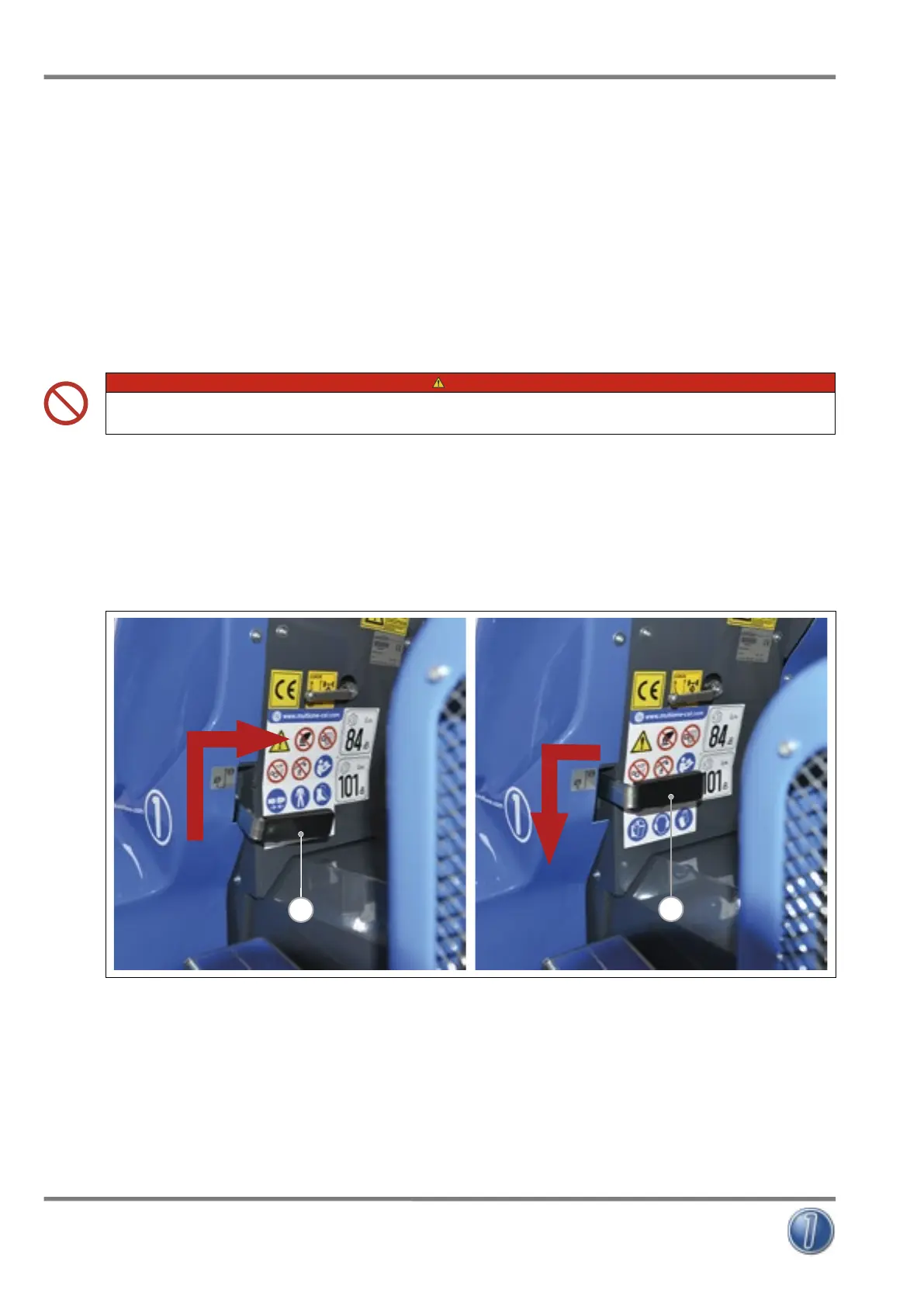

FIG. 14
1
2
