MTQ-MNG6-B02 Device Guide 9
Category Description
EMC and Radio
Compliance
FCC Part 15 Class B
FCC Part 22H, 24E, 27, 90
IC Class B
CE Mark, RED (EU)
RCM
UKCA
Safety Compliance UL 62368-1
cUL 62368-1
IEC 62368-1
Network Compliance PTCRB
Carrier AT&T/Verizon/T-Mobile (pending)
Note:
The battery management circuit is designed for single cell Li-Ion/Li-Poly technology. Acceptability of
the battery charge circuit for charging specific batteries/cells is to be determined in the end product.
Acceptability of the battery charge circuit for charging specific batteries/cells is to be determined in
the end product.
Radio performance may be affected by temperature extremes. This is normal.
Device has been tested up to +85° C. UL Recognized @ 85° C.

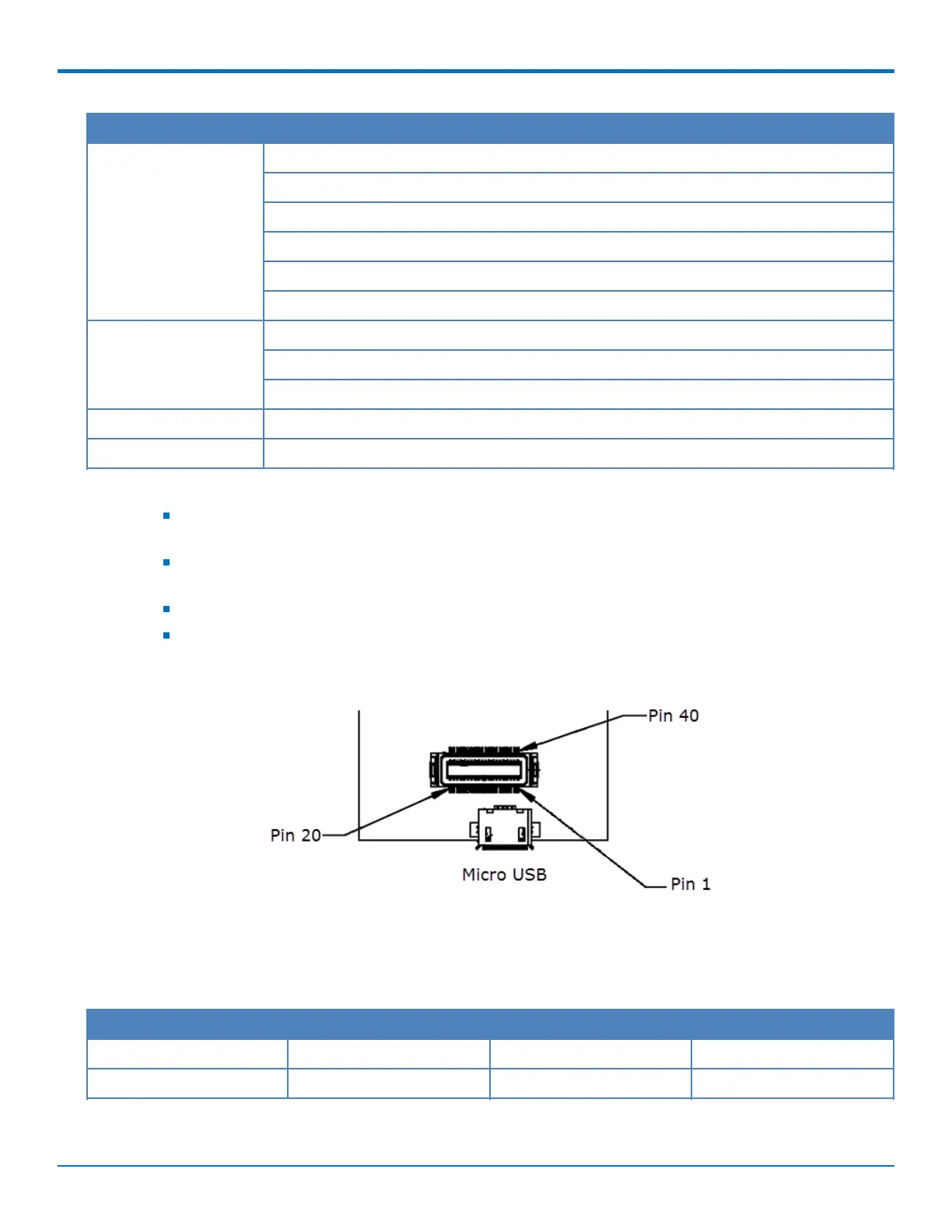

40-Pin Connector Definitions
Pin Minimum and Maximum Voltage
Unless otherwise specified in the Pin Definitions table:
Minimum High Voltage Maximum Low Voltage Maximum Input
Serial Input Signals 2.0V 0.8V 6.5V
Serial Output Signals 2.4V 0.55 --
