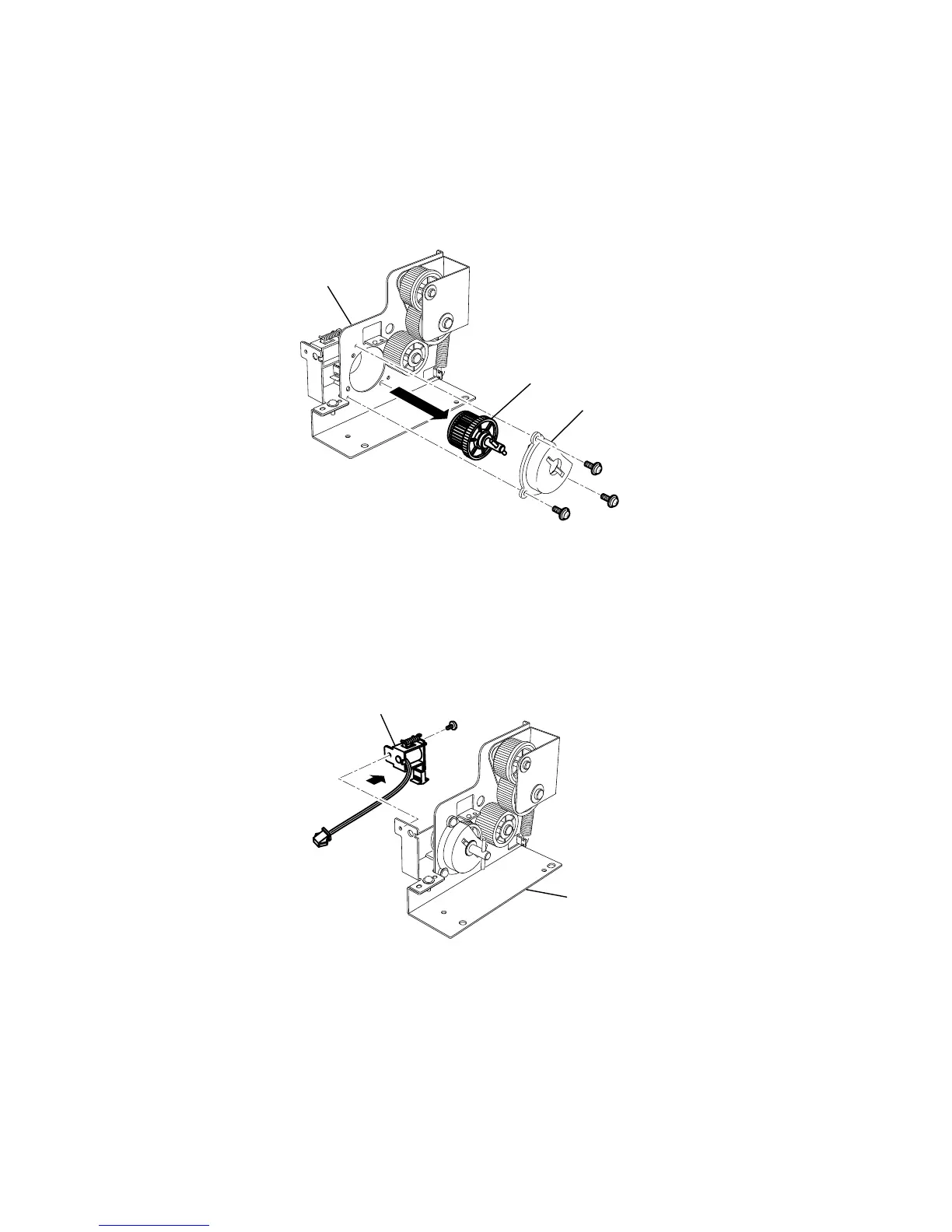

SPRING CLUTCH (2nd CST)
1. Separate the Chassis cassette 2nd from the Main frame.
2. Pull out the Cassette 2nd.
3. Remove the Roller feed 2ND. (See page 5-56)
4. Remove the Plate frame B. (See page 5-57)
5. Remove three Holder gear 2ND mounting screws, and then remove the Holder gear 2ND.
6. Remove the SPRING CLUTCH.
Holder gear 2ND
Spring clutch
Plate frame B
SOLENOID (2nd CST)
1. Separate the Chassis cassette 2nd from the Main frame.
2. Pull out the Cassette 2nd.
3. Remove the Roller feed 2ND. (See page 5-56)
4. Remove the Plate frame B. (See page 5-57)
5. Remove the Solenoid mounting screw, and then remove the SOLENOID.
Solenoid
Plate frame B
