Manual Cube67+ | System Manual
10
1. Description of the Cube67+ System
The Cube67+ system is based on Cube67 and features a more comprehensive functional range.
The purpose of the Cube67+ system is to decentrally combine the signals of the I/O level and provide
this information via the field bus network (e.g. Profibus). The central unit is the Cube67+ bus node that
connects the Cube67+ I/O modules to the fieldbus.

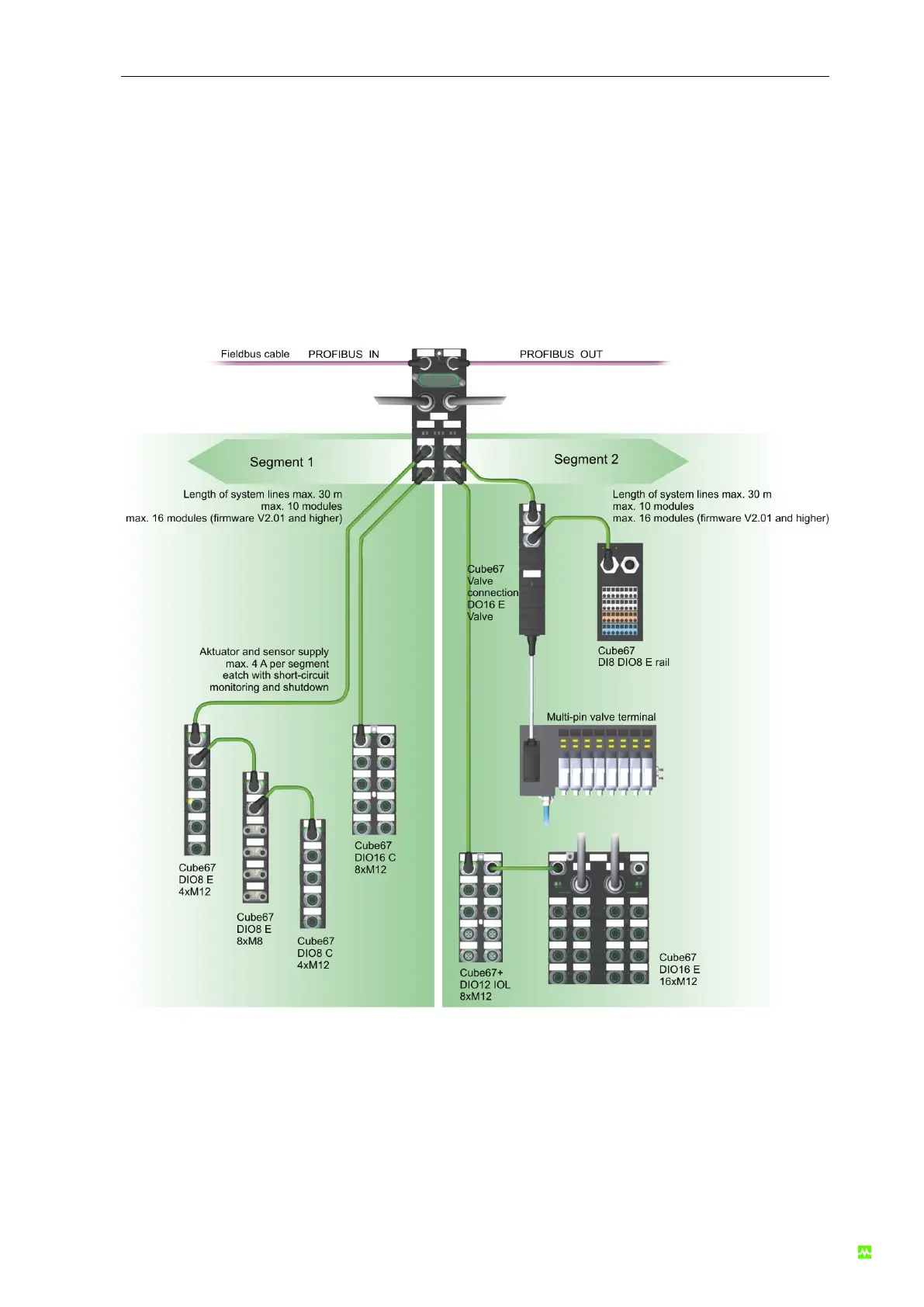

Fig. 1: The Cube67+ System
