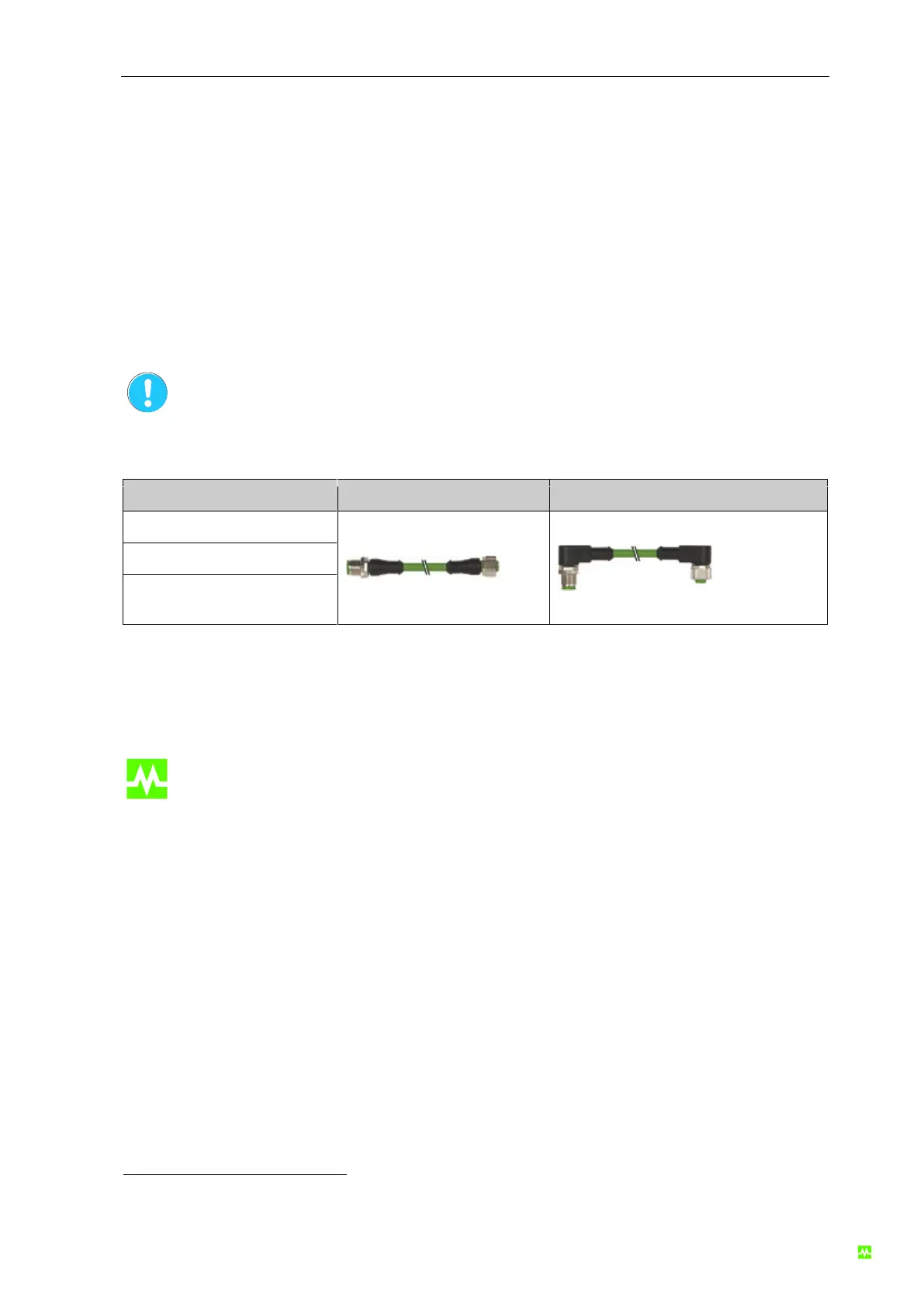

3.1.5 Internal system connection – hybrid line
The green system cable is a shielded hybrid cable for the
- communication between bus node and I/O modules.
- Transfer of sensor supply.
1
,
- Transfer of actuator supply.
Use only our pre-wired connectors for the internal system connection.
Length
straight - straight
90° – 90°
0,3 m
0,6 m
1,0 m … 10,0 m
Steps: 0,5 m
Tab. 3: Internal system connection – hybrid line
Information on hybrid lines is available in our catalog and our online shop at:
onlineshop.murrelektronik.com
1
The supply voltage of the Cube67 I/O modules is taken from the sensor supply.
