MUSTOOL MDS8207 User Manual

14

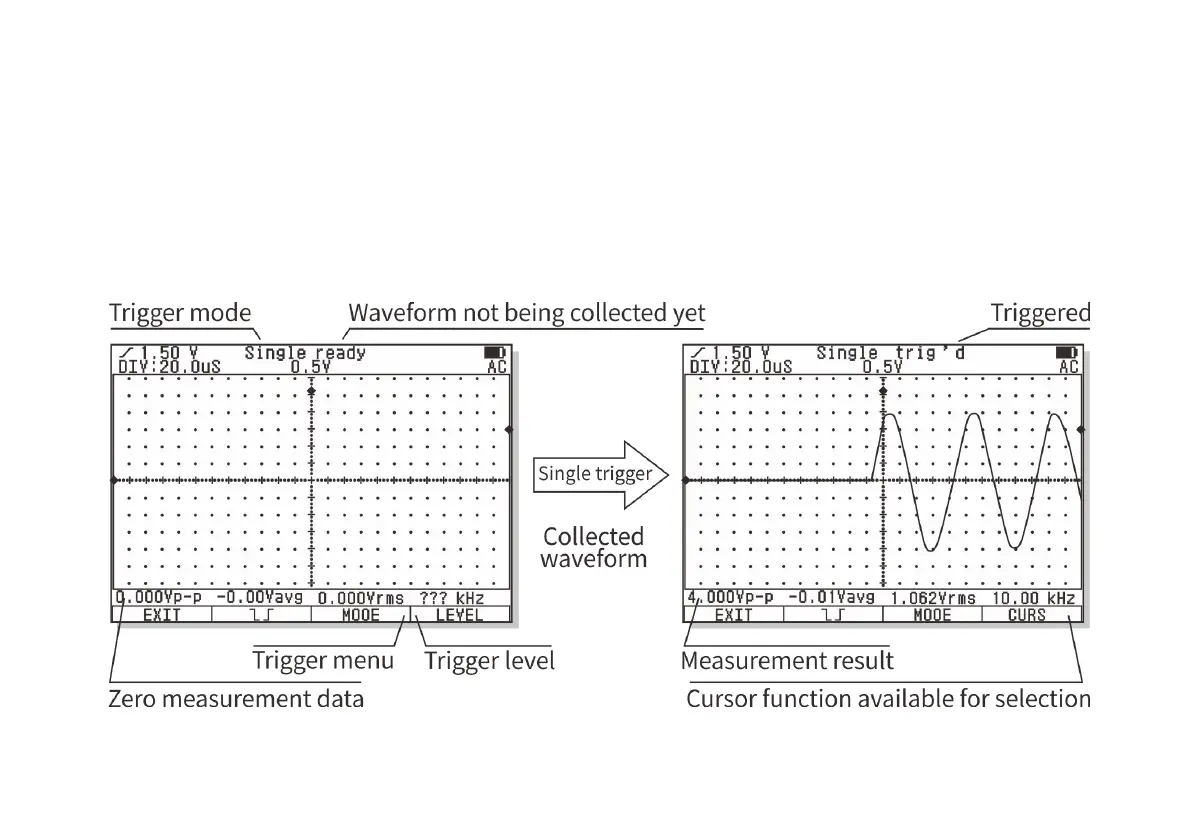

Trigger operations of single scan
The data collection of single trigger is carried out in the following steps:
1. Adjust the vertical amplitude V/div and horizontal amplitude to adapt to the waveform to be collected.
2. Select appropriate trigger level, gradient and then select single trigger mode.
3. Once signals are appeared, the scopemeter will be triggered to capture the signals.
