Capacitor measurement
Warning!
To avoid electricity shock, please do not test the capacitor with load of voltage.
1. Plug the banana plug of the black test line into the negative COM
socket
2. Plug the banana plug of the red test line into the positive CAP socket.
3. Rotate the rotary knob to select “ ” measurement function. Then,
a sign of “RESISTANCE” will appear on the top of the screen to
remind user that the function of resistance measurement is currently
available.

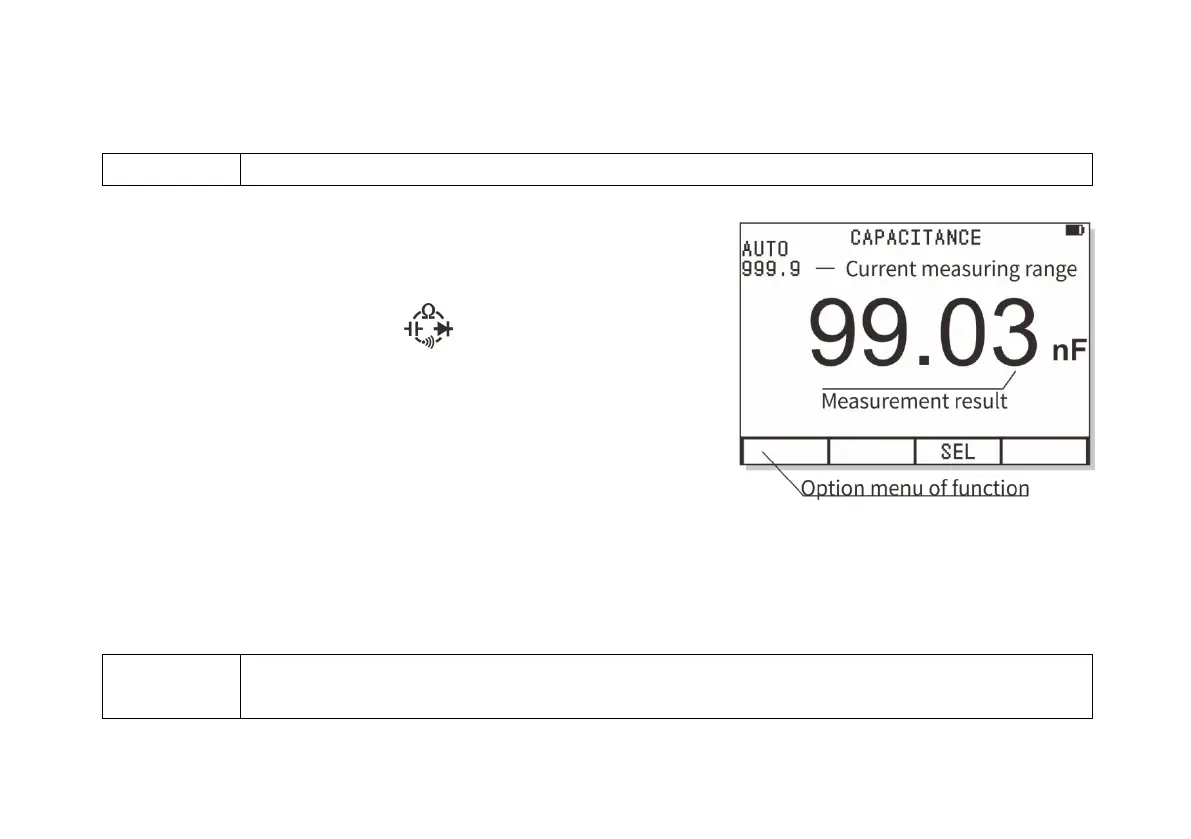

4. Press F3 button (SEL) to select the function of capacitor
measurement. Then, a sign of “CAPACITANCE” will appear on the top
of the screen to remind user that the function of capacitor measurement
is currently available.
5. For capacitor measurement, the measuring range mode can only be automatic mode.
6. Use the test lead to touch the capacitor to be tested and read the capacitance, decimal point and unit etc.
Attention!
Manual measuring range cannot be adopted for the function of capacitance measurement and the
function of relative value (REL) and Peak value holding shall not be used either.
