VJ-1638/1638W OPERATION MANUAL ERRATA
October 2012
VJ1638xE-A-01c 11 MUTOH INDUSTRIES LTD.

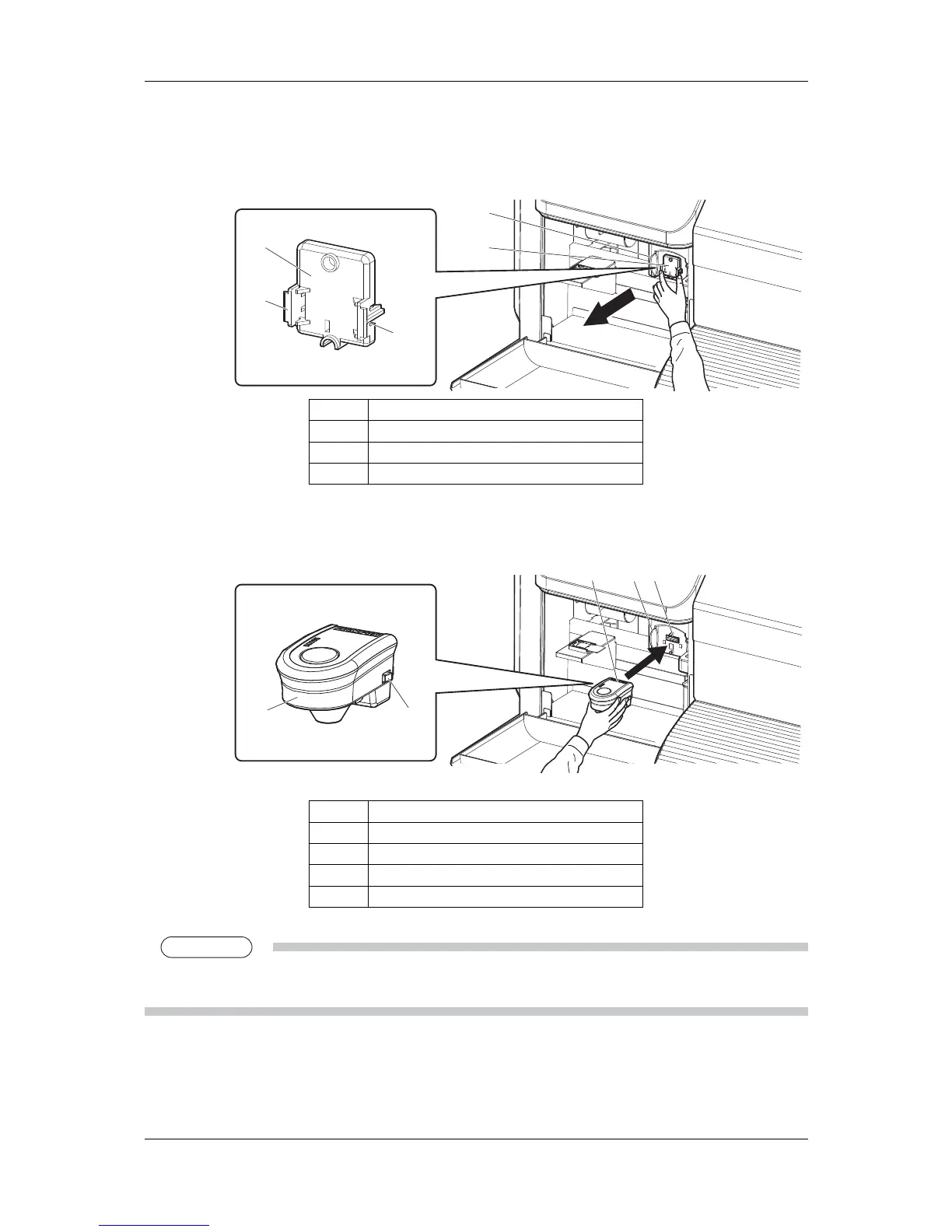

11. Firmly pinch the tabs on both sides of the connector cap with your fingers, pull the connector
cap forward to remove it from the print head.
1
1
2
2
3
No. Name
1 Connector cap
2 Tabs
3 Print head section
12. Press the release buttons on both sides of spectrophotometer, install it to the connector at the
print head.
4
1
1
2
3
No. Name
1 Spectrophotometer
2 Release buttons
3 Print head section
4 Connector
NOTE
NOTE
 Make sure that spectrophotometer is NOT installed at an angle, and that there is no gap between the
connector and spectrophotometer.
